Instrument Panel/Meter: Components

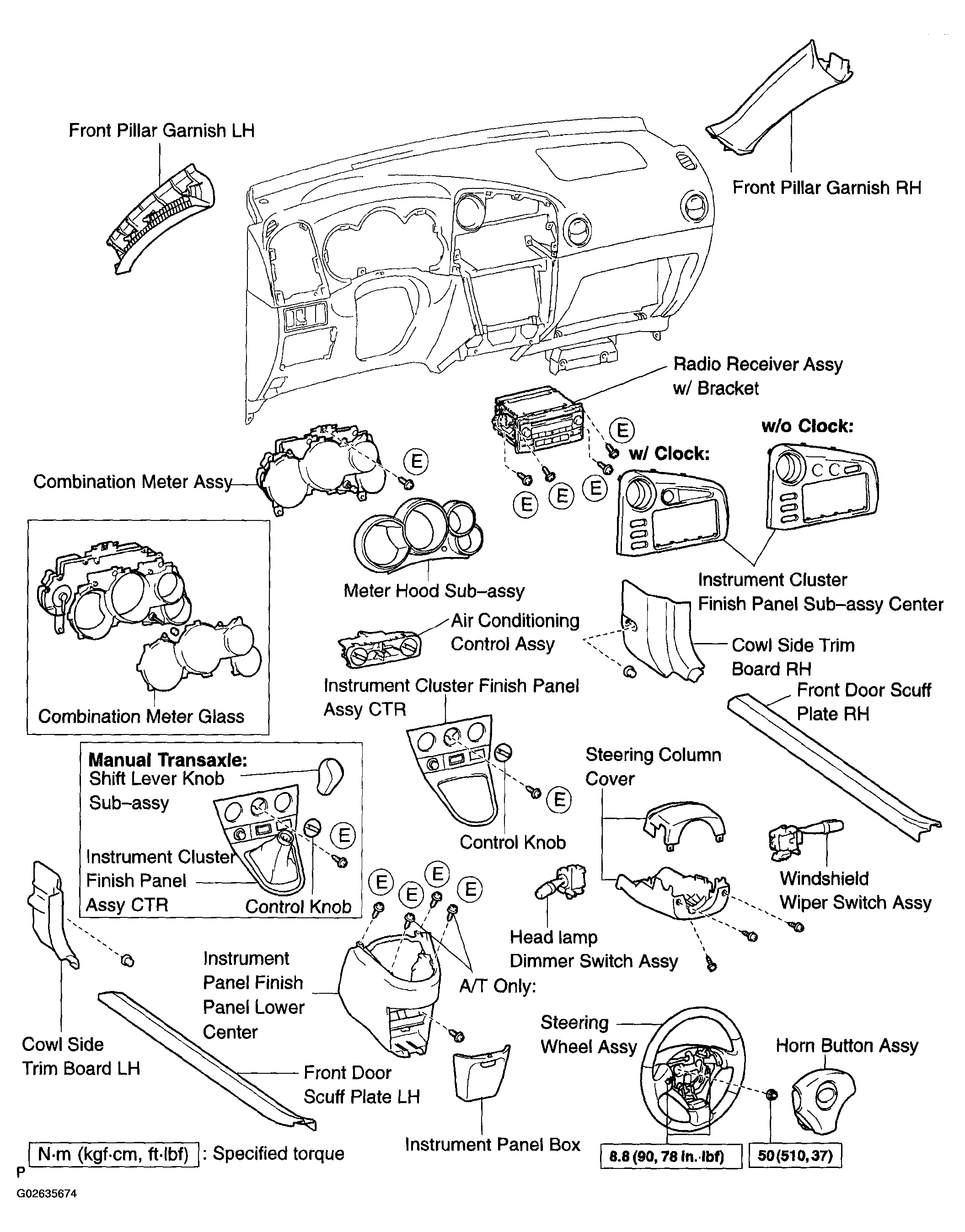

Fig 1: Checking Replacement Components Of Instrument Panel/Meter With Torque Specifications (1 Of 2)
G02635674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

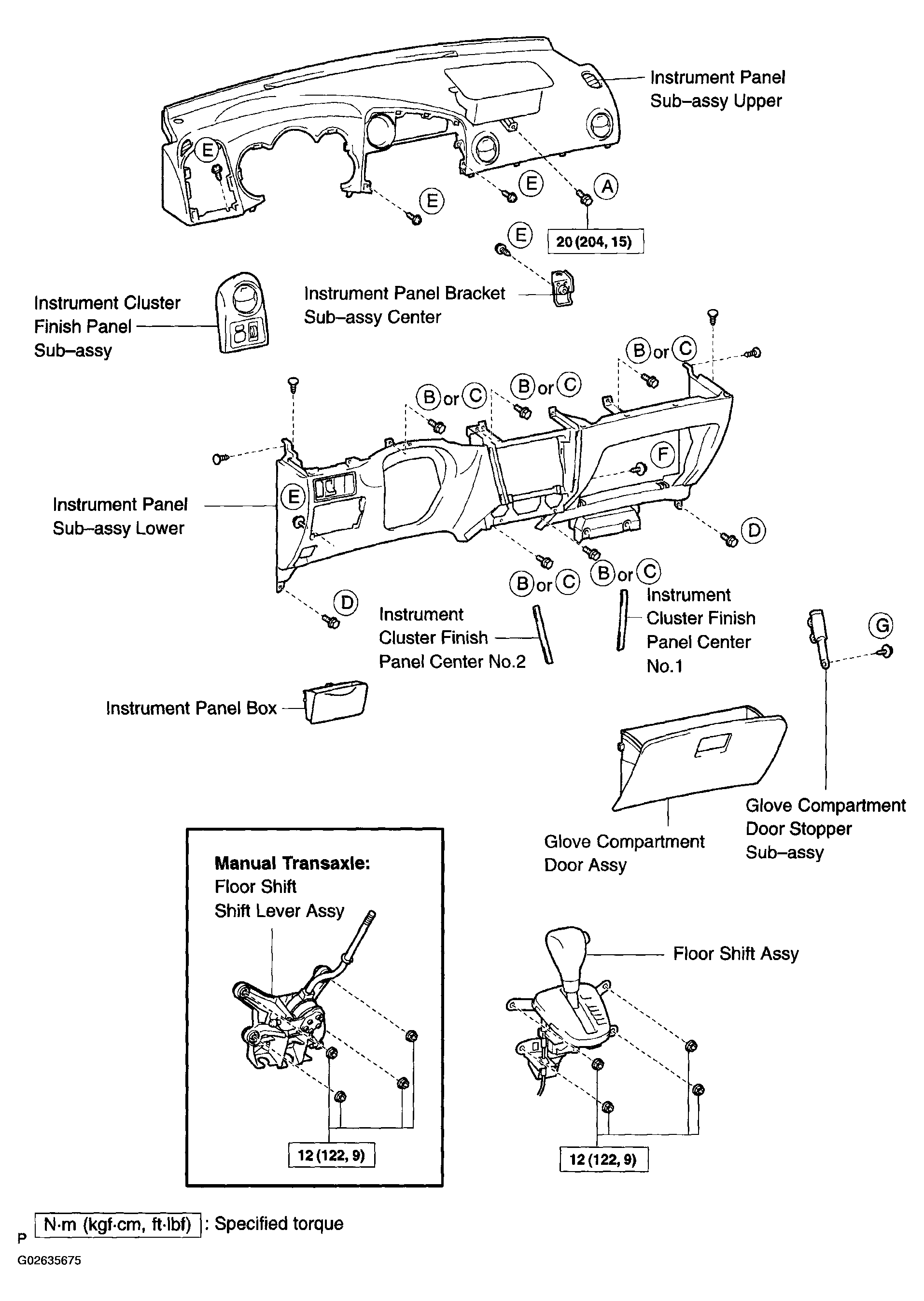

Fig 2: Checking Replacement Components Of Instrument Panel/Meter With Torque Specifications (2 Of 2)
G02635675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
