OEM General Information: Preparation: Fuel: Preparation

SST

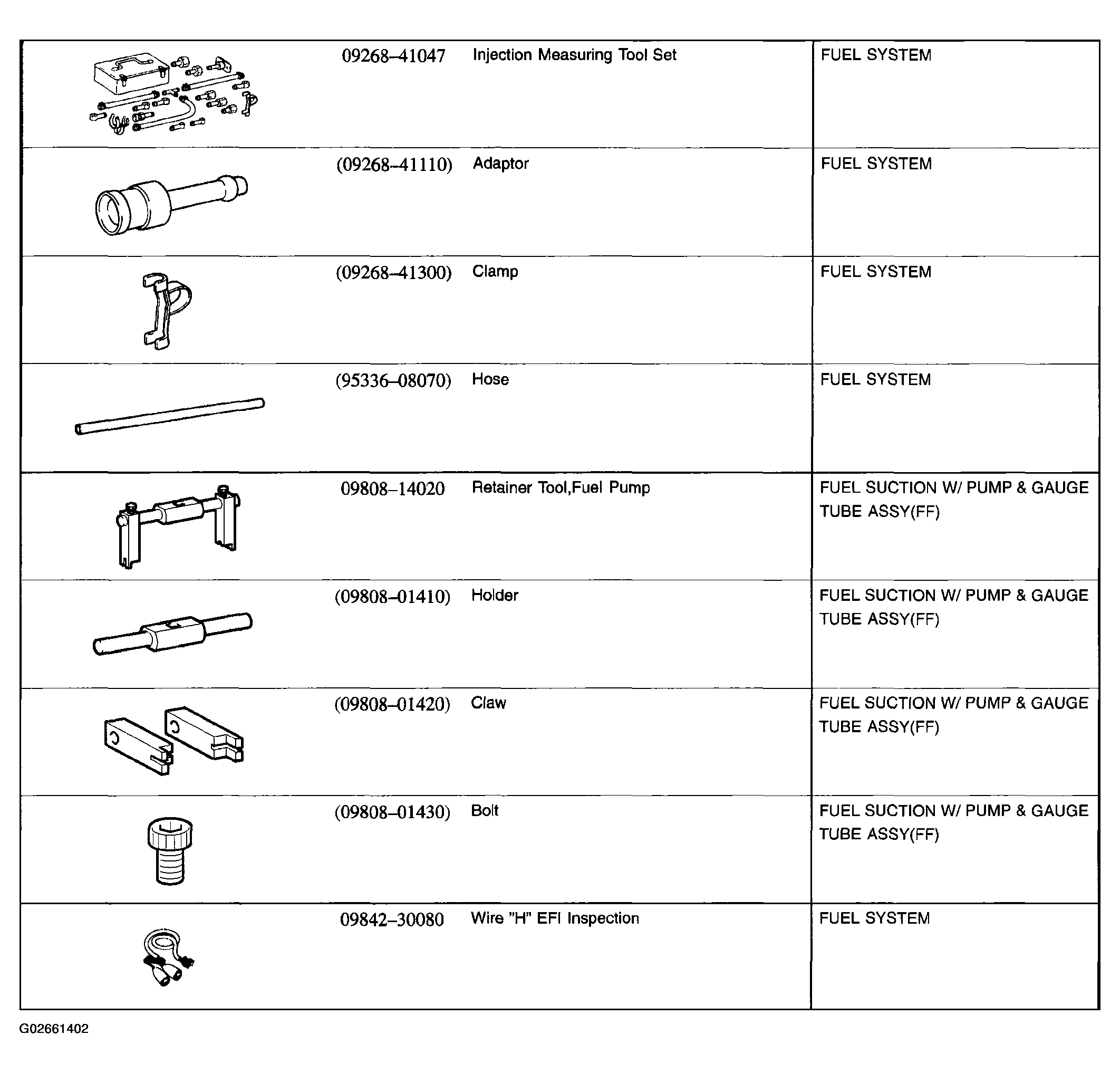

Fig 1: Special Service Tools Description Chart (Fuel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools 5

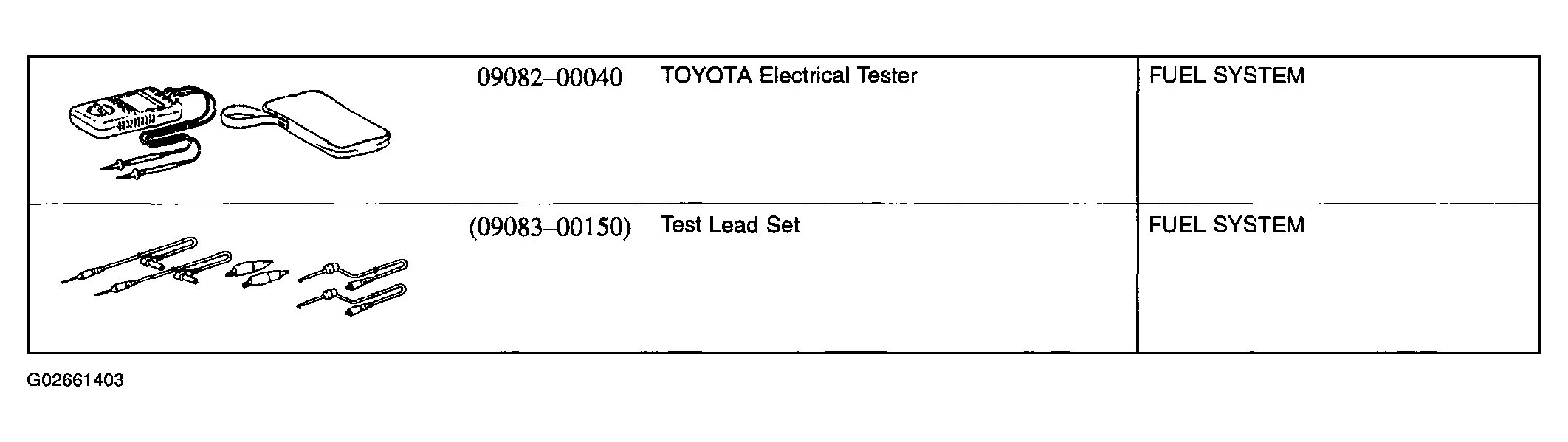

Fig 2: Recommended Tools Description Chart (Fuel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SSM

SPECIAL SERVICE MATERIALS DETAILS

08850-00065

Butyl Tape Set

FUEL SUCTION W/ PUMP & GAUGE TUBE ASSY (4WD)

Equipment

EQUIPMENT DETAILS
