Home › Toyota › 2005 › Matrix Base, FWD, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt › Front Seat Belt With PRETENSIONER › Components

Front Seat Belt With PRETENSIONER: Components

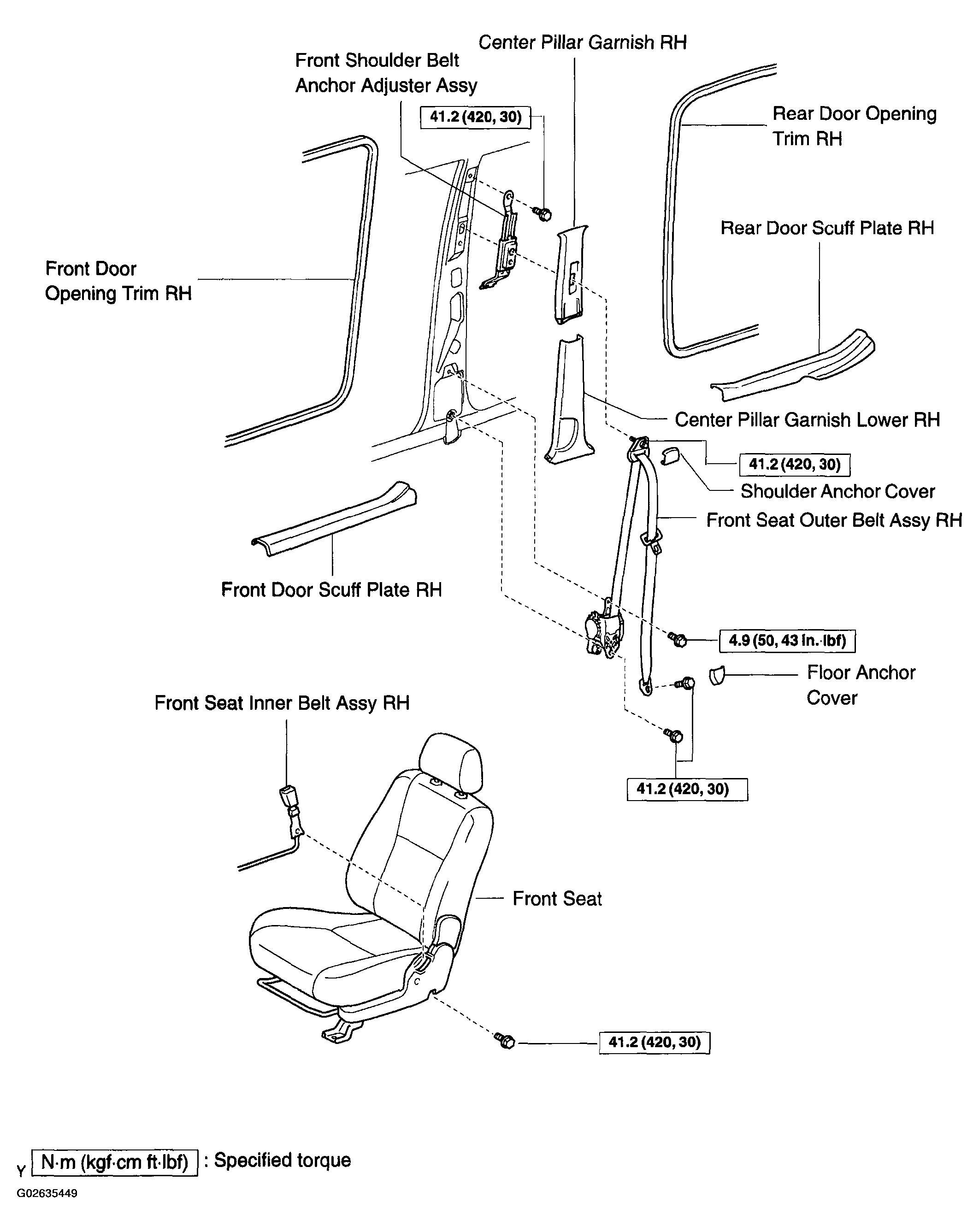

Fig 1: Replacement Components Seat Belt With Torque Specifications
G02635449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
