Audio System - Diagnostics
›
System Diagram
System Diagram

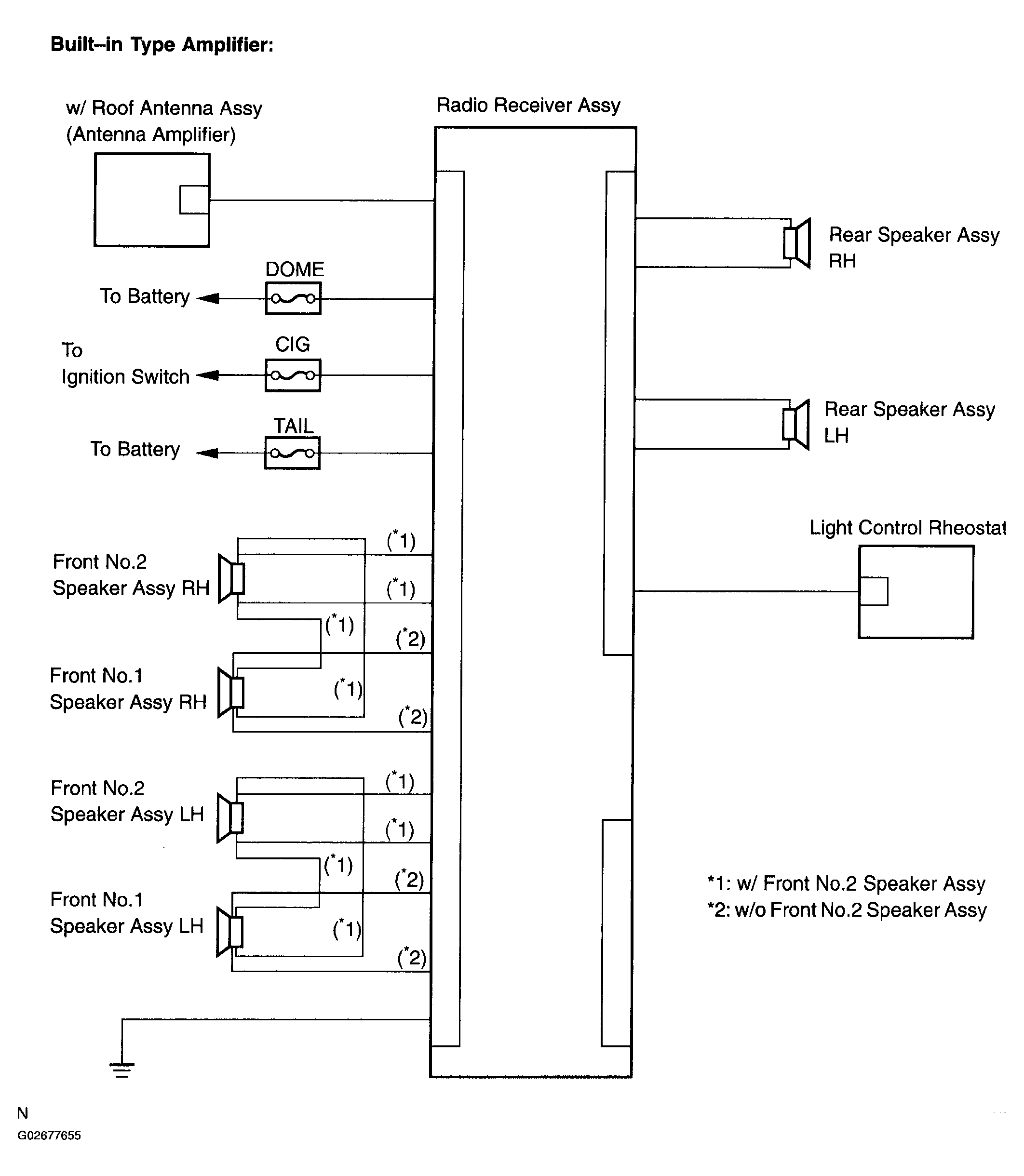

Fig 1: System Diagram Of Audio System (Built-In Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

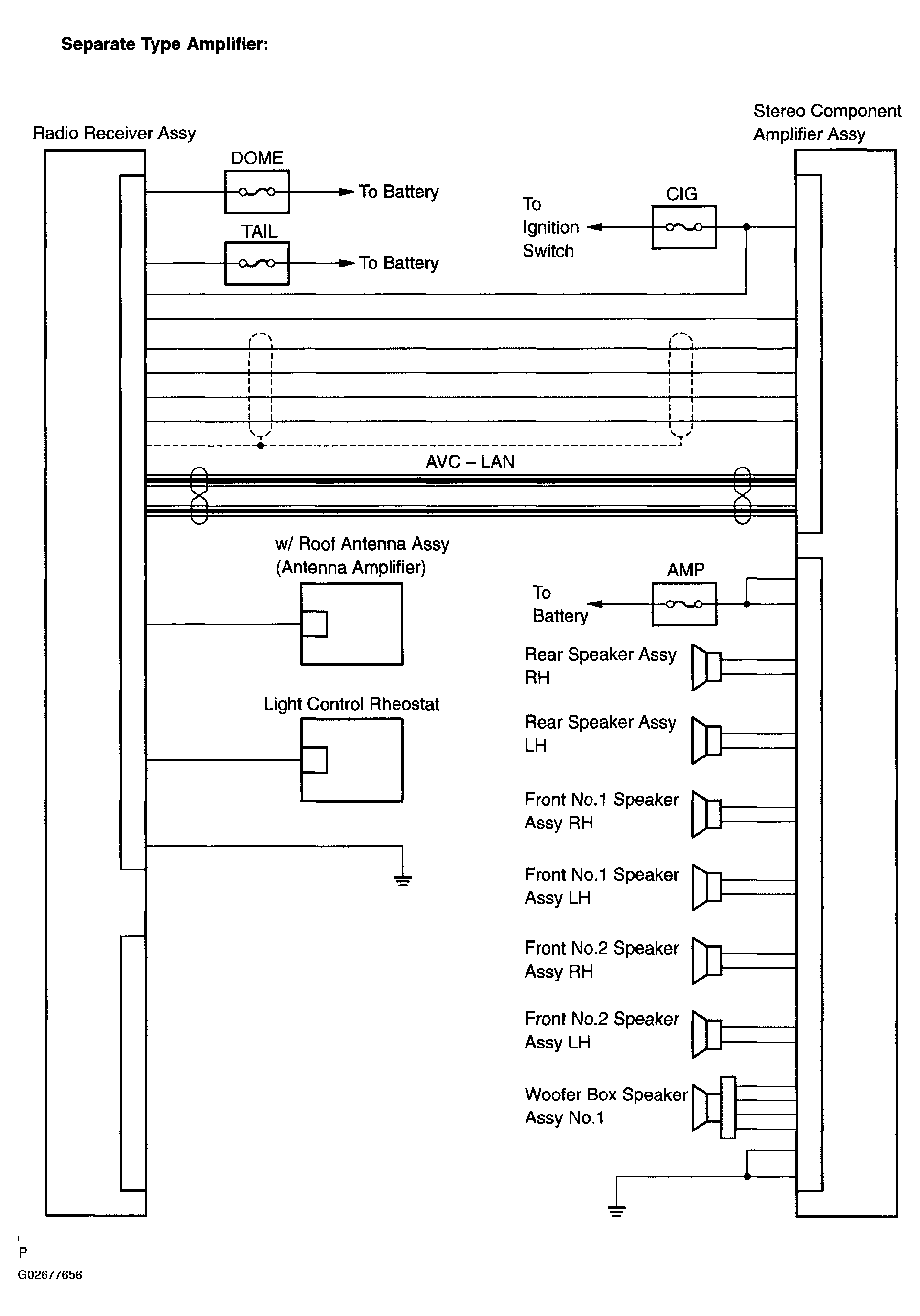

Fig 2: System Diagram Of Audio System (Separate Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
