Key Unlock Warning Switch Circuit
›
Wiring Diagram
Key Unlock Warning Switch Circuit: Wiring Diagram

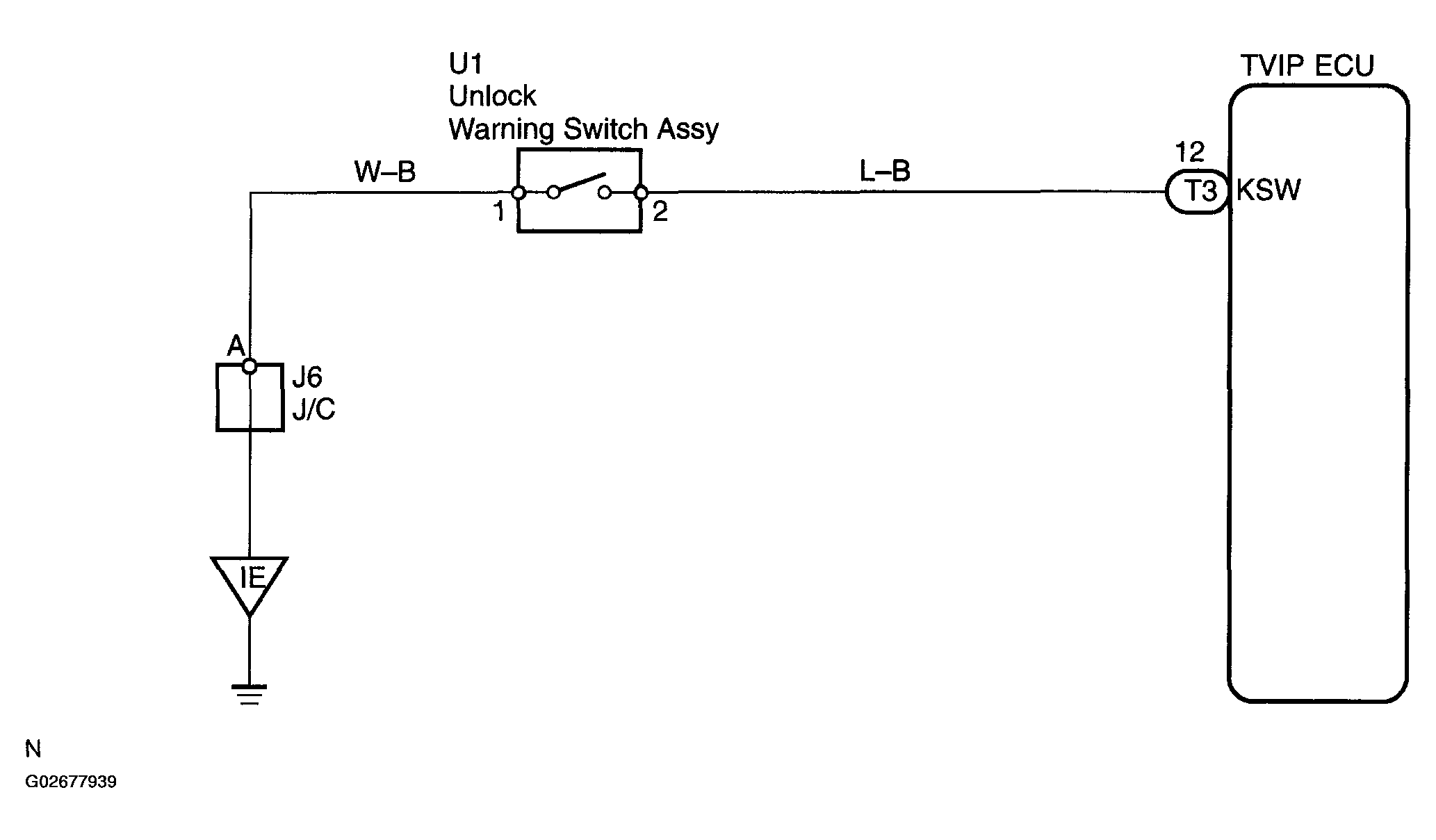

Fig 1: Identifying Key Unlock Warning Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
