Accelerator Pedal ASSY (1ZZ-FE (Ff)): Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE ACCELERATOR PEDAL ASSY
1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts, then remove the accelerator pedal.

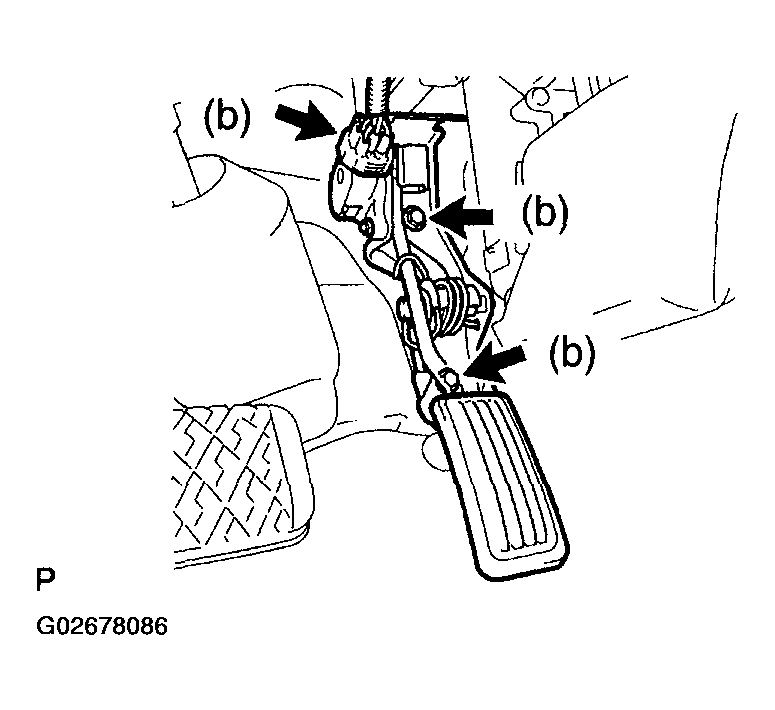

  Fig 1: Removing Accelerator Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ASSY
1. Install the accelerator pedal with the 2 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
2. Connect the accelerator position sensor connector.

  Fig 2: Installing Accelerator Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE TERMINAL
Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
