FixVault
Home
›
Toyota
›
2005
›
Matrix Base, FWD, Standard
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt
›
Rear Seat Belt
›
Components
Rear Seat Belt: Components

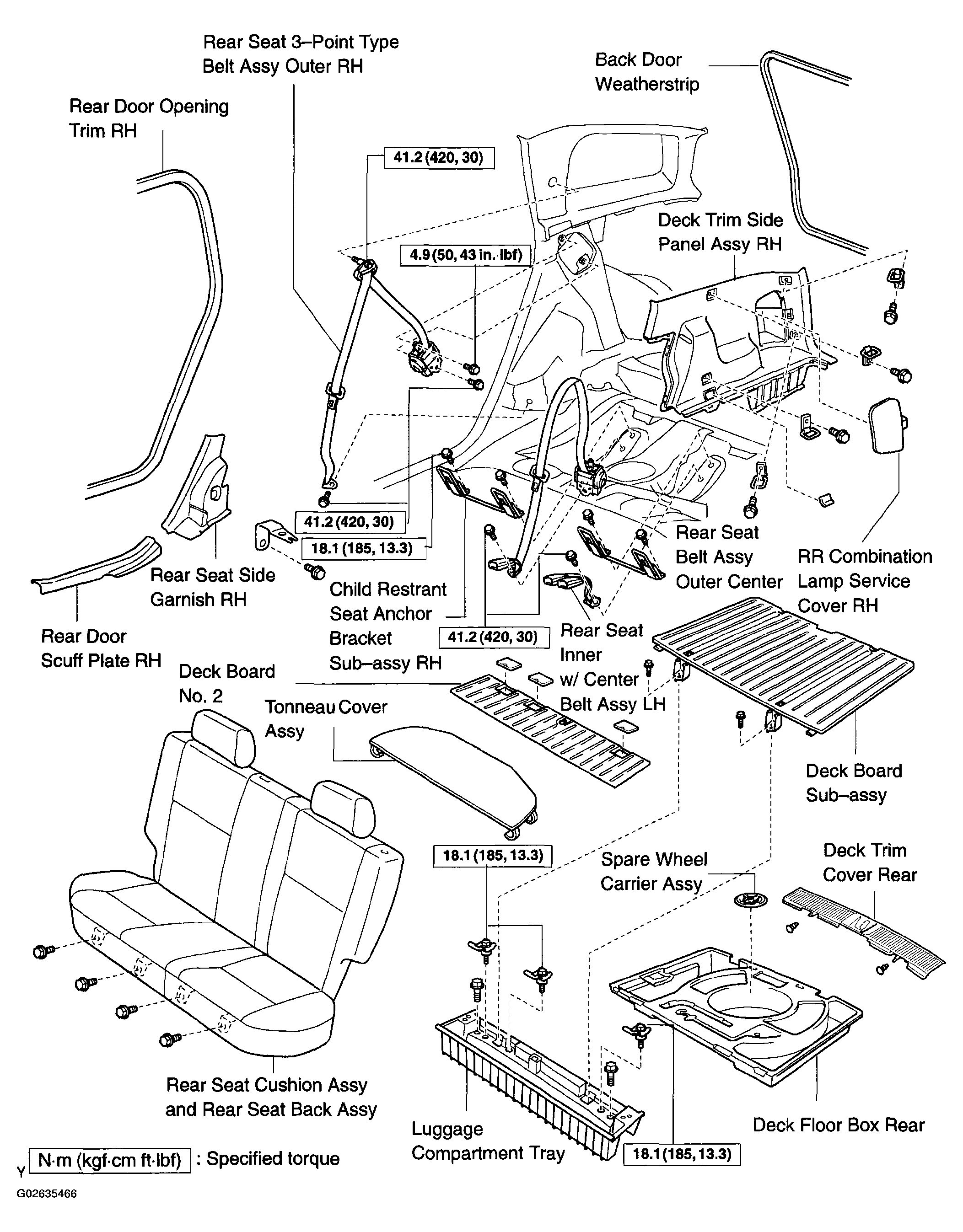

Fig 1: Replacement Components Rear Seat Belt With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
