Front Seat LH
›
Components
Front Seat LH: Components

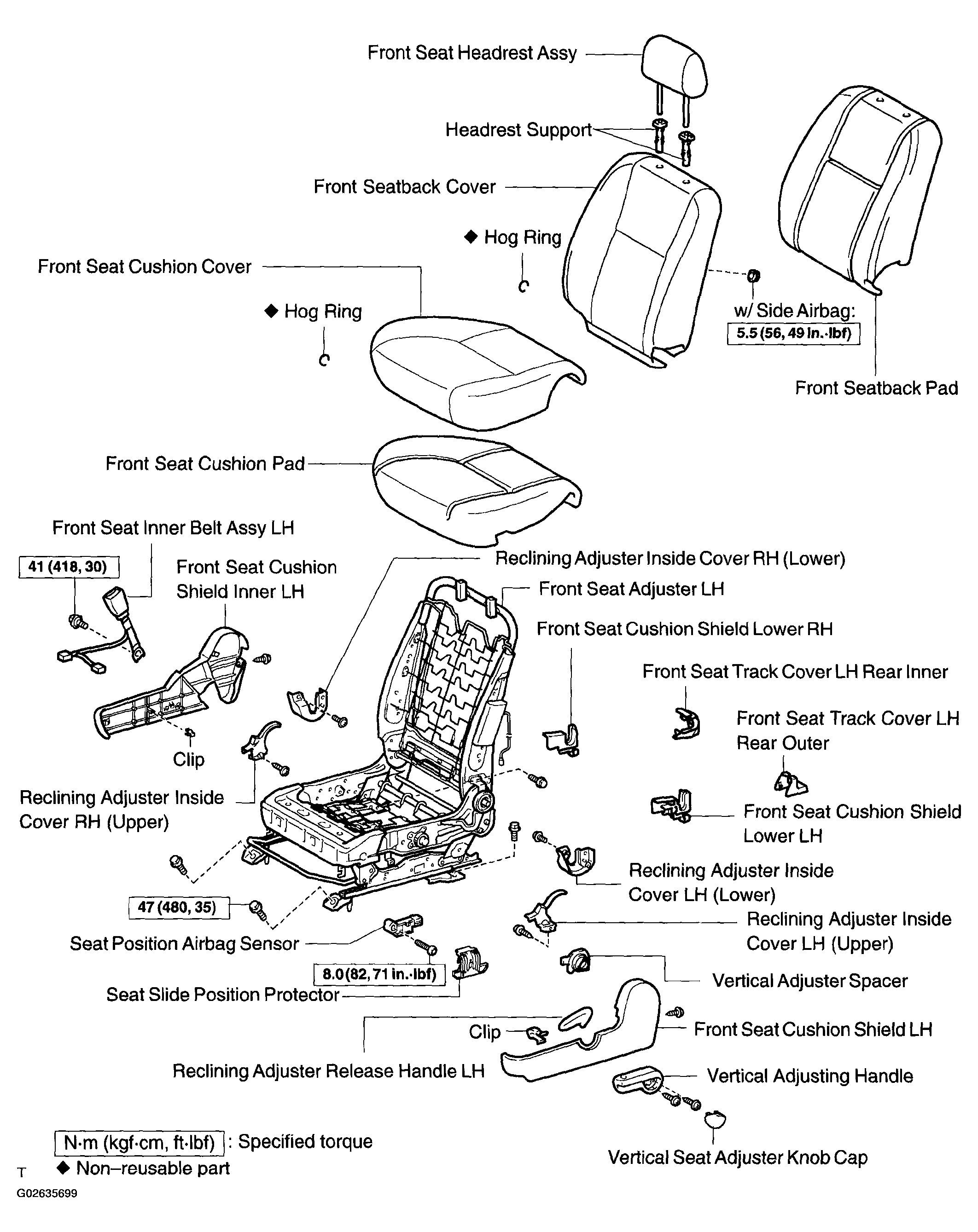

Fig 1: Replacement Components Of Front Seat LH With Torque Specifications
