Smart Key Entry System (Keyless Entry) (Diagnostics): Location

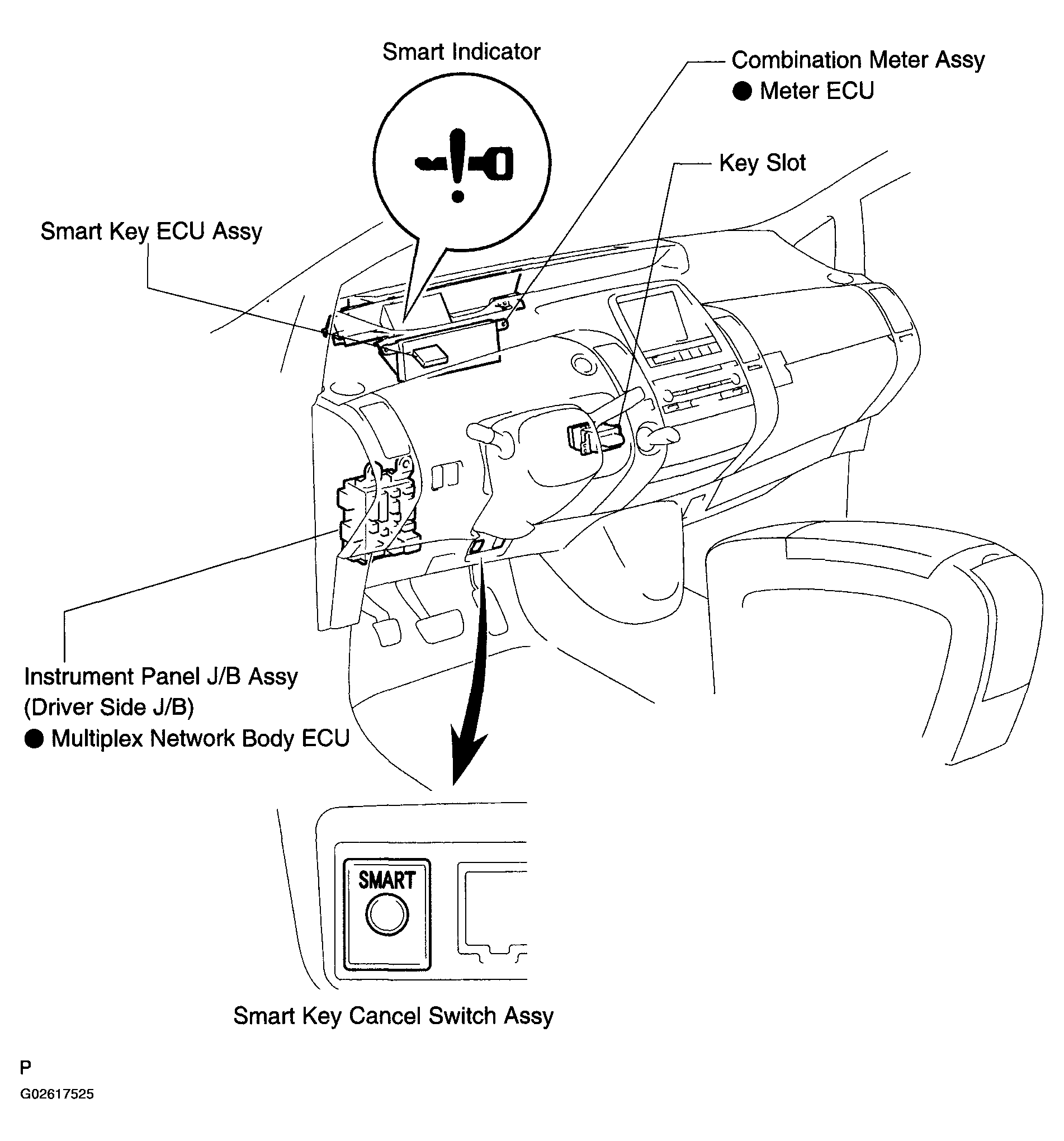

Fig 1: Identifying Smart Entry System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

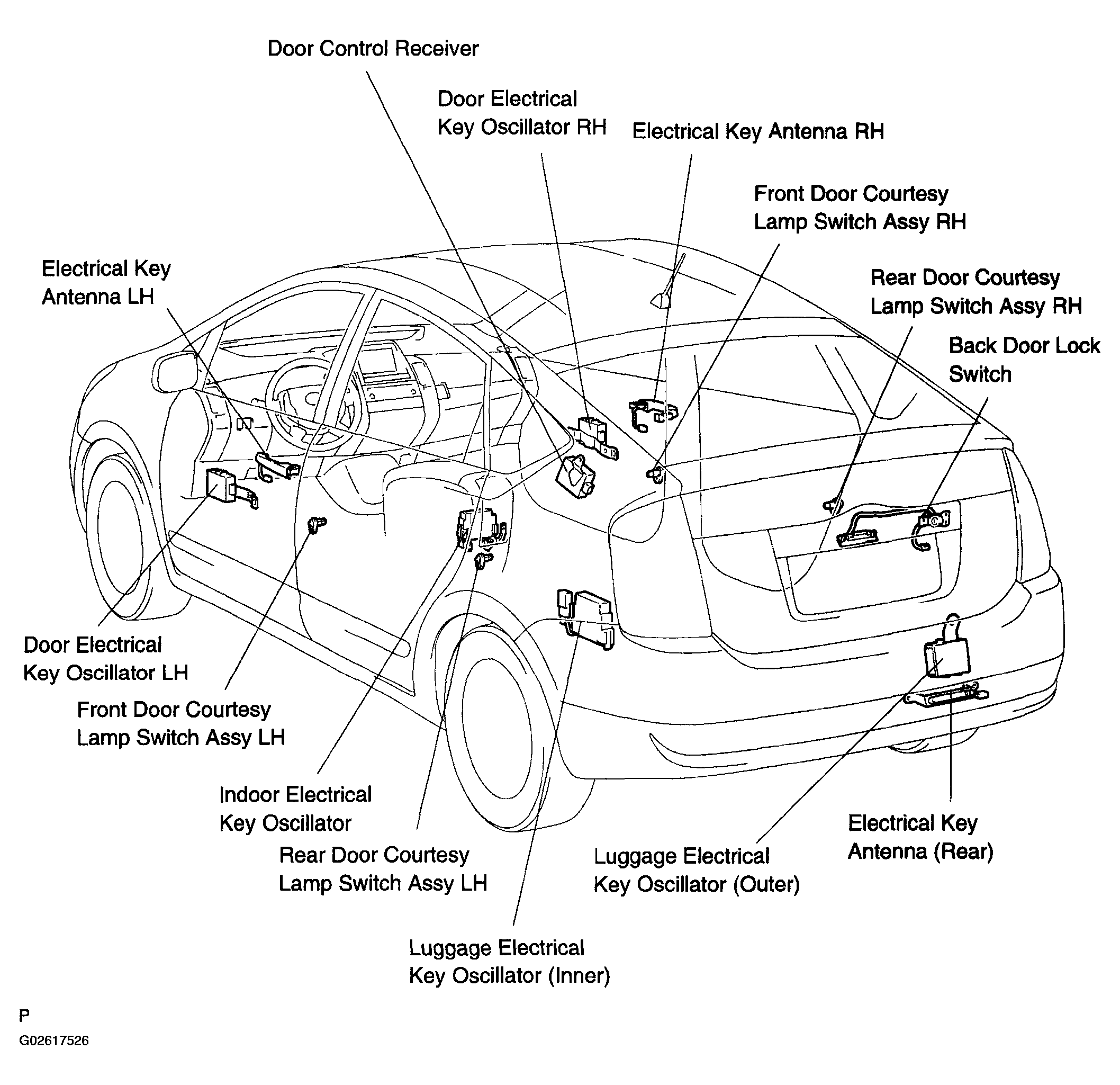

Fig 2: Identifying Smart Entry System Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
