Smart Key Entry System (Keyless Entry) (Diagnostics): Registration

DESCRIPTION OF REGISTRATION
HINT:
- Smart key codes are the same as recognition codes for the wireless transmitter. Registering a smart key code enables both the smart entry system and the wireless door lock control system to be operated.
- Code registration is necessary when the smart key ECU or smart key is replaced with a new one.
1. Select the operation mode from the following:
  - New registration mode (when smart key ECU is replaced):
    Used when the smart key ECU is replaced with a new ECU.
  - Add mode:
    Used when a new key is added.
  - Re-registration mode:
    After using the erase mode to erase all smart key codes previously registered, use the re-registration mode to reenter them.
  - Erasure mode:
    Used to erase all the key codes except for the code of the master key that is used during erasure mode. Use this mode when a key is lost.
  - Reset mode:
    Used to reset all the key codes (including master key). Use this mode when all keys are lost.
2. Perform the code registration and the code erasure according to the flowcharts (See STEP 2 and 3).
  HINT:

  Up to 5 master keys can be registered in the smart key ECU.
3. Register a new key number or change the key number according to the flowcharts (See STEP 4 and 5). When the smart key ECU is replaced or all the key cylinders are replaced, be sure to register a new key number or change the key number in the smart key ECU.
HINT:

A key number is a 5-digit code stamped on the key number plate.
REGISTRATION OF NEW AND ADDITIONAL SMART KEY CODE
1. Register a smart key code using the hand-held tester.

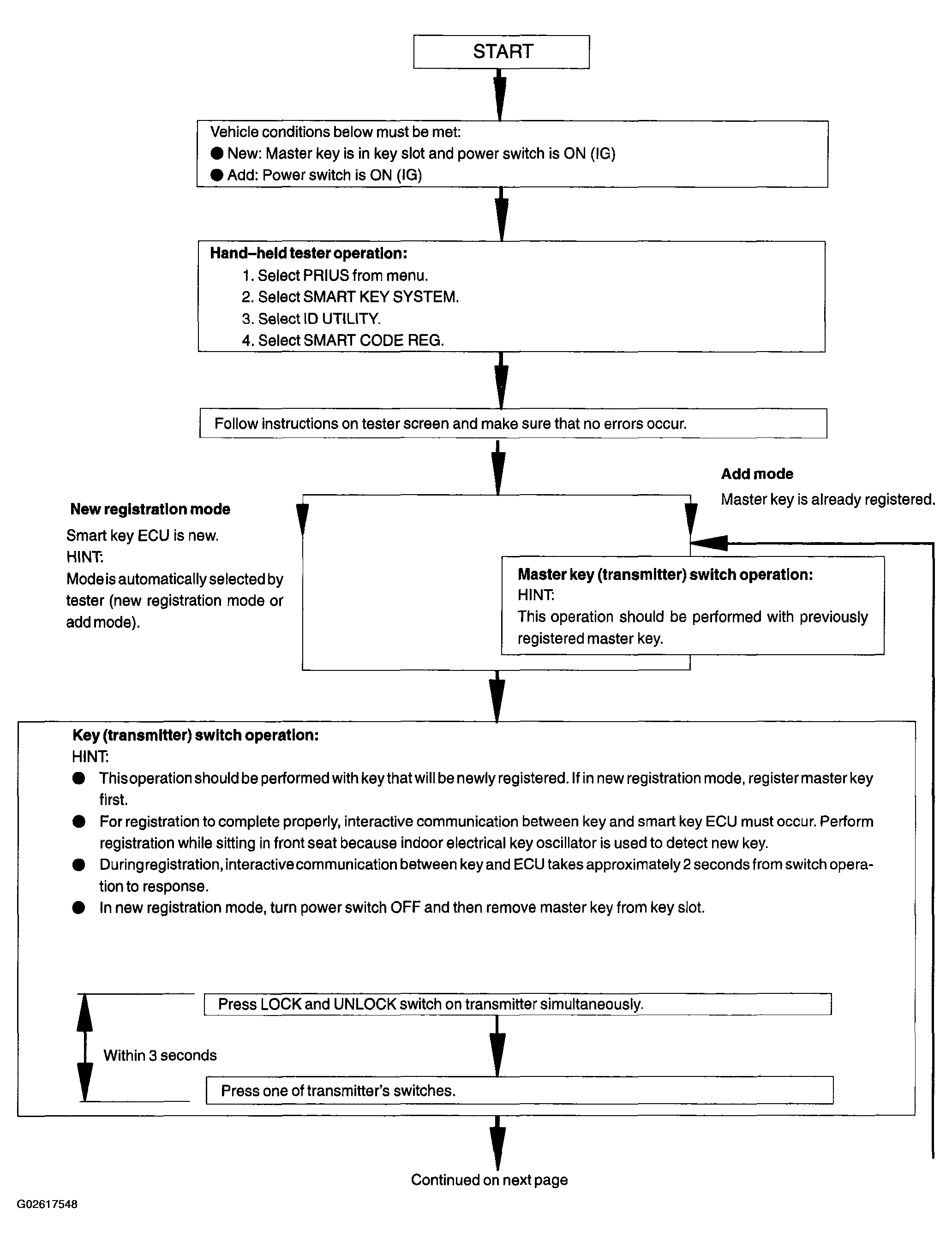

  Fig 1: Smart Key Code Flow Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

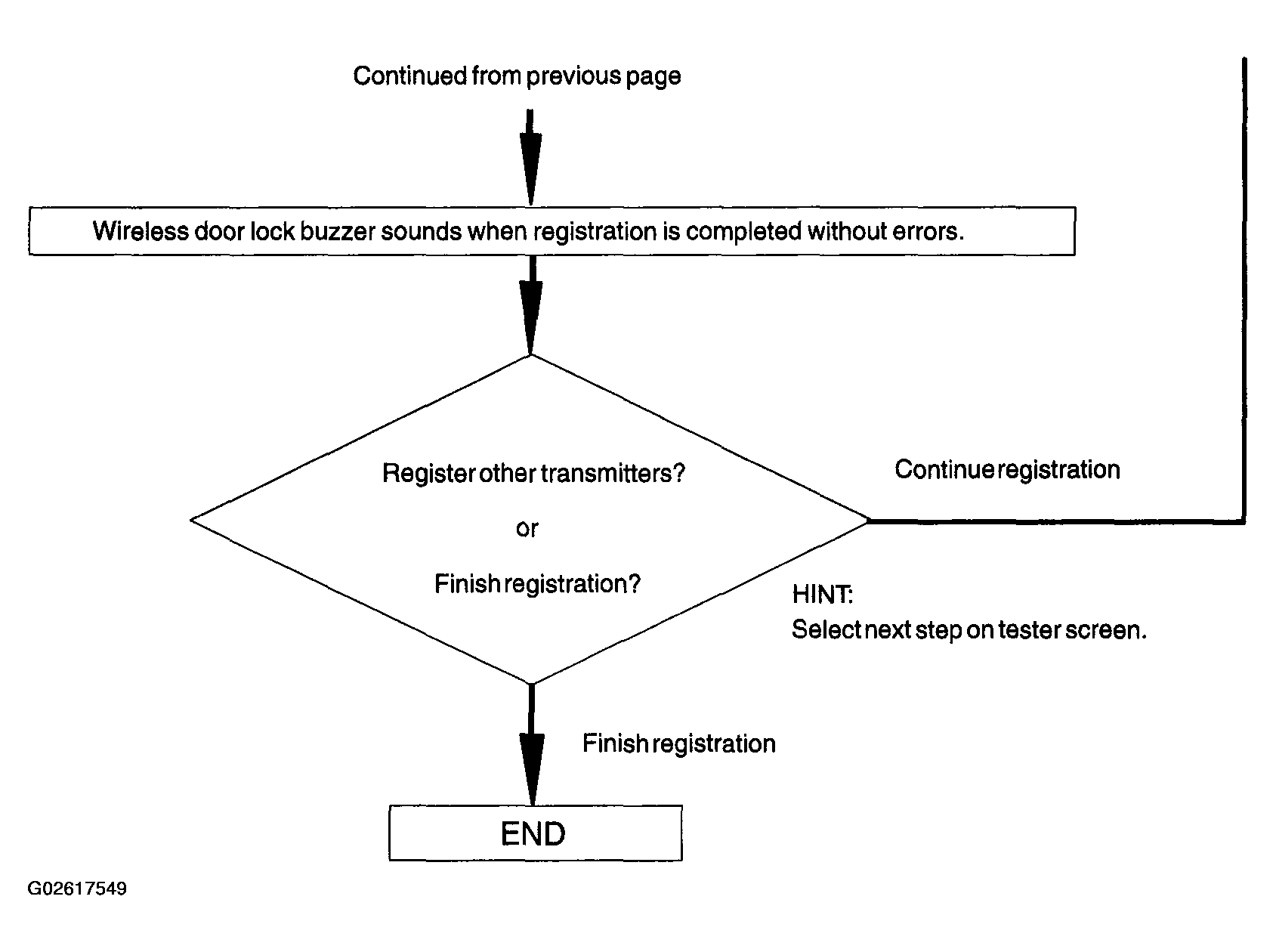

Fig 2: Smart Key Code Flow Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- A brief outline of procedures for key code registration is shown on this page and the previous page. For more detailed information, please refer to the hand-held tester screen's instructions.
- The number of currently registered codes can be checked on the first screen of the SMART CODE REG option.
RE-REGISTRATION OF SMART KEY CODES AFTER ALL KEY CODES ERASED
1. Re-register a smart key code using the hand-held tester.

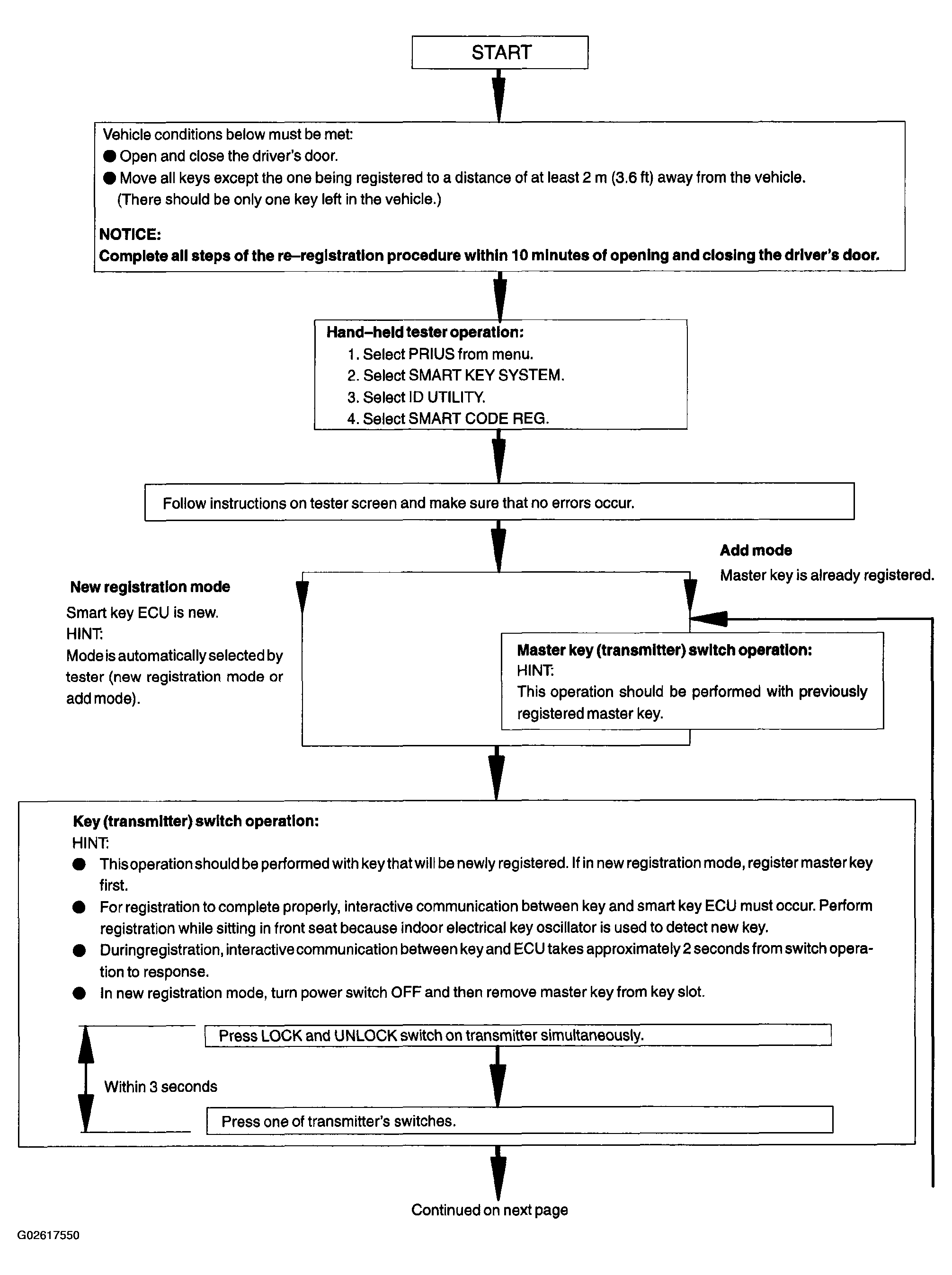

  Fig 3: Smart Key Code Flow Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Smart Key Code Flow Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- A brief outline of procedures for key code registration is shown on this page and the previous page. For more detailed information, please refer to the hand-held tester screen's instructions.
- The number of currently registered codes can be checked on the first screen of the SMART CODE REG option.
ERASURE OF SMART KEY CODE
1. Erase the smart key codes using the hand-held tester.

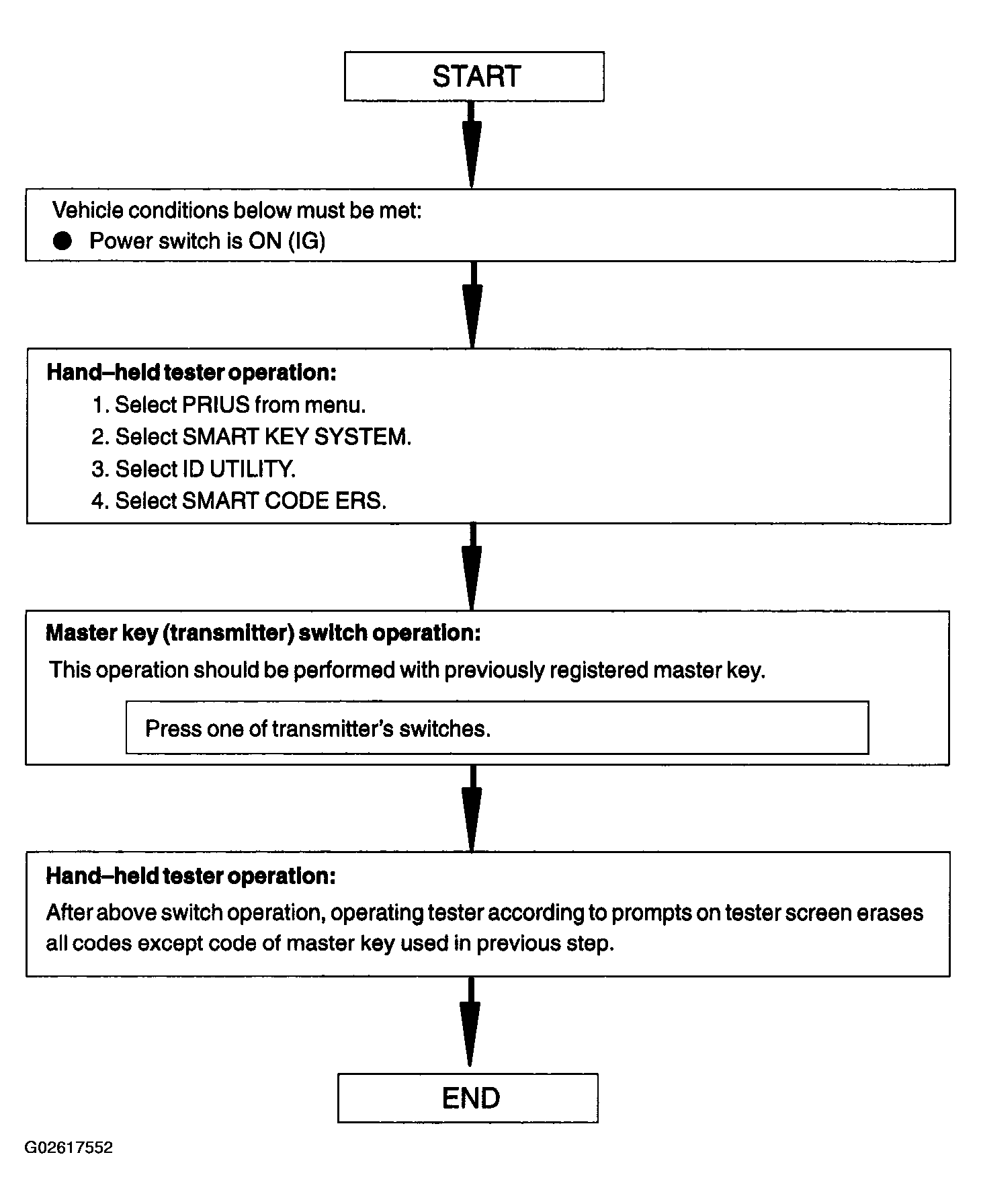

  Fig 5: Smart Key Code Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:

A brief outline of procedures for key code erasure is shown on this page. For more detailed information, please refer to the hand-held tester screen's instructions.
RESET OF SMART KEY CODE
1. Reset the smart key codes using the hand-held tester.

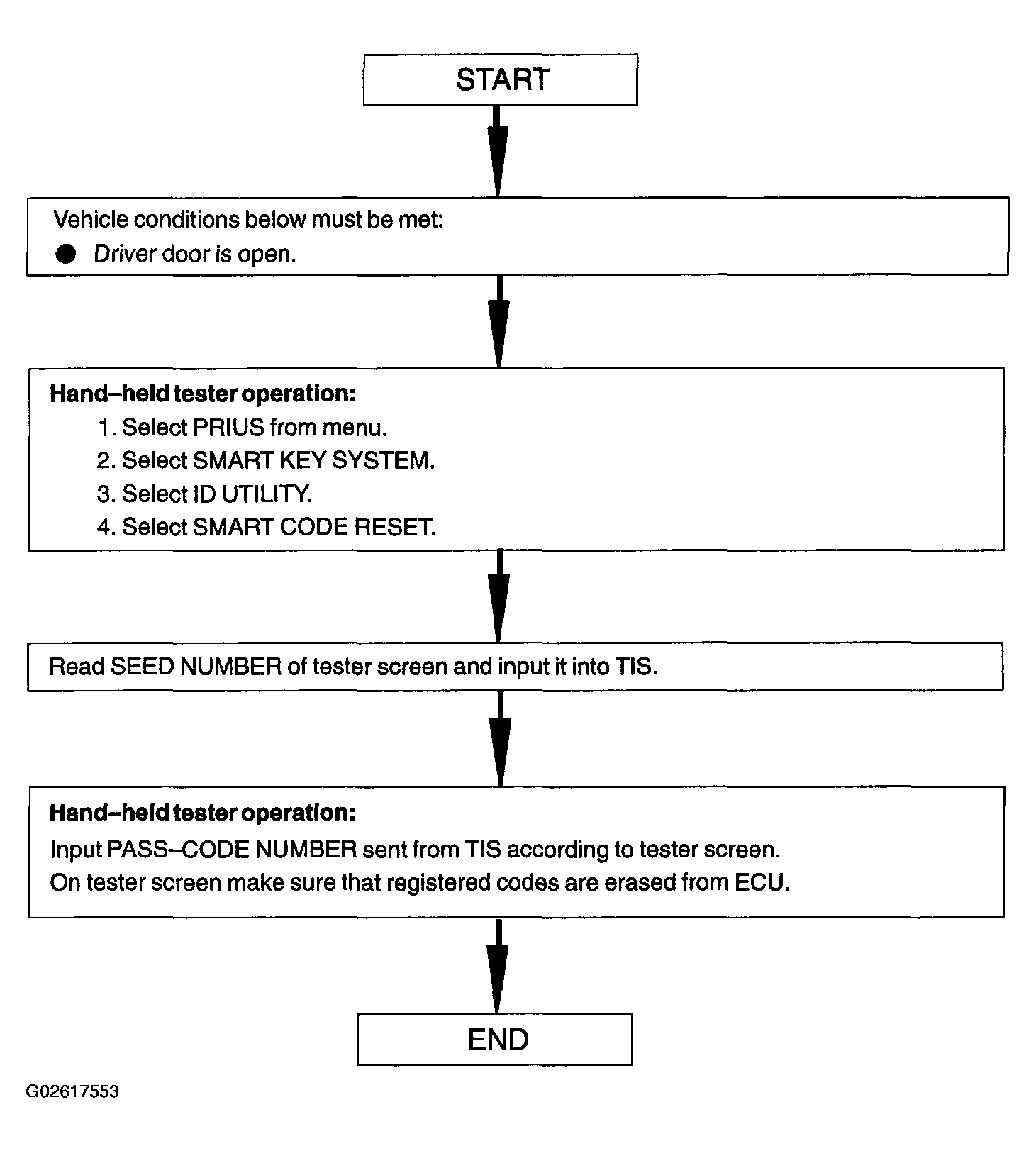

  Fig 6: Smart Key Code Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- A brief outline of procedures for key code reset is shown on this page. For more detailed information, please refer to the hand-held tester screen's instructions.
- The SEED NUMBER is a 6-digit code.
- The PASS-CODE NUMBER is a 6-digit code.
- Reset mode will take approximately 16 minutes to complete.
