Smart Key Entry System (Keyless Entry) (Diagnostics)
›
Smart Functions Do Not Operate At All
›
Wiring Diagram
Smart Functions Do Not Operate At All: Wiring Diagram

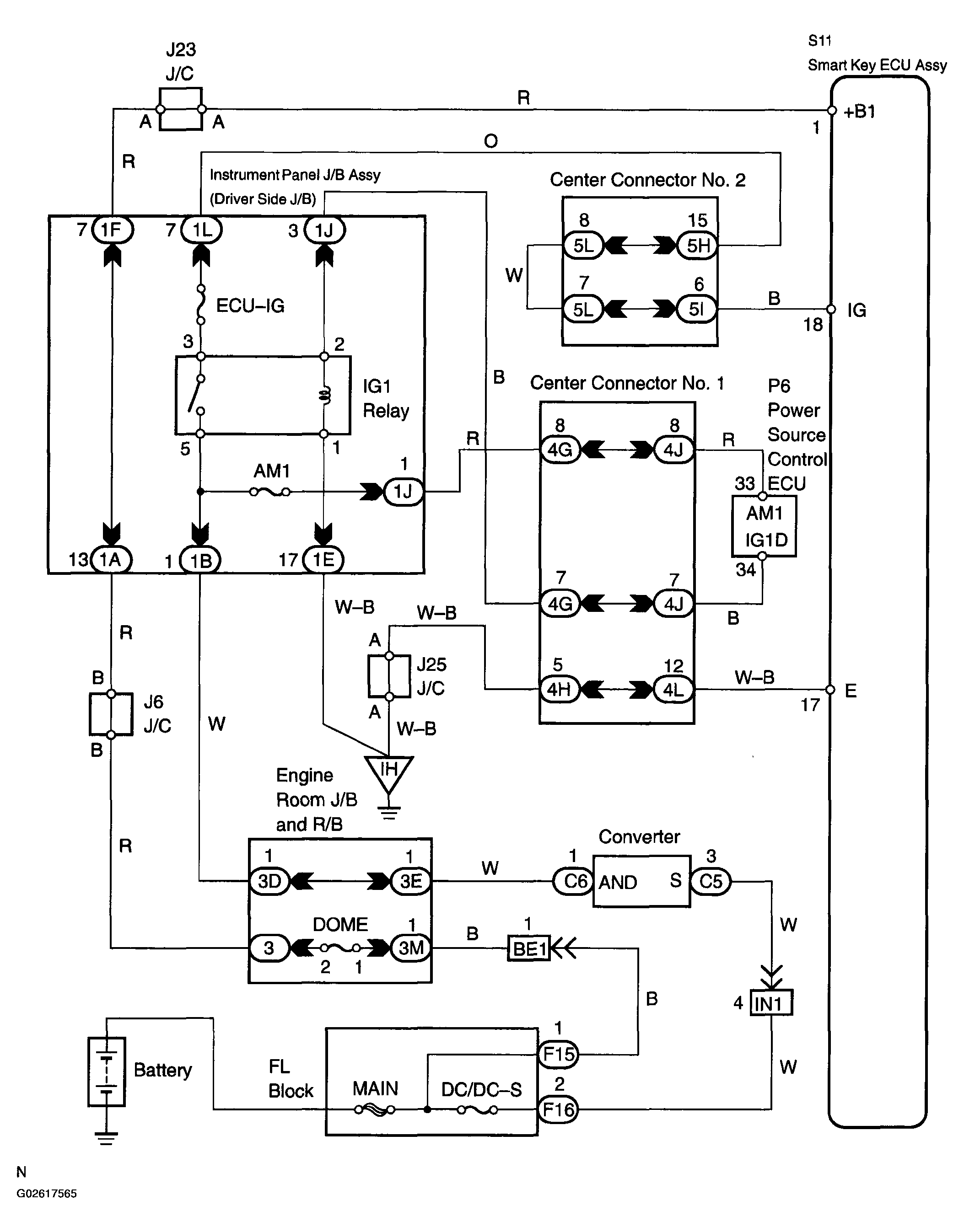

Fig 1: Wiring Diagram - Smart Functions Do Not Operate At All
