System Diagram

  1. OVERVIEW OF PARTS LAYOUT

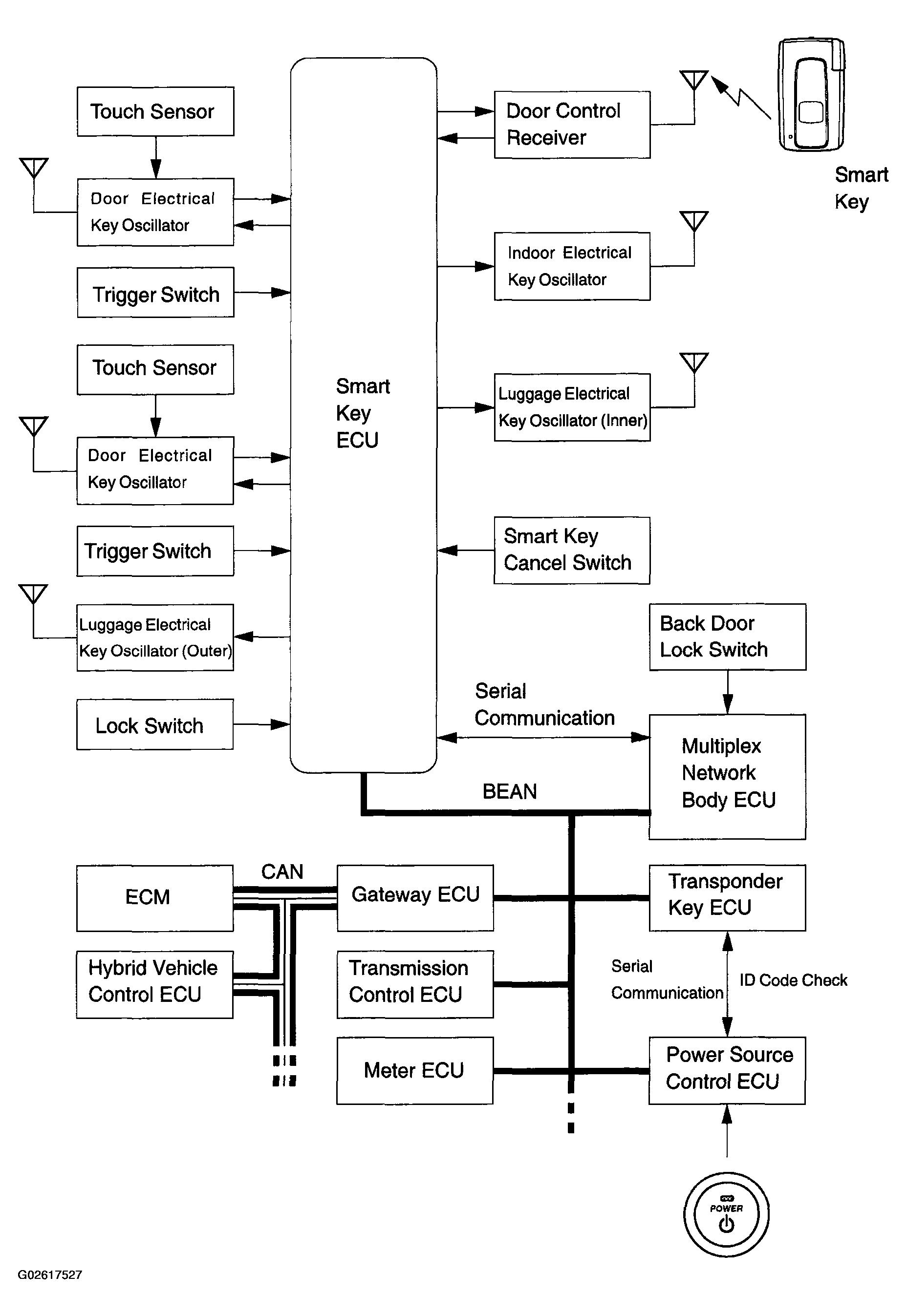

    Fig 1: System Diagram (1 Of 3)
    G02617527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

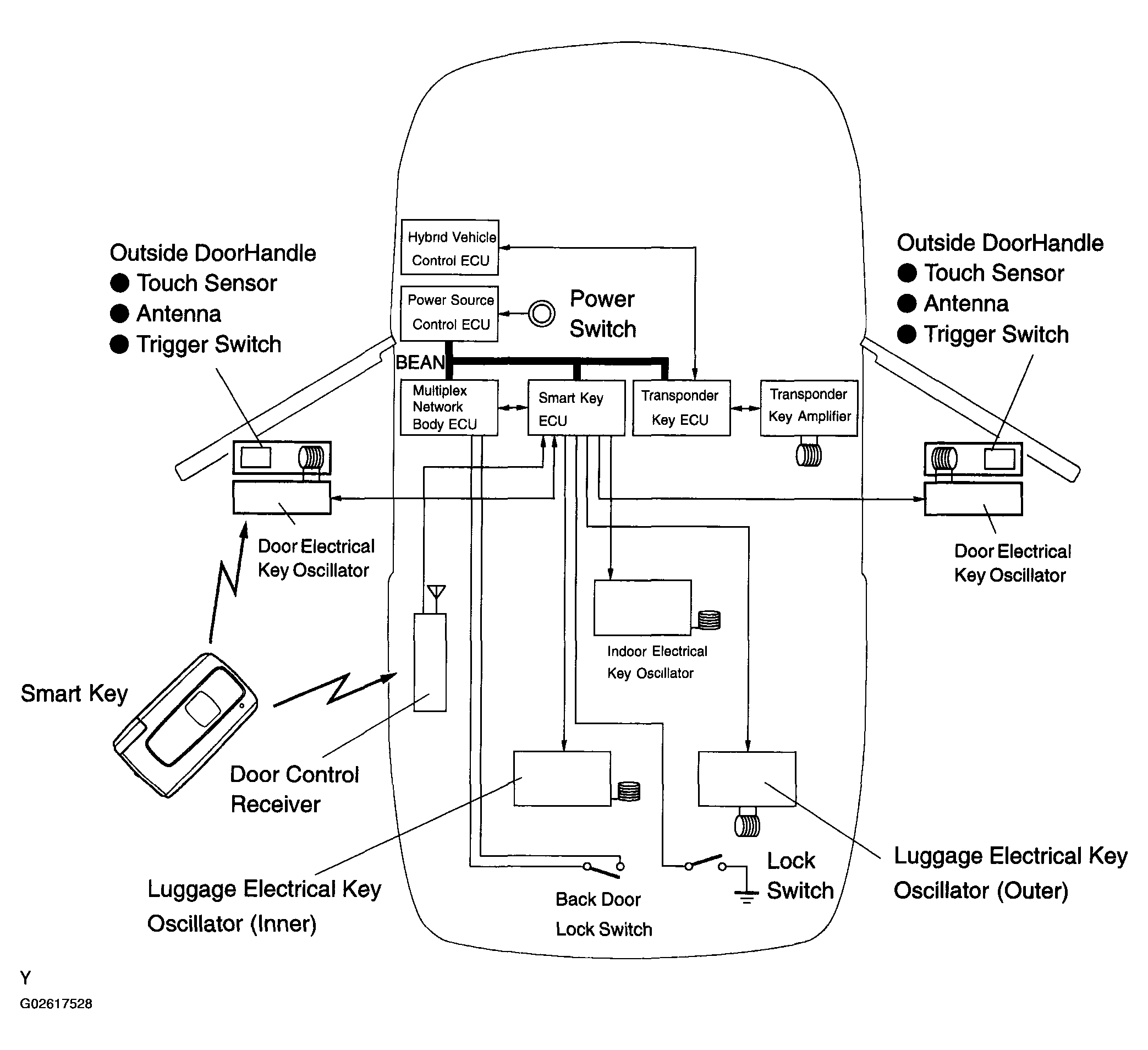

    Fig 2: System Diagram (2 Of 3)
    G02617528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

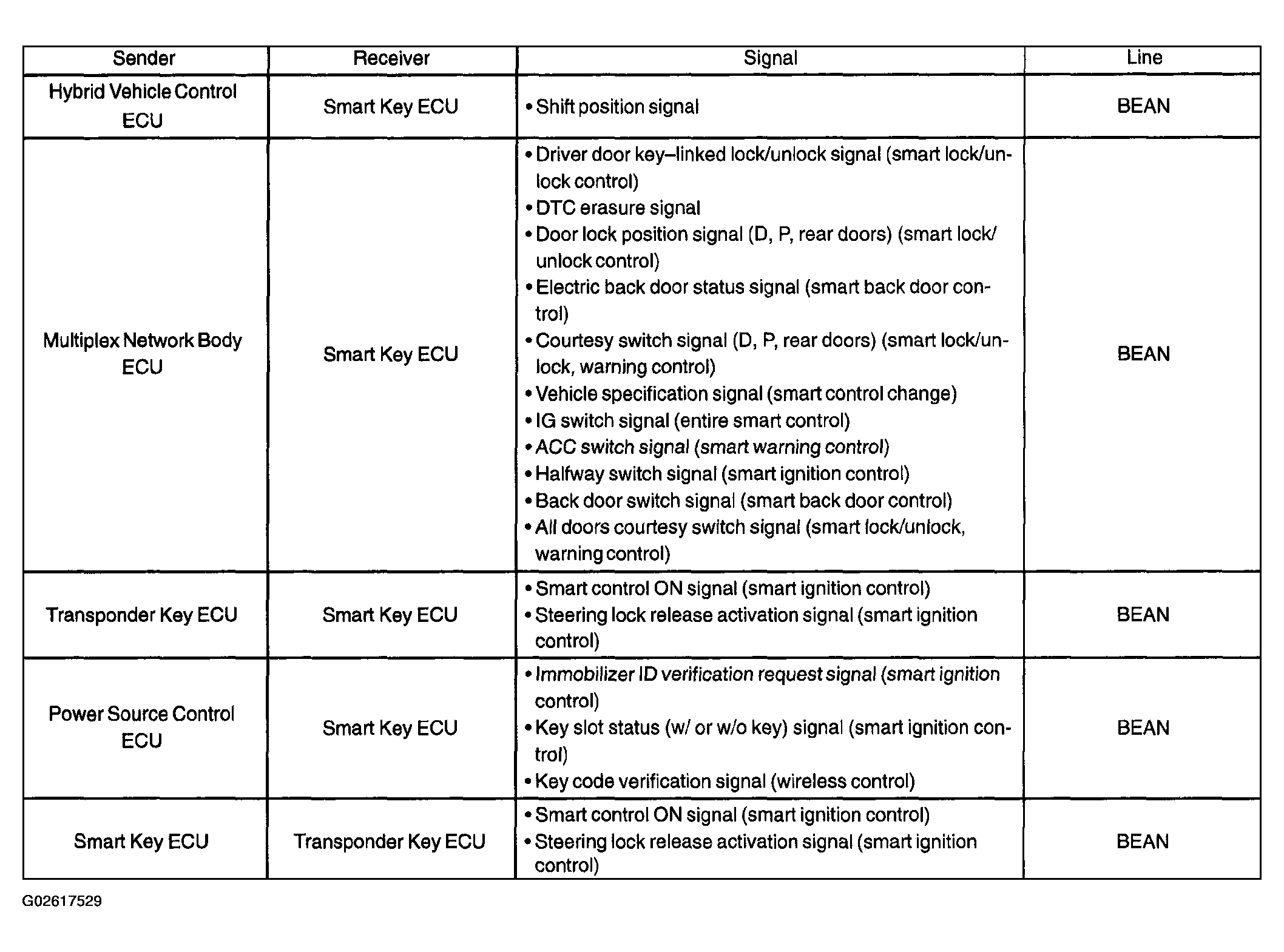

    Fig 3: System Diagram (3 Of 3)
    G02617529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
