Quarter Window
›
Components
Quarter Window: Components

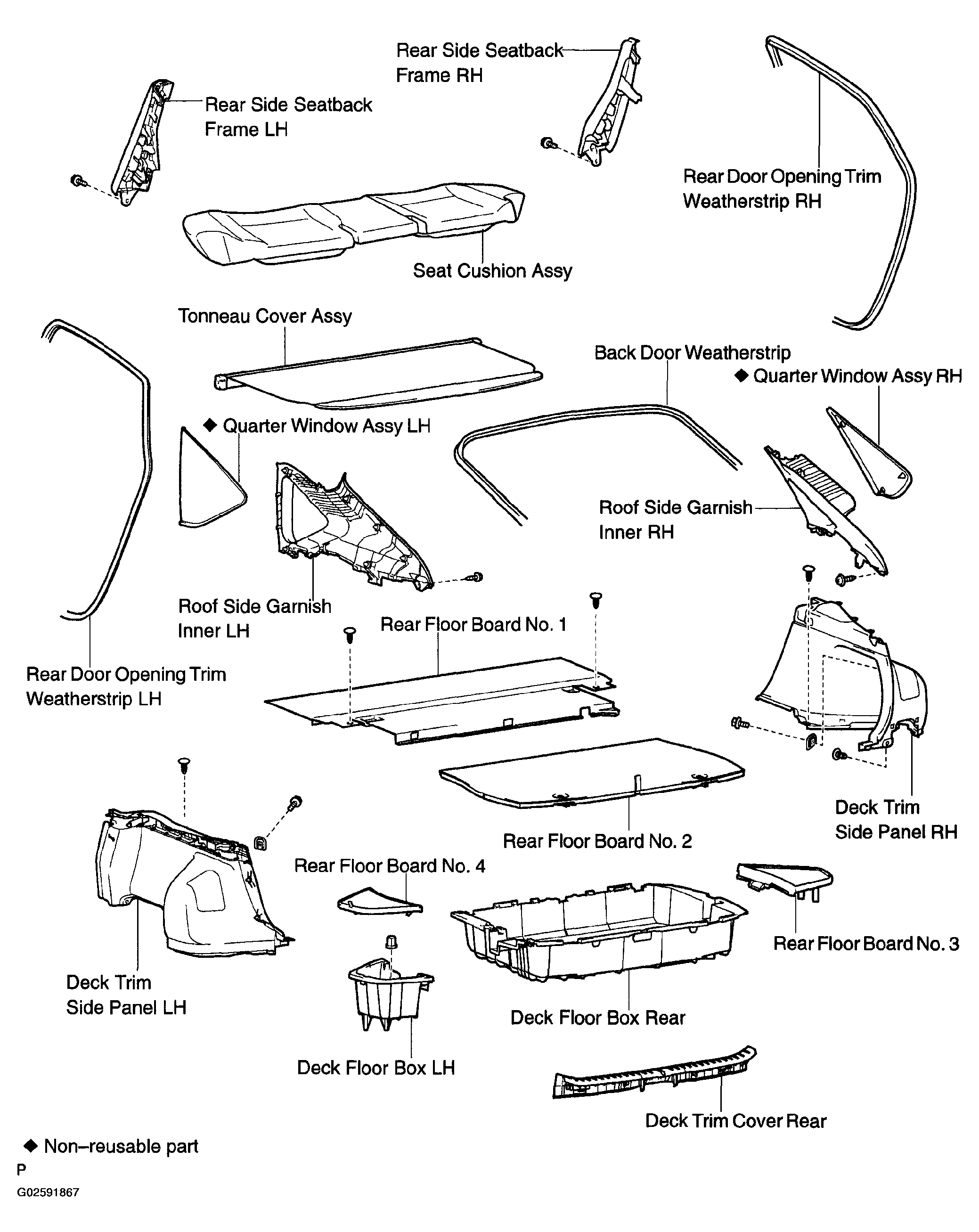

Fig 1: Identifying Component Location Of Quarter Window
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
