Instrument Panel Sub-ASSY Lower: Replacement

HINT:

• Installation is in the reverse order of removal.
• COMPONENTS: SEE INSTRUMENT PANEL/METER

1. TABLE OF BOLT, SCREW AND NUT

   HINT:

   All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

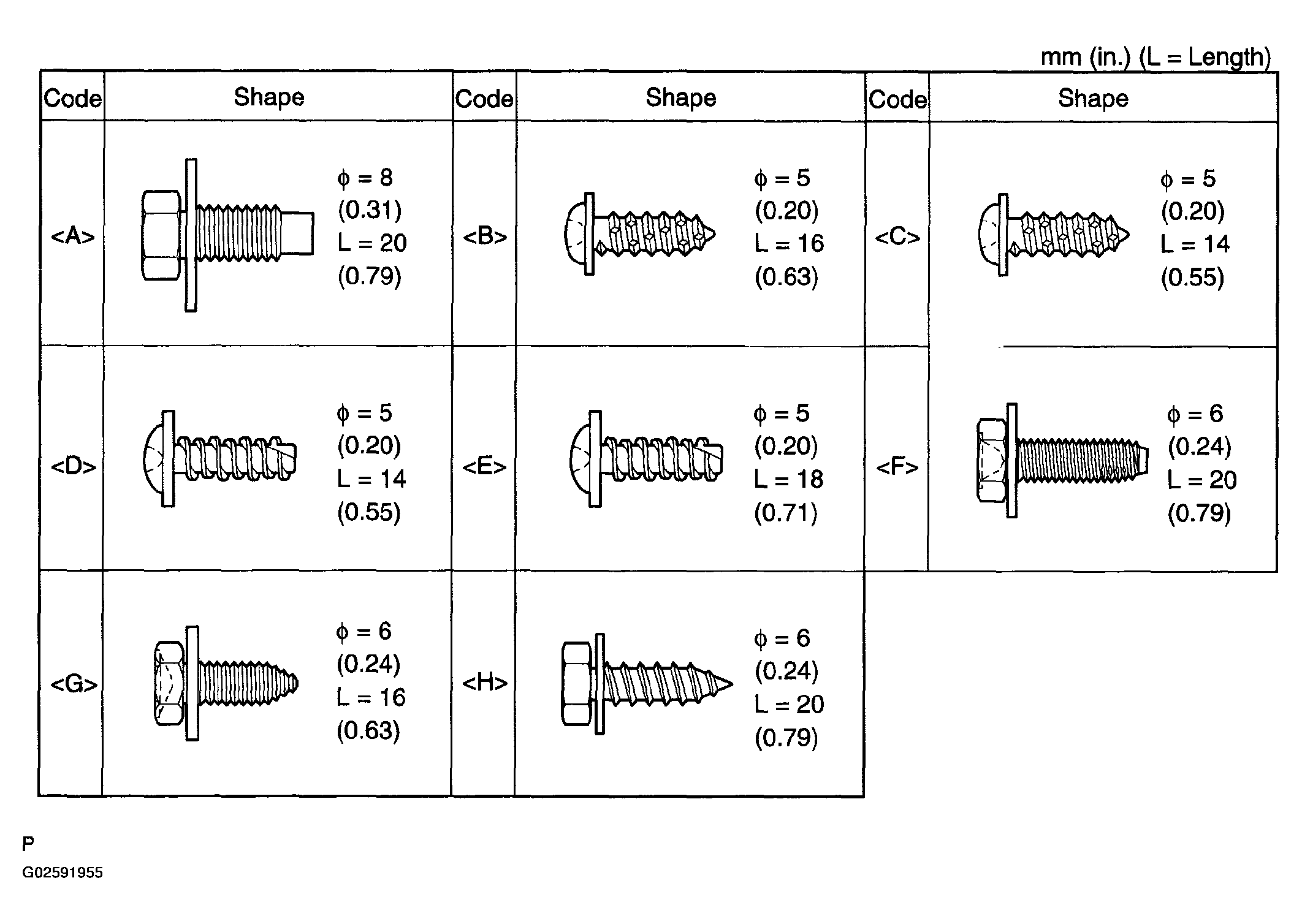

   Fig 1: Identifying Bolt, Screw And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY   )
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE STEERING WHEEL COVER LOWER NO.3
6. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
7. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

8. REMOVE TILT LEVER BRACKET (SEE  OVERHAUL  )
9. REMOVE STEERING COLUMN COVER (SEE  OVERHAUL  )
10. REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY (SEE  OVERHAUL  )
11. REMOVE FRONT DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
12. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
13. REMOVE COWL SIDE TRIM BOARD LH (SEE  REPLACEMENT  )
14. REMOVE COWL SIDE TRIM BOARD RH (SEE  REPLACEMENT  )
15. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
    1. Remove the 2 screws.
    2. Disengage the 4 clips and then remove the instrument cluster finish panel assy center.

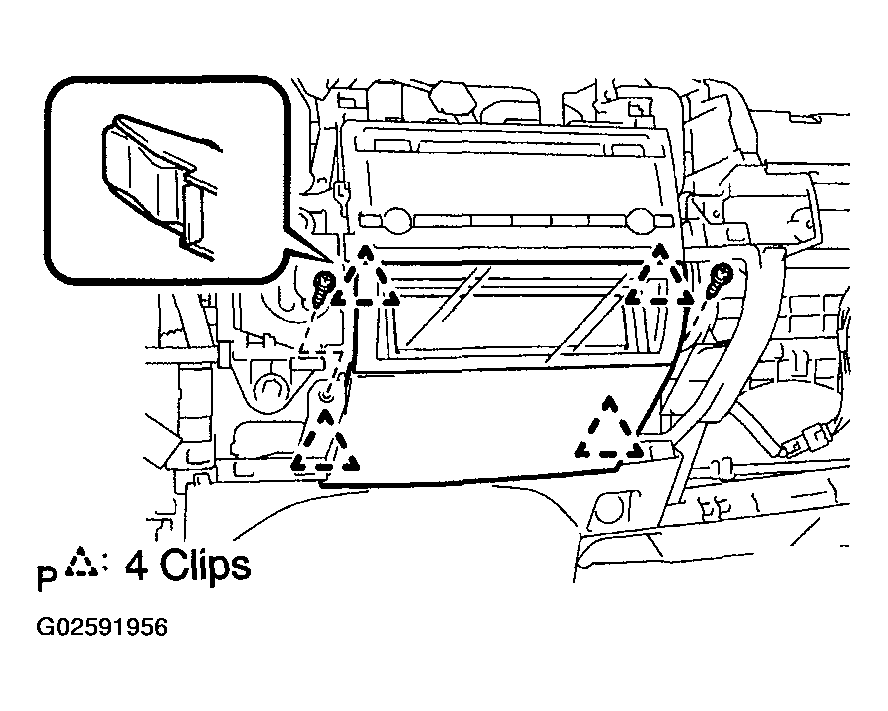

    Fig 2: Disengaging 4 Clips

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE CENTER CLUSTER CUSHION NO.1
17. REMOVE RADIO RECEIVER ASSY W/STEREO OPENING COVER (SEE  RADIO RECEIVER ASSY  )
18. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Using a clip remover, remove the clip from the instrument panel finish panel lower center.
    2. Disengage the 4 claws and the 2 clips, and then remove the instrument panel finish panel lower center.

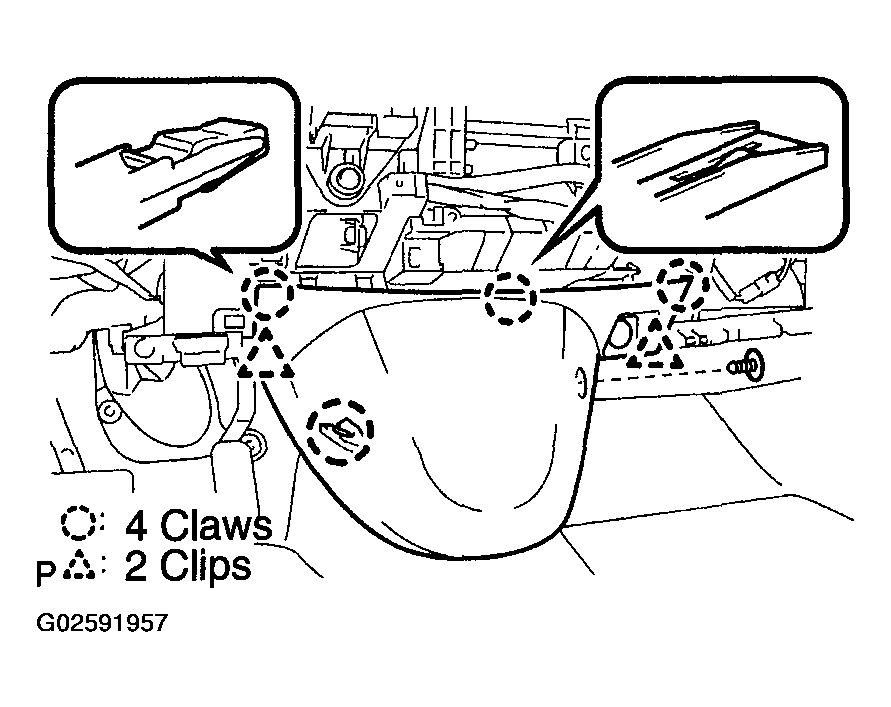

    Fig 3: Disengaging 4 Claws And 2 Clips

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER
    1. Disengage the 6 claws and then remove the glove compartment door lock cover.

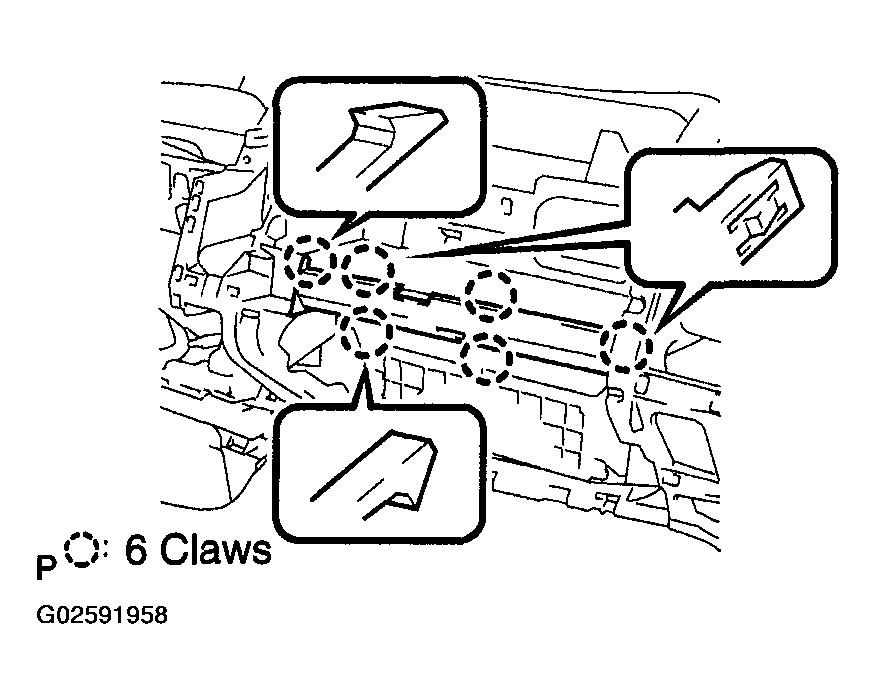

    Fig 4: Disengaging 6 Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSY
    1. Remove the 4 screws and then the glove compartment door lock assy.

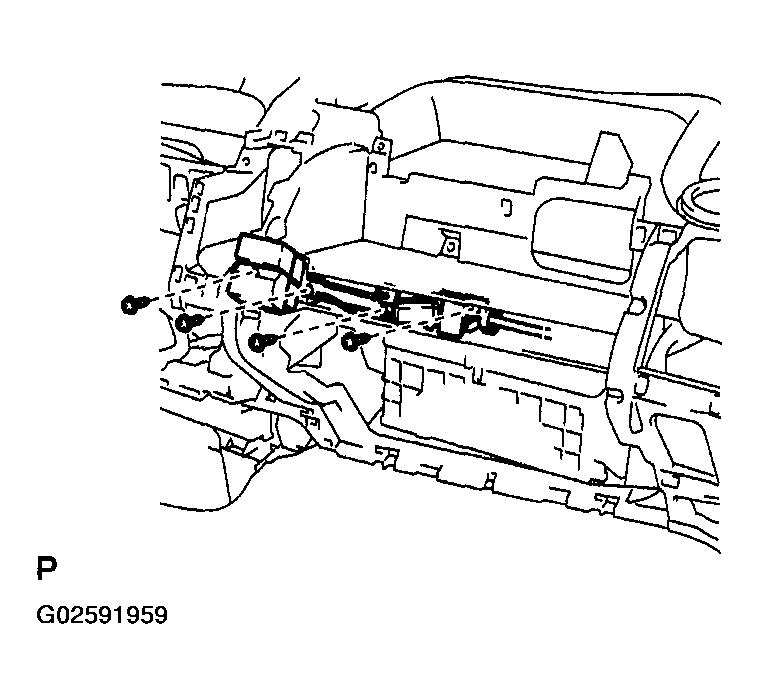

    Fig 5: Removing 4 Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
    1. Disengage the 4 claws and then remove the instrument panel finish panel lower.

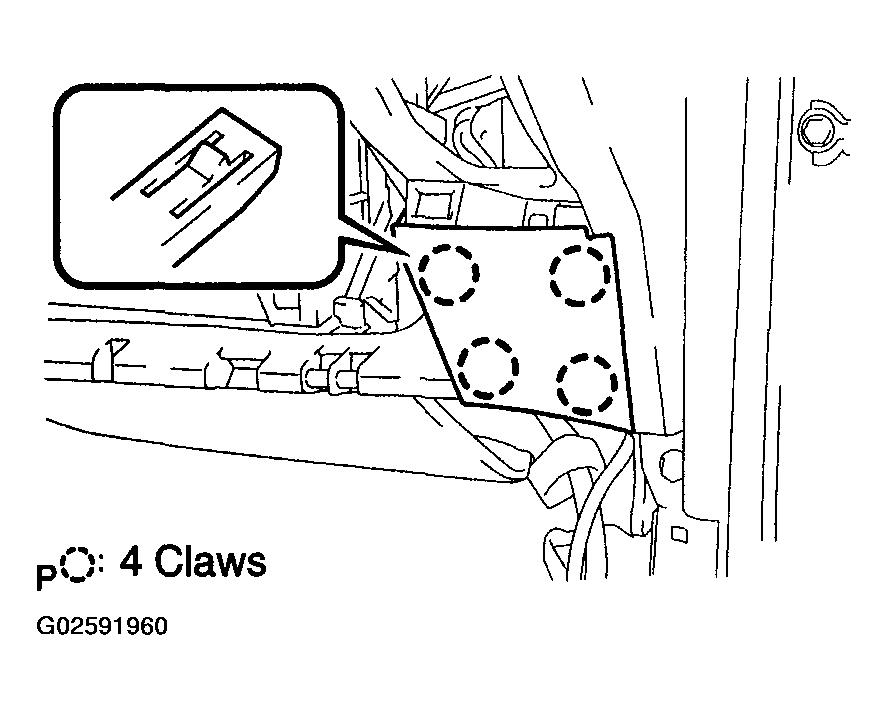

    Fig 6: Disengaging 4 Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
    1. Disengage the 2 claws and then remove the instrument panel under cover sub-assy No.1.

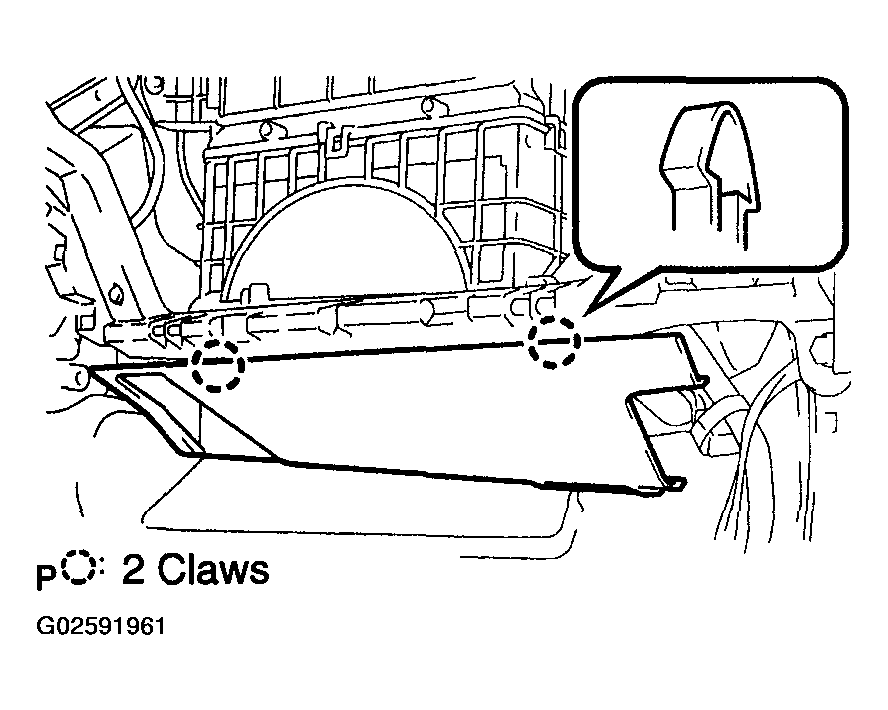

    Fig 7: Disengaging 2 Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE POWER STEERING ECU ASSY (SEE  POWER STEERING ECU ASSY  )
24. REMOVE SHIFT LEVER ASSY LWR (SEE  OVERHAUL  )
25. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
    1. Using a clip remover, remove the 8 clips from the duct and the instrument panel sub-assy lower.
    2. Remove the 4 bolts < F >, and the 2 bolts < G >.
    3. Remove the screw, and the screw < H >.
    4. Disconnect all connectors, and disengage all clamps. Make sure the wire harness is not caught on anything, and then remove the instrument panel sub-assy lower.

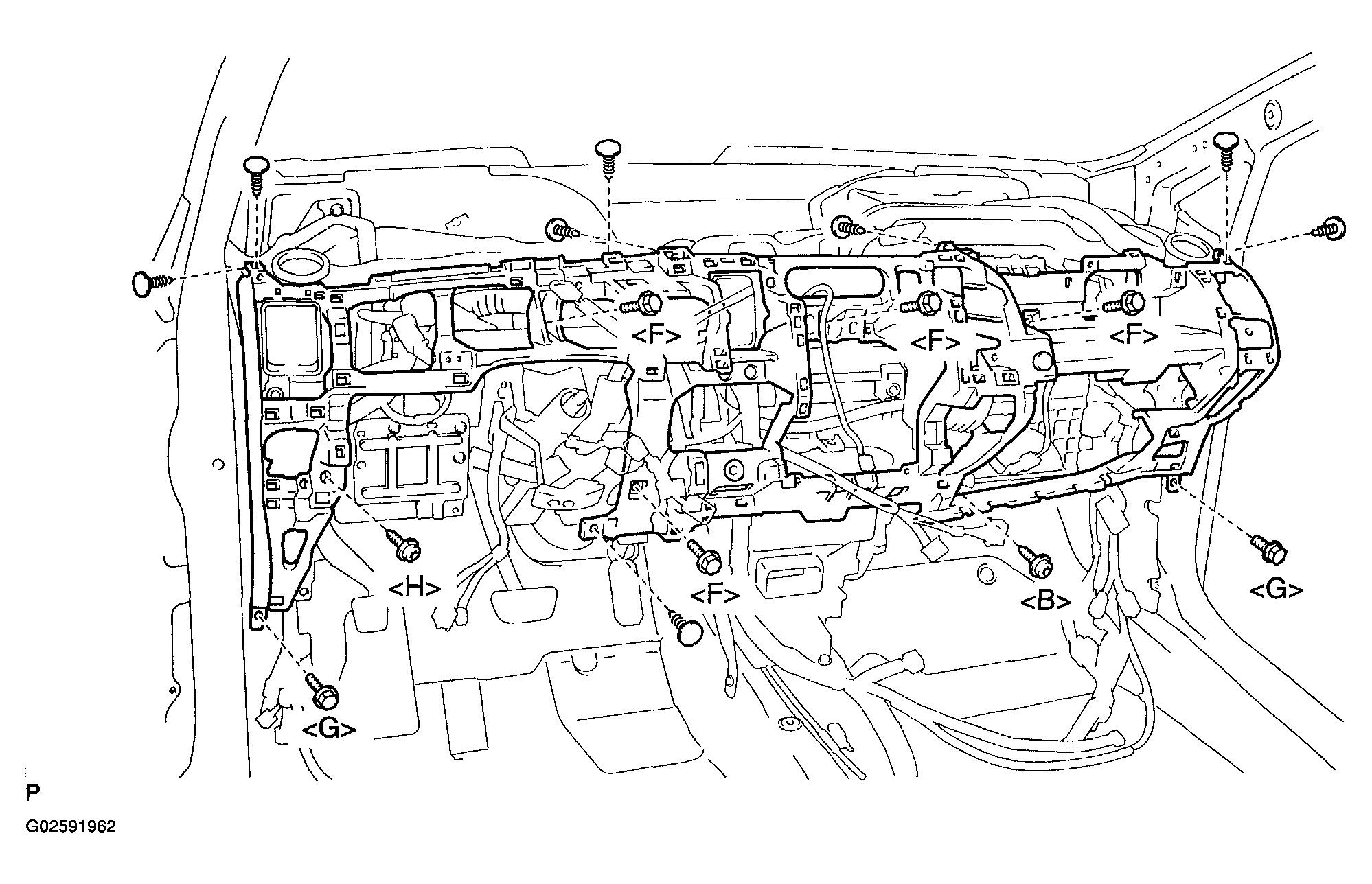

    Fig 8: Removing Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. REMOVE GLOVE COMPARTMENT PLATE
    1. Remove the 2 screws.
    2. Disengage the 2 claws and then remove the glove compartment plate.
27. REMOVE INSTRUMENT PANEL CUSHION LOWER NO.1
28. INSTALL SHIFT LEVER ASSY LWR (SEE  OVERHAUL  )
29. INSTALL POWER STEERING ECU ASSY (SEE  POWER STEERING ECU ASSY  )
30. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY   )
31. INSTALL TILT LEVER BRACKET (SEE  OVERHAUL  )
32. ADJUST SPIRAL CABLE SUB-ASSY (SEE  SPIRAL CABLE SUB-ASSY  )
33. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
34. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
35. CONNECT BATTERY NEGATIVE TERMINAL (SEE  BATTERY (1 NZ-FXE)  )
36. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION  )
37. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
38. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
39. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT (SEE  CALIBRATION  )
