Fuel Tank ASSY (1NZ-FXE): Components

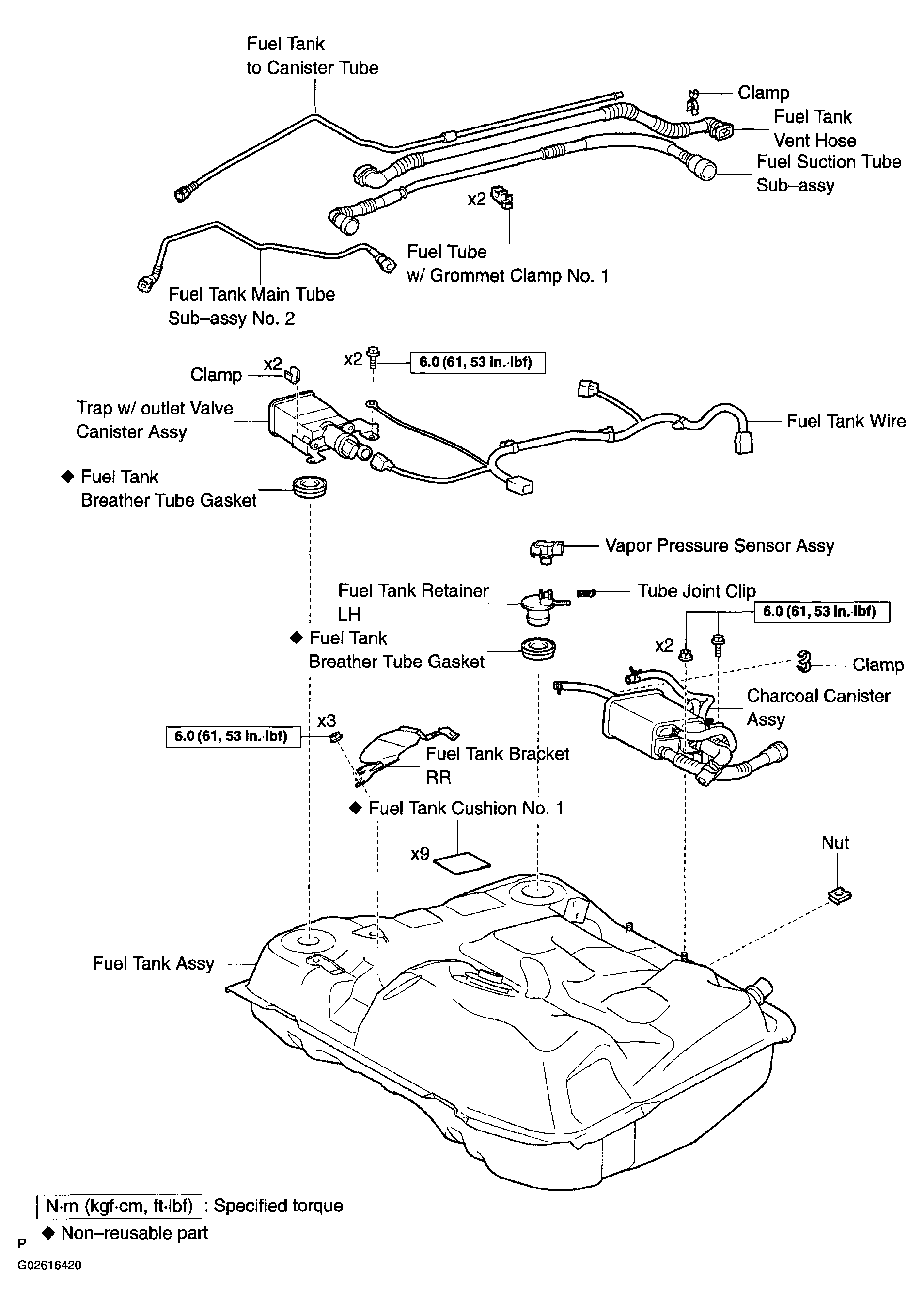

Fig 1: Fuel Tank Assy (1Nz-Fxe) Component And Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

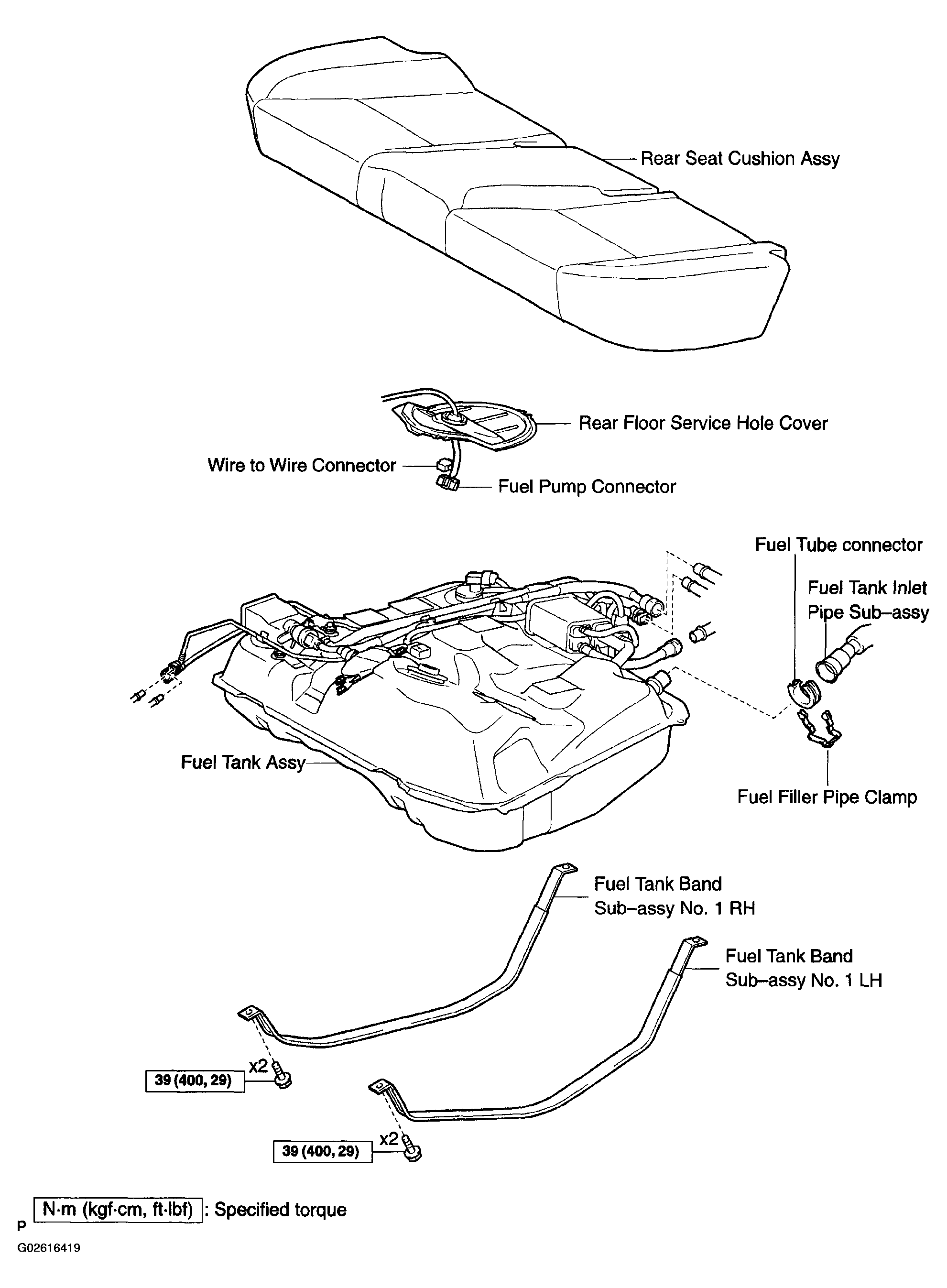

Fig 2: Fuel Tank Assy (1Nz-Fxe) Component And Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fuel Tank Assy (1Nz-Fxe) Component And Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
