Knock Sensor (1NZ-FXE): Components

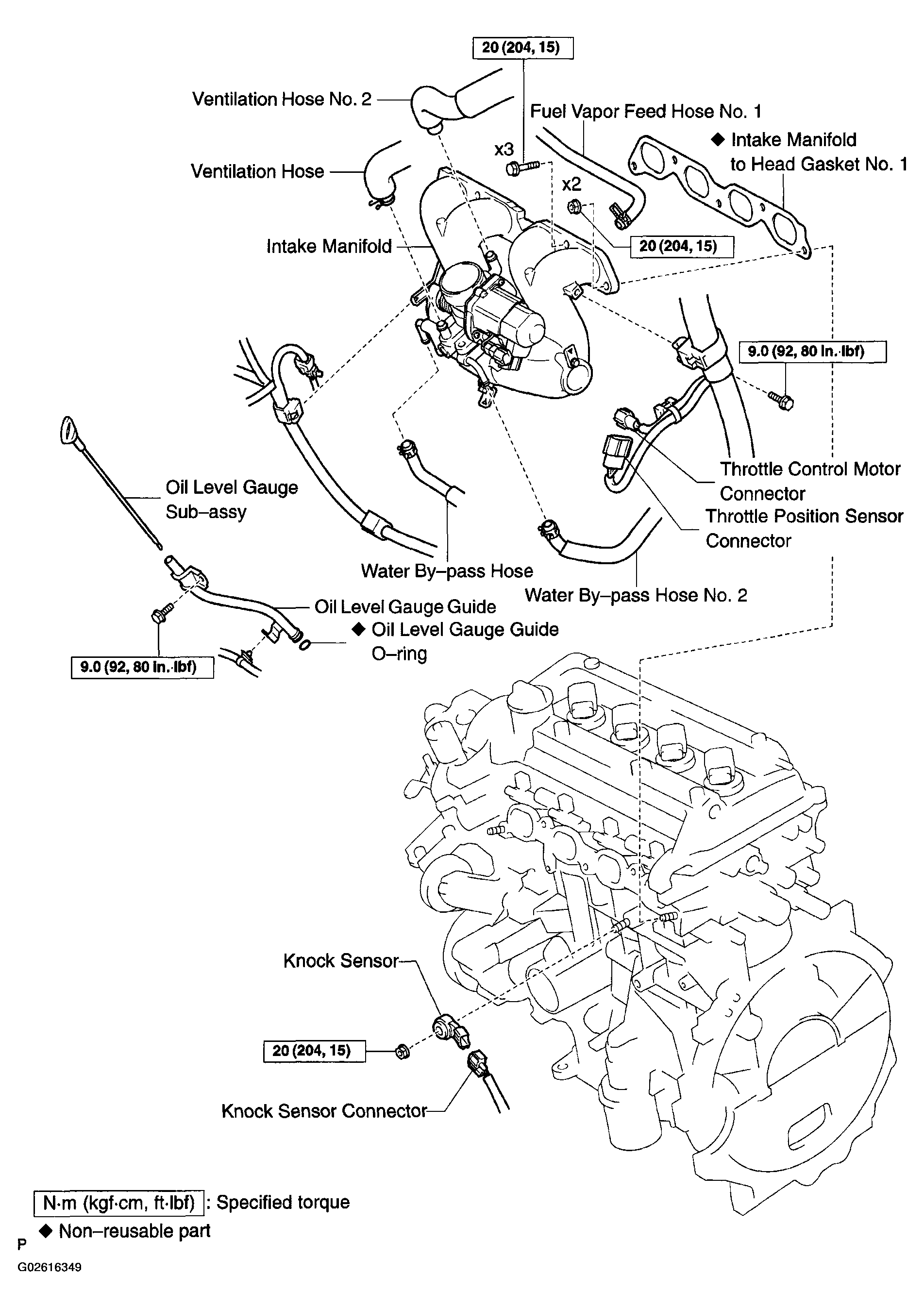

Fig 1: Identifying Knock Sensor Component (1NZ-FXE - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Knock Sensor Component (1NZ-FXE - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
