SFI System (1NZ-FXE): Location

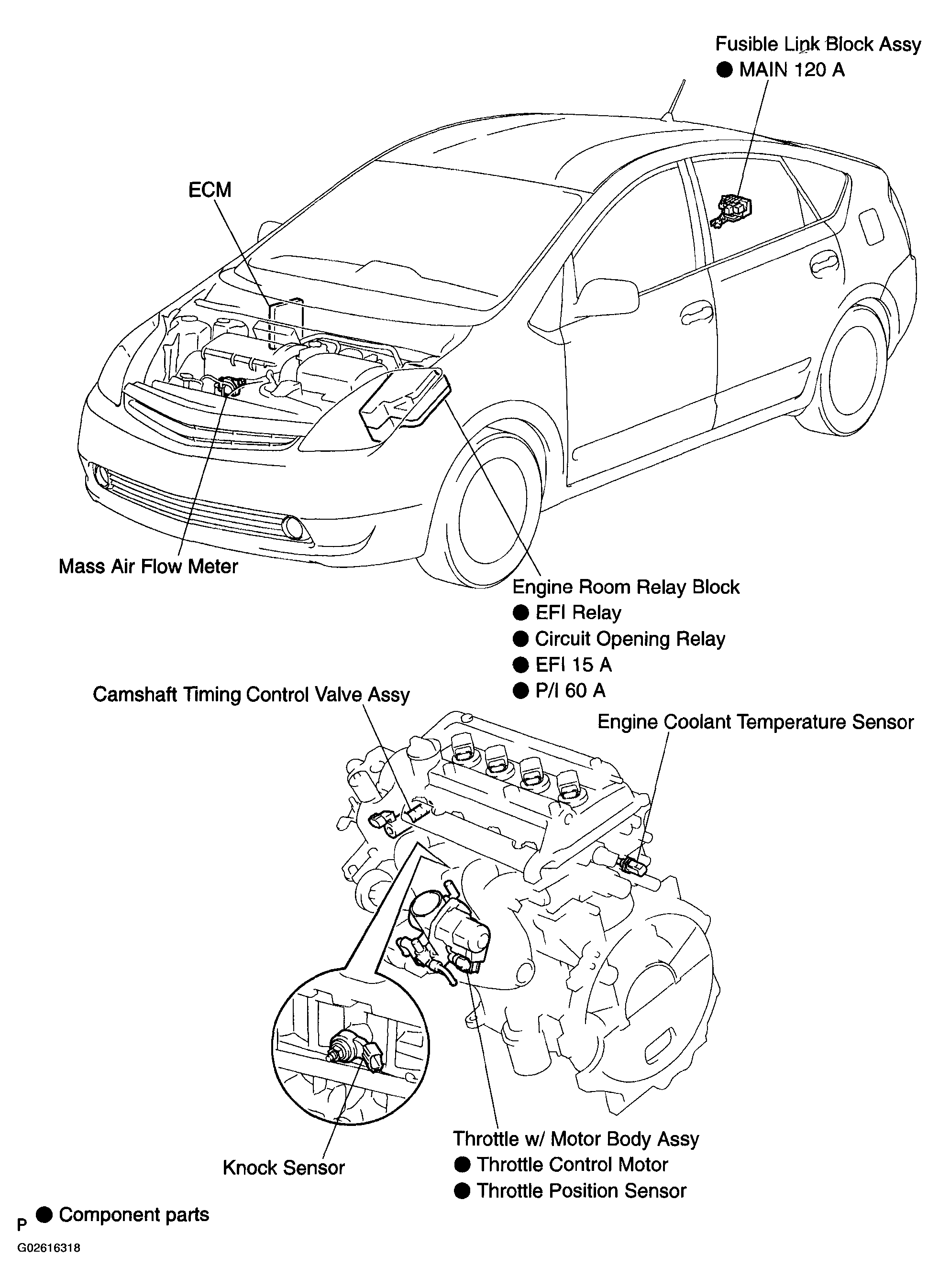

Fig 1: Identifying SFI System (1NZ-FXE) Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
