Engine Control System
›
SFI System (1NZ-FXE)
›
System Diagram
System Diagram
The engine control system is determined by the ECM based on signals from various sensors.

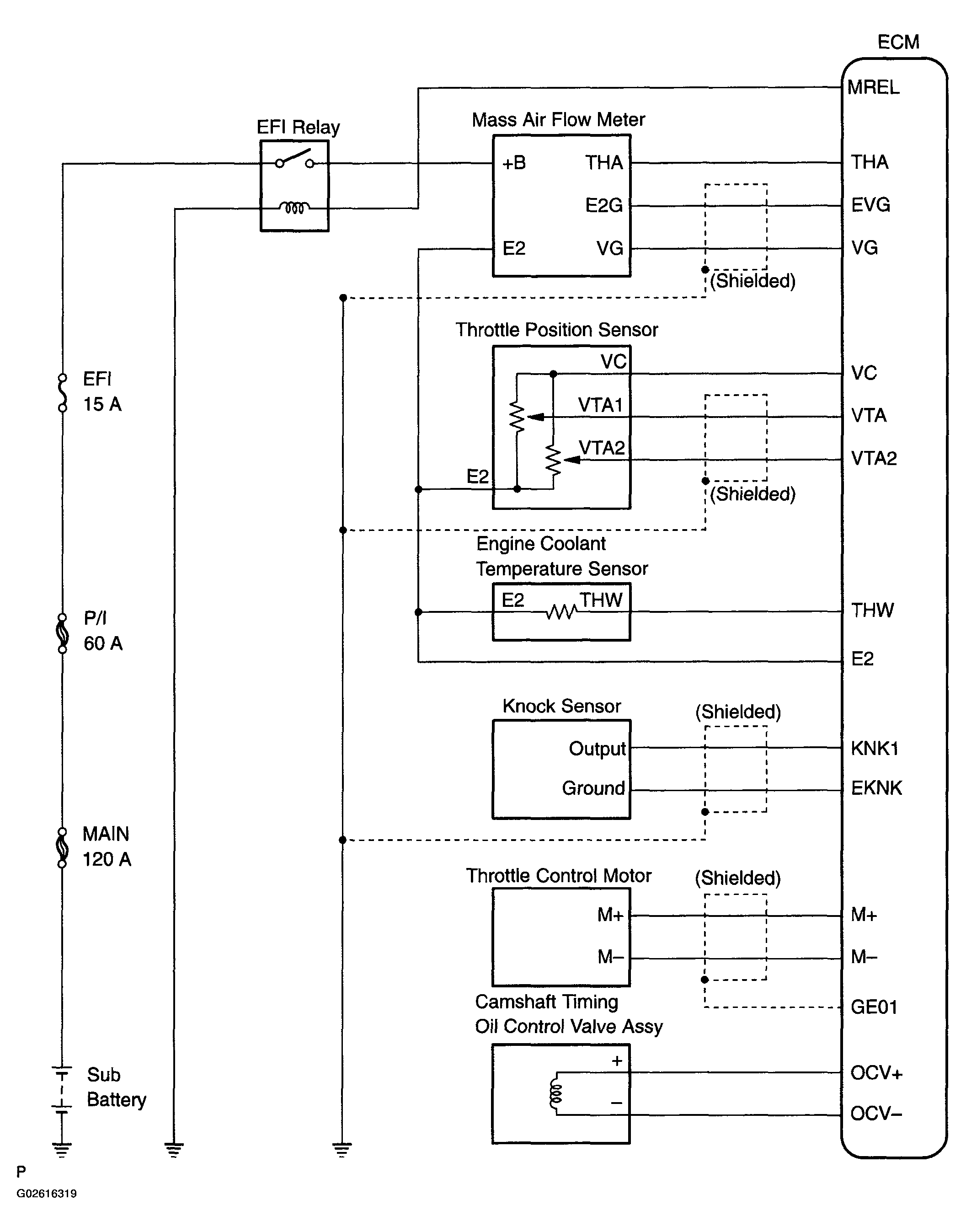

Fig 1: Engine Control System Diagram
