Engine Control System (SFI) - Diagnostics
›
Freeze Frame Data
›
List Of Freeze Frame Data
List Of Freeze Frame Data

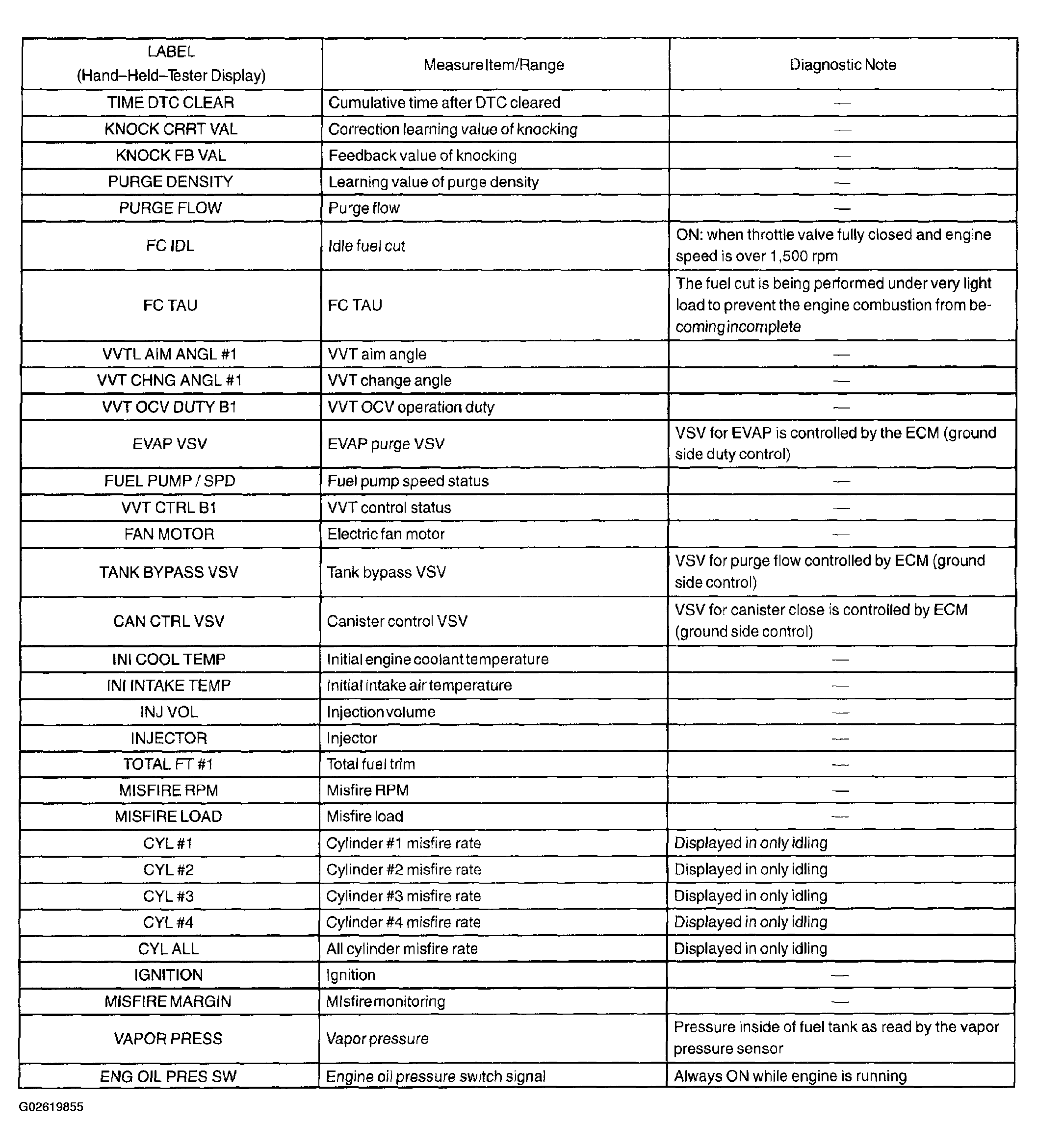

Fig 1: List Of Freeze Frame Data (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: List Of Freeze Frame Data (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
