Frame Wire: Components

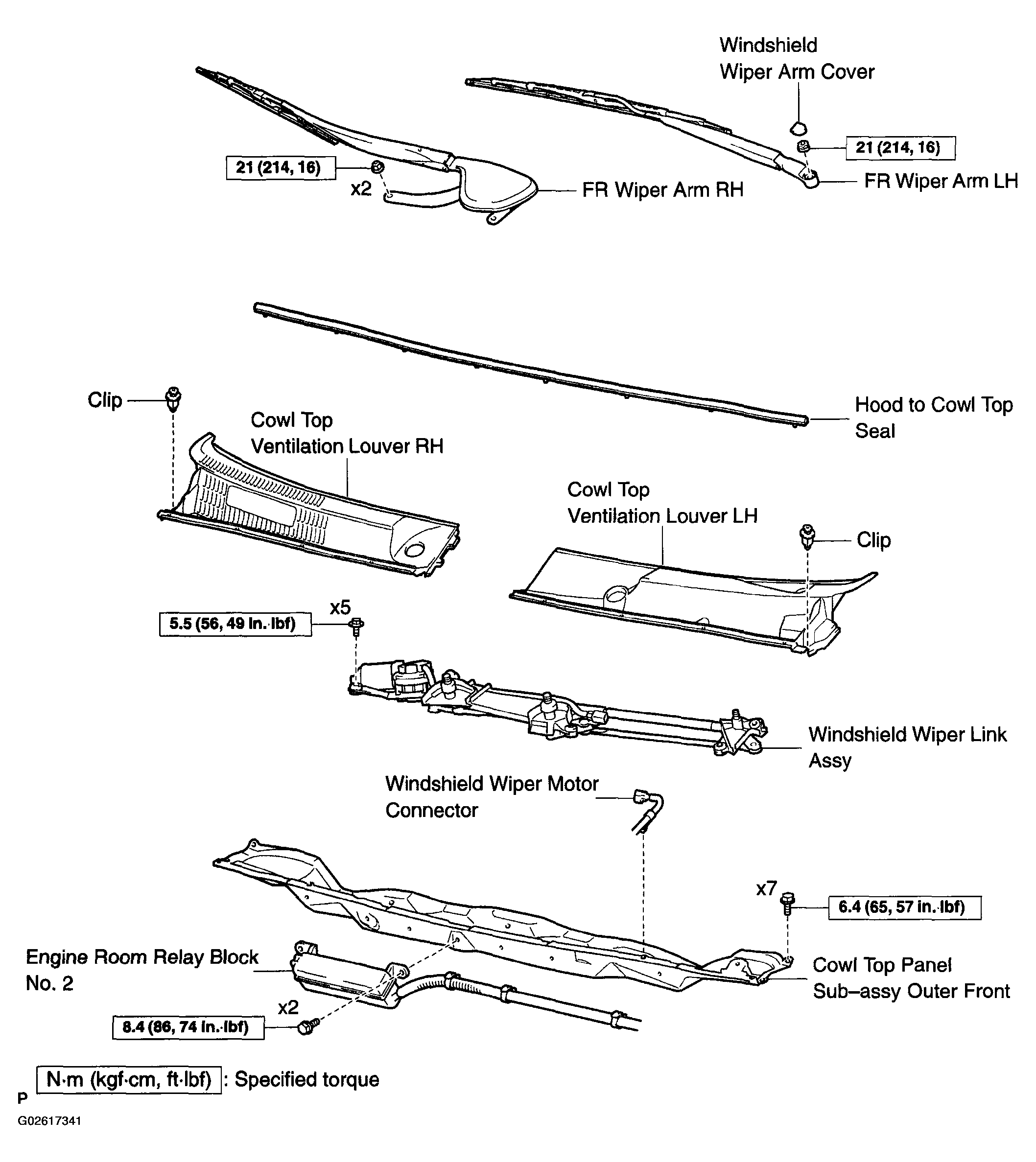

Fig 1: Frame Wire Replacement Components With Torque Specifications (1 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

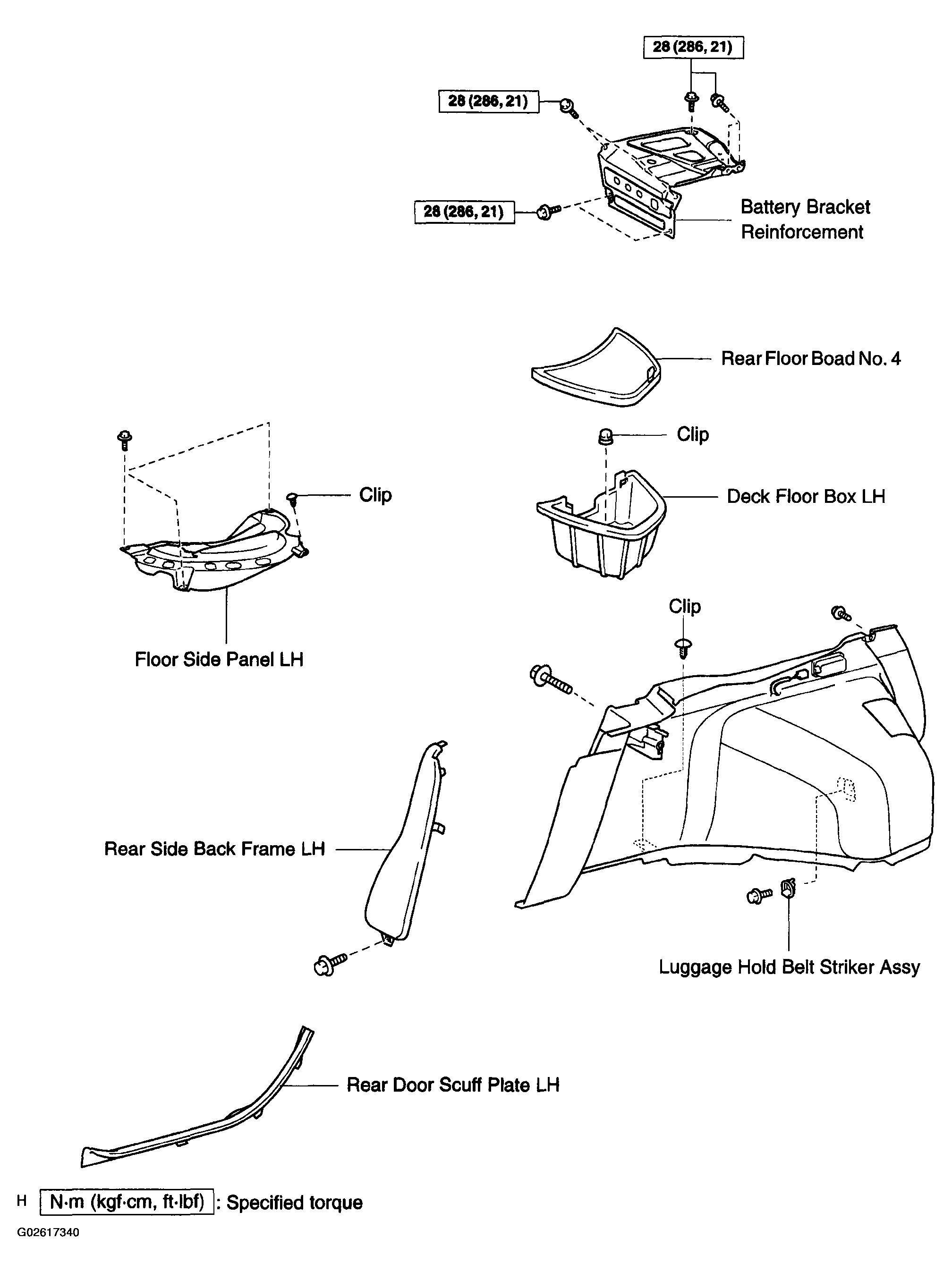

Fig 2: Frame Wire Replacement Components With Torque Specifications (2 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

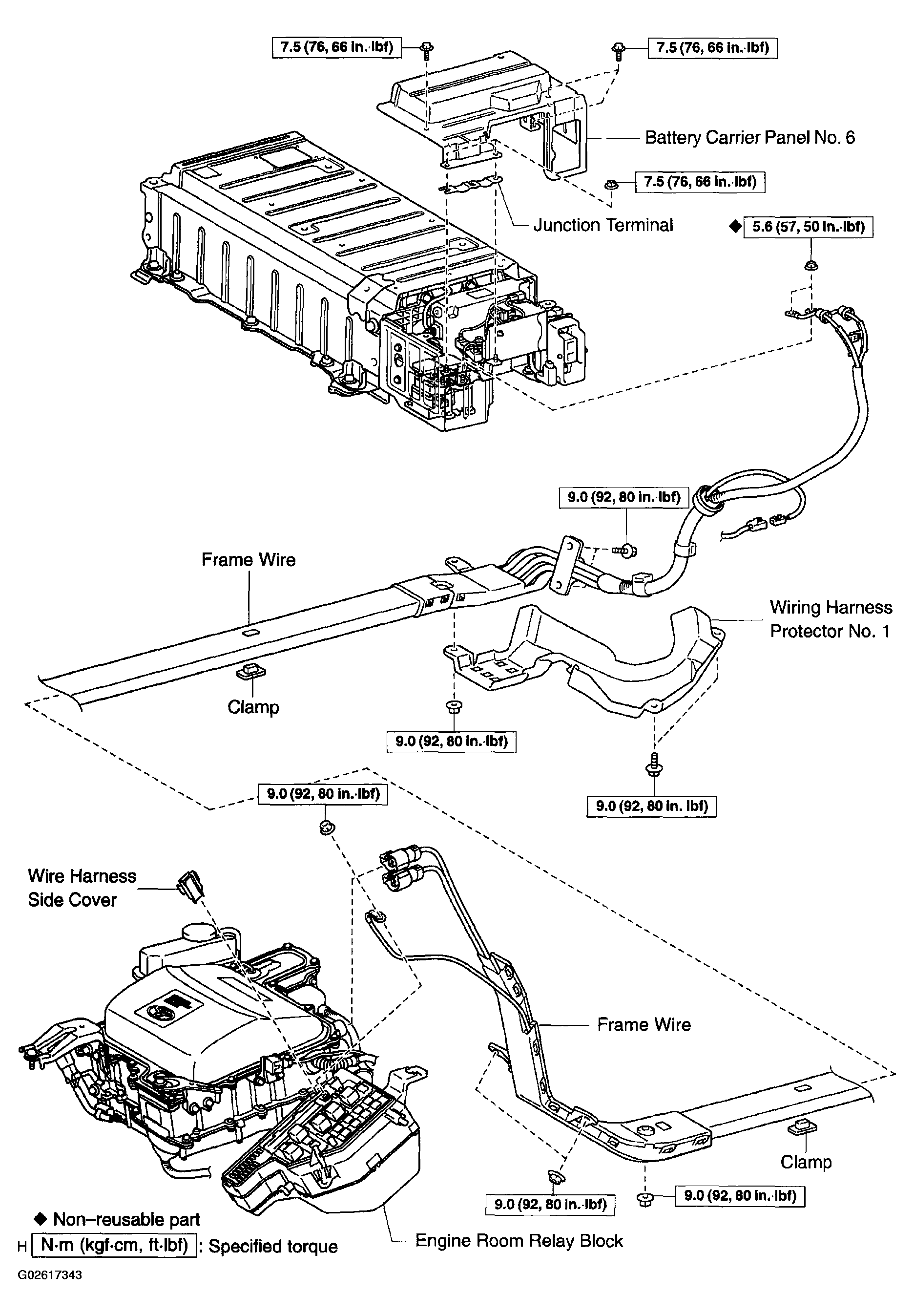

Fig 3: Frame Wire Replacement Components With Torque Specifications (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

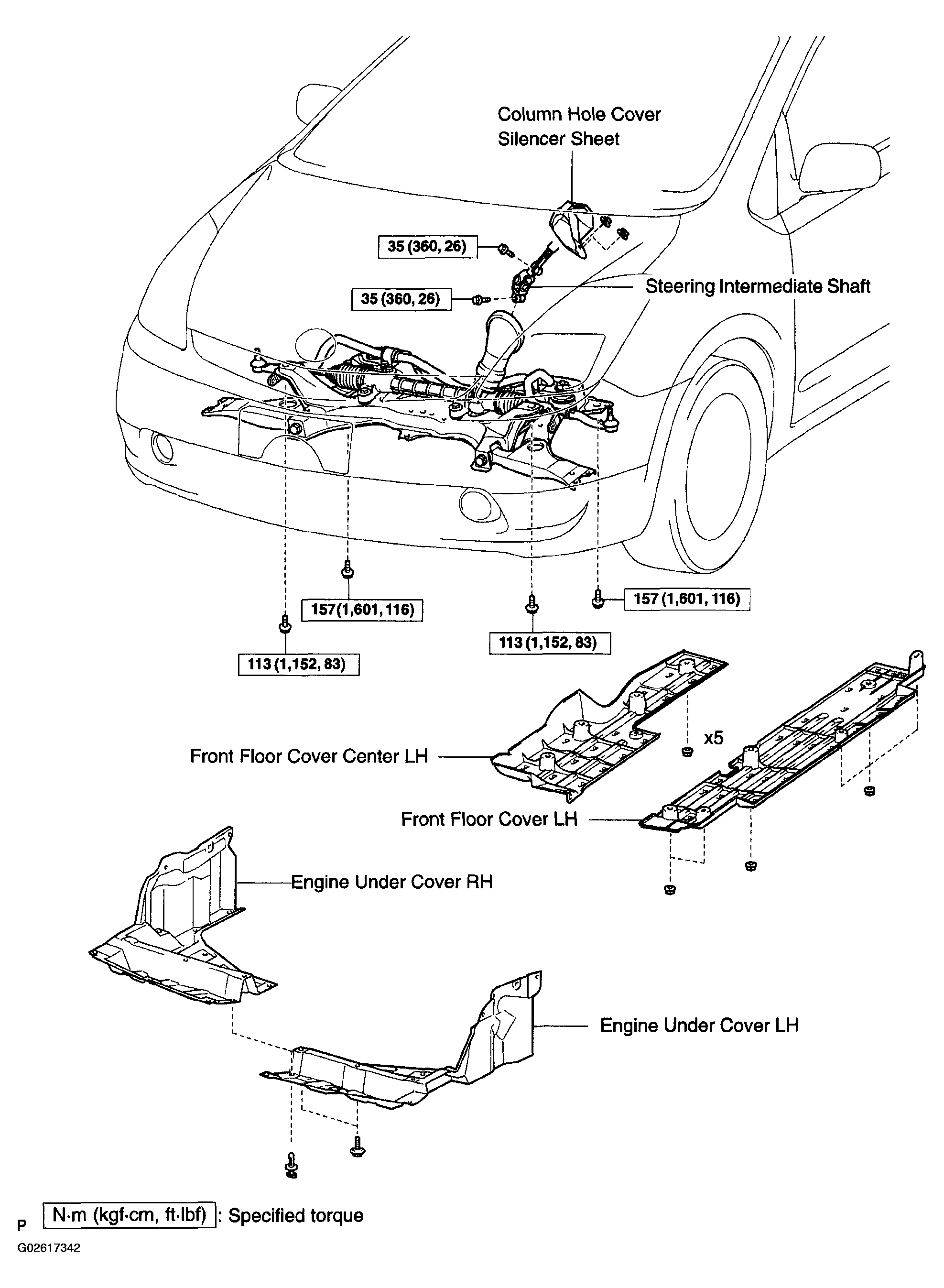

Fig 4: Frame Wire Replacement Components With Torque Specifications (4 of 6)

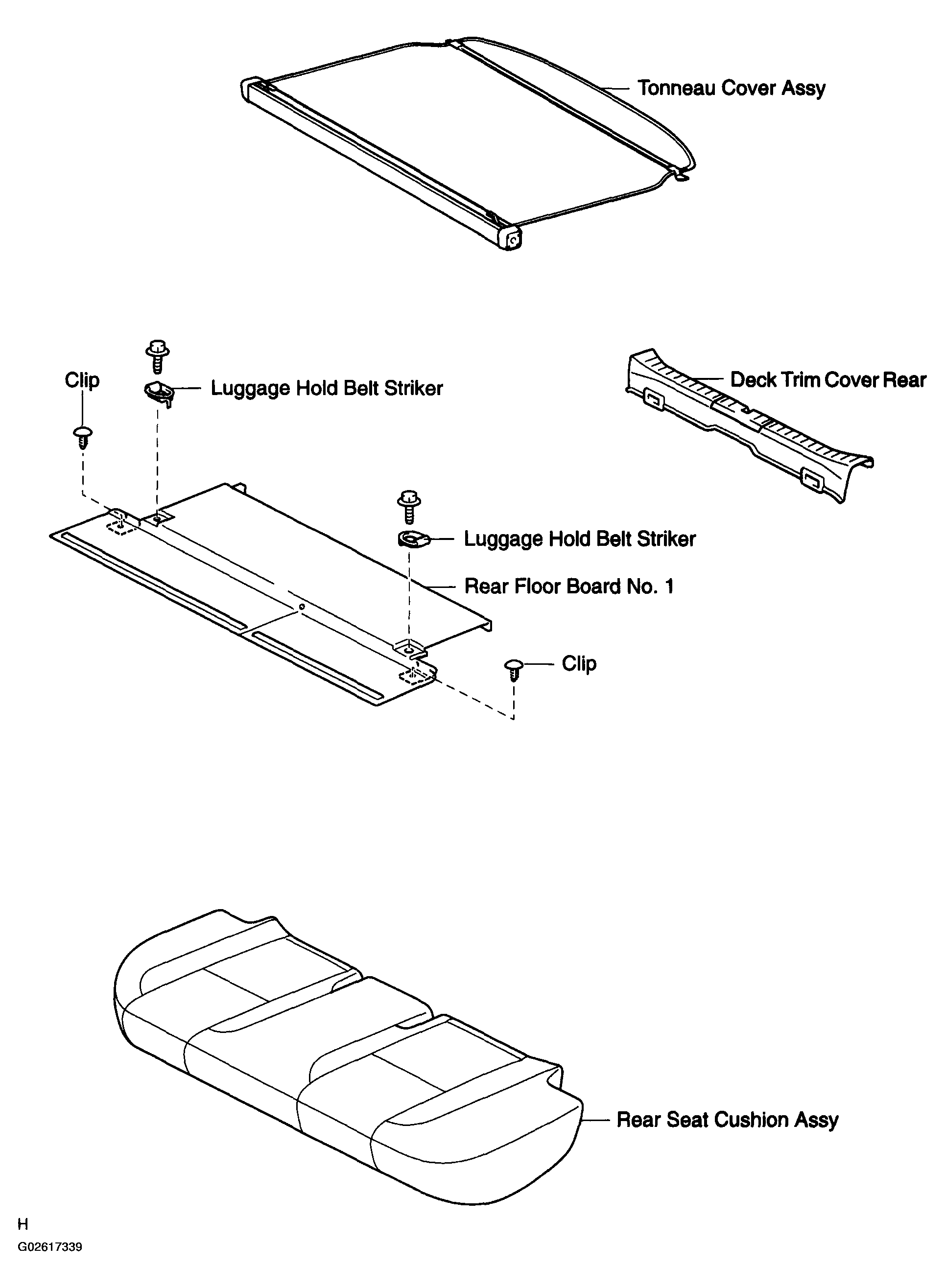

Fig 5: Frame Wire Replacement Components With Torque Specifications (5 of 6)

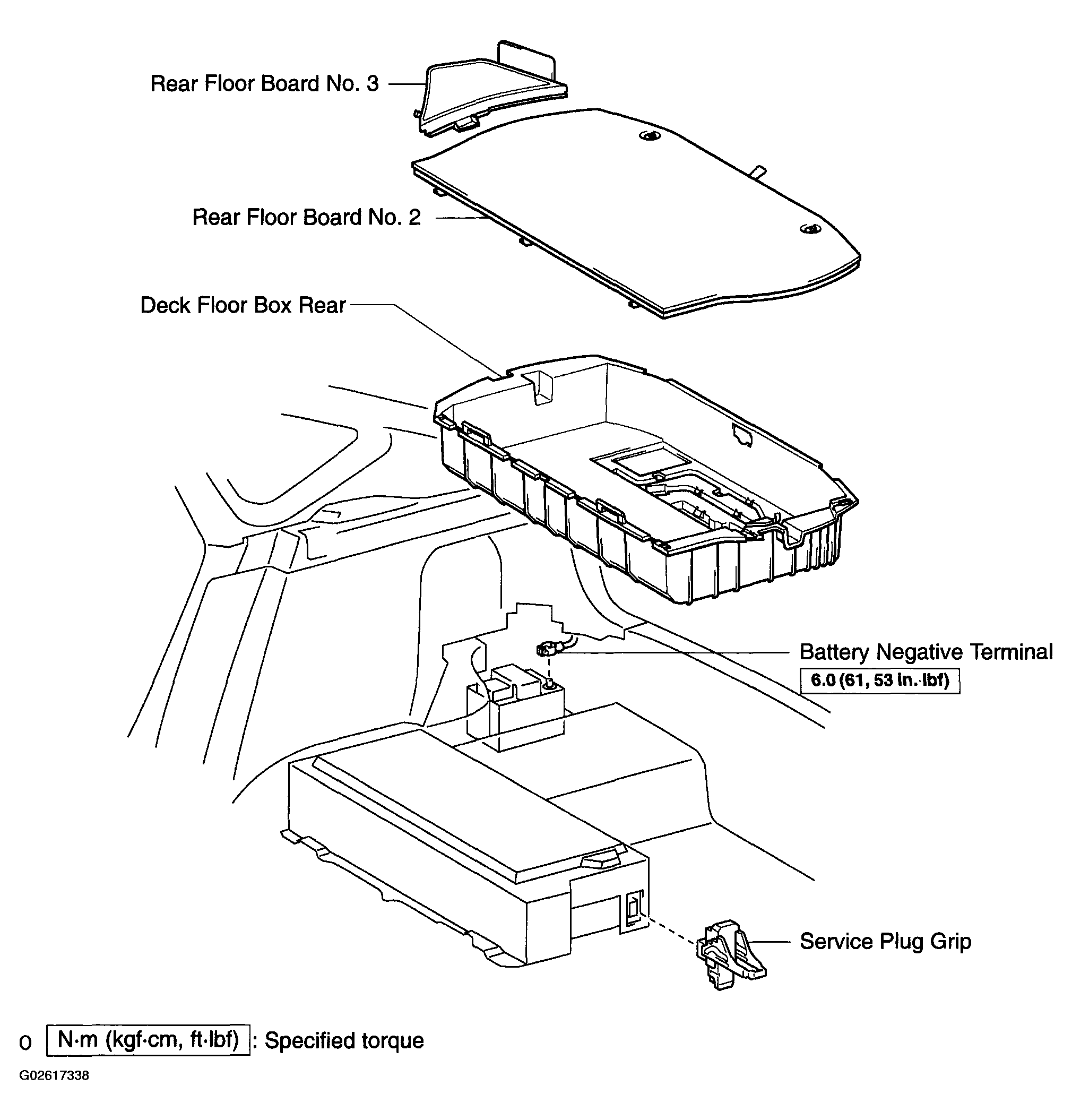

Fig 6: Frame Wire Replacement Components With Torque Specifications (6 of 6)
