HV Battery: Components

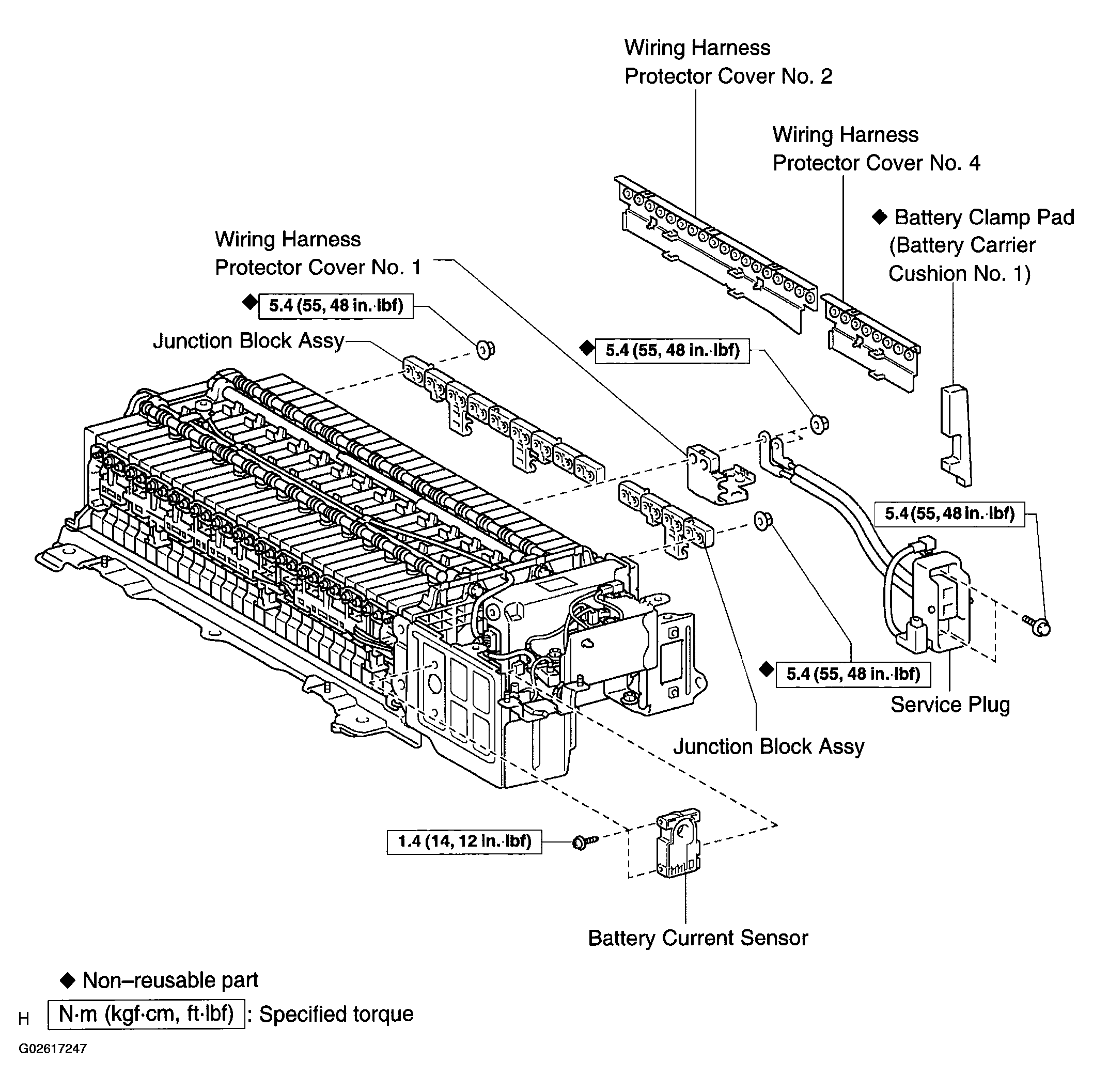

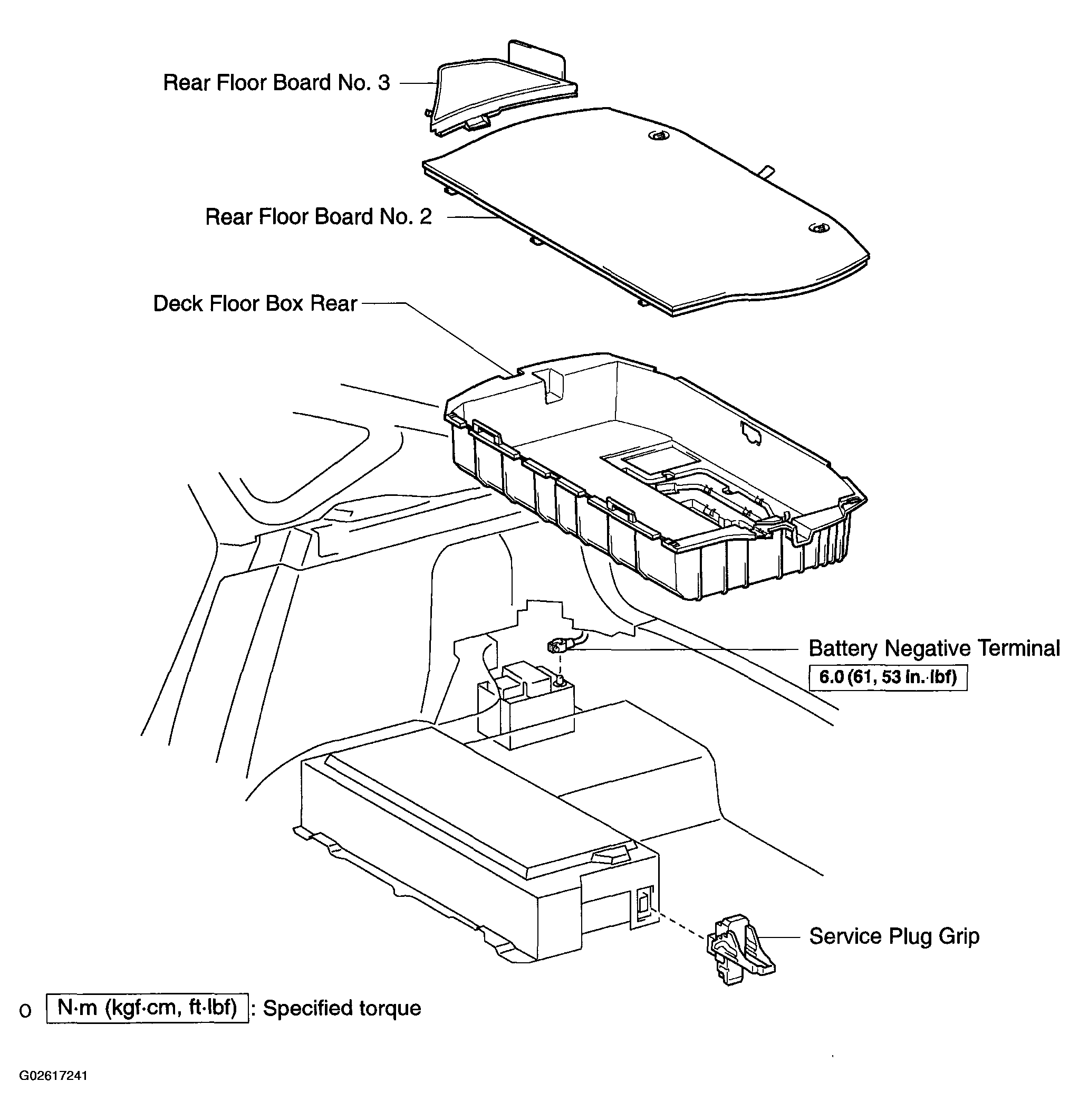

Fig 1: HV Battery Replacement Components With Torque Specifications (1 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

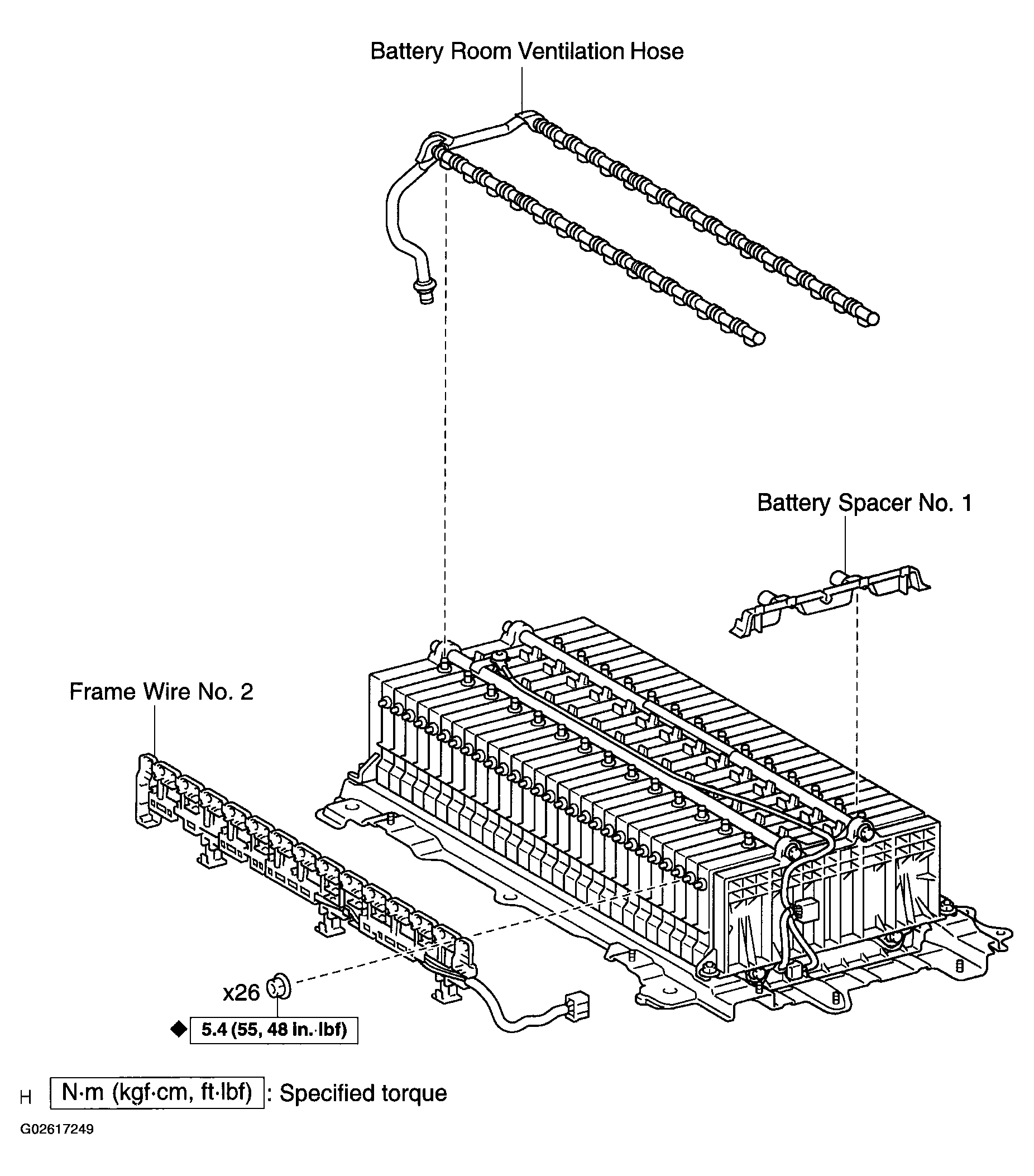

Fig 2: HV Battery Replacement Components With Torque Specifications (2 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

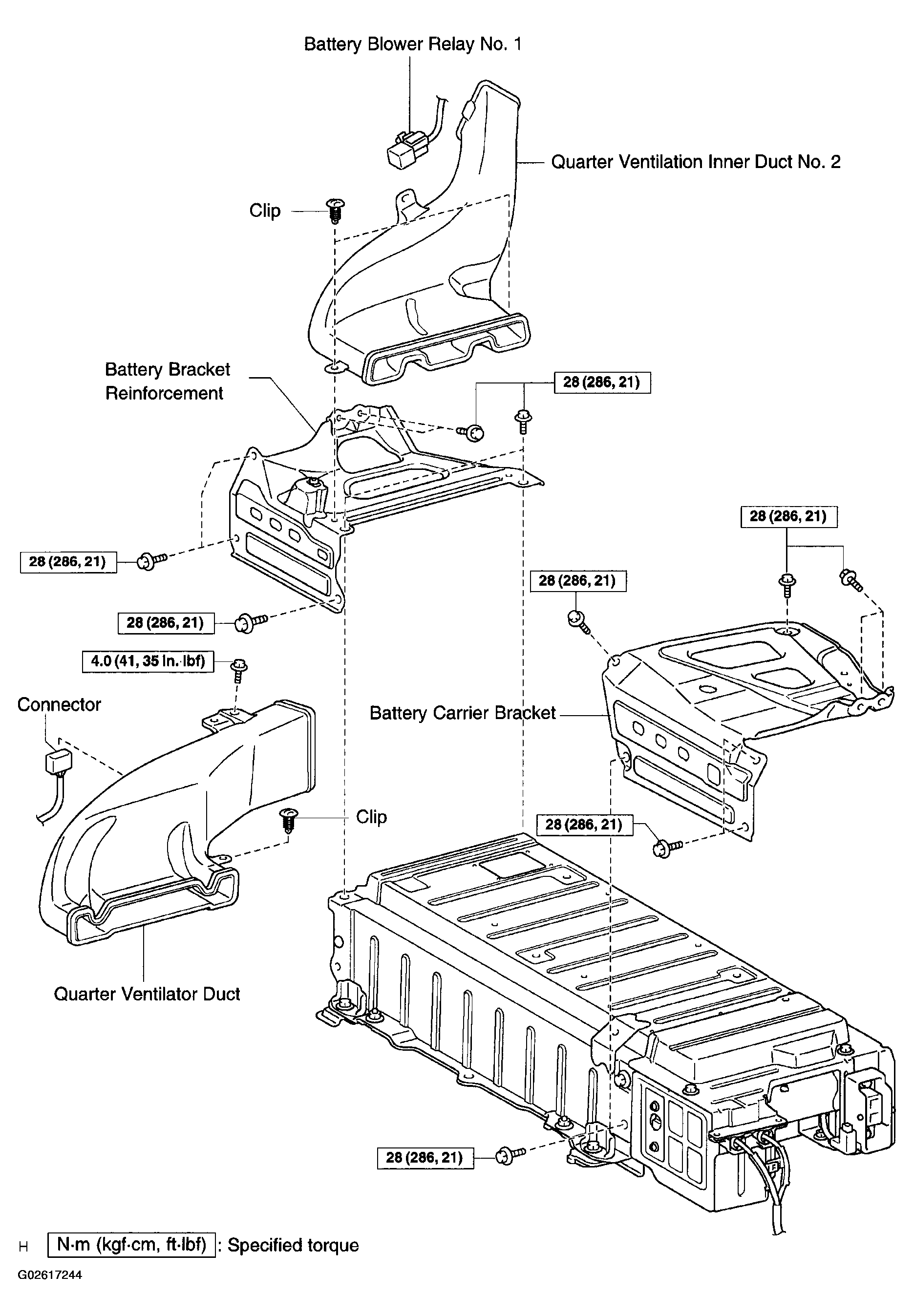

Fig 3: HV Battery Replacement Components With Torque Specifications (3 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

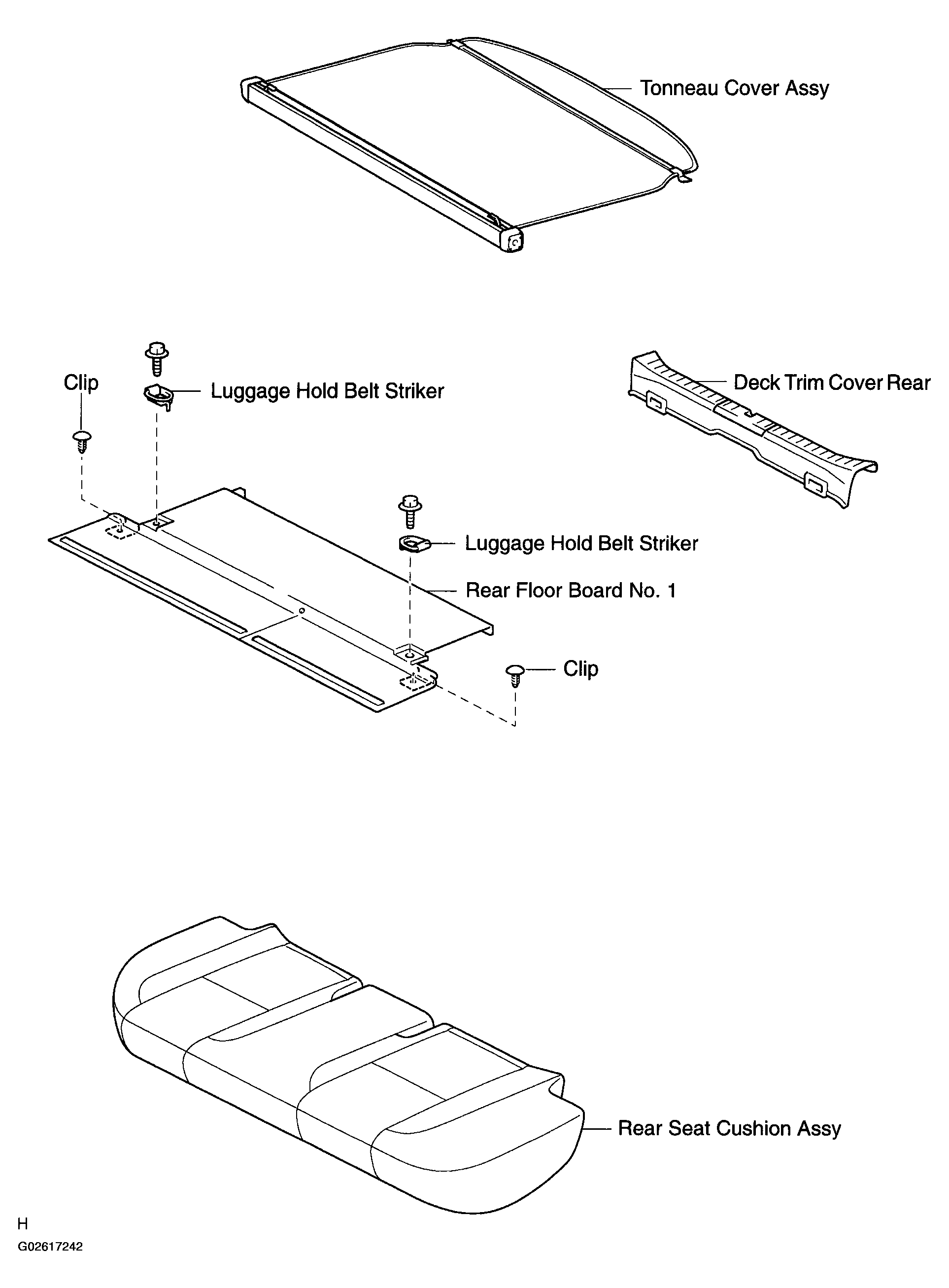

Fig 4: HV Battery Replacement Components With Torque Specifications (4 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

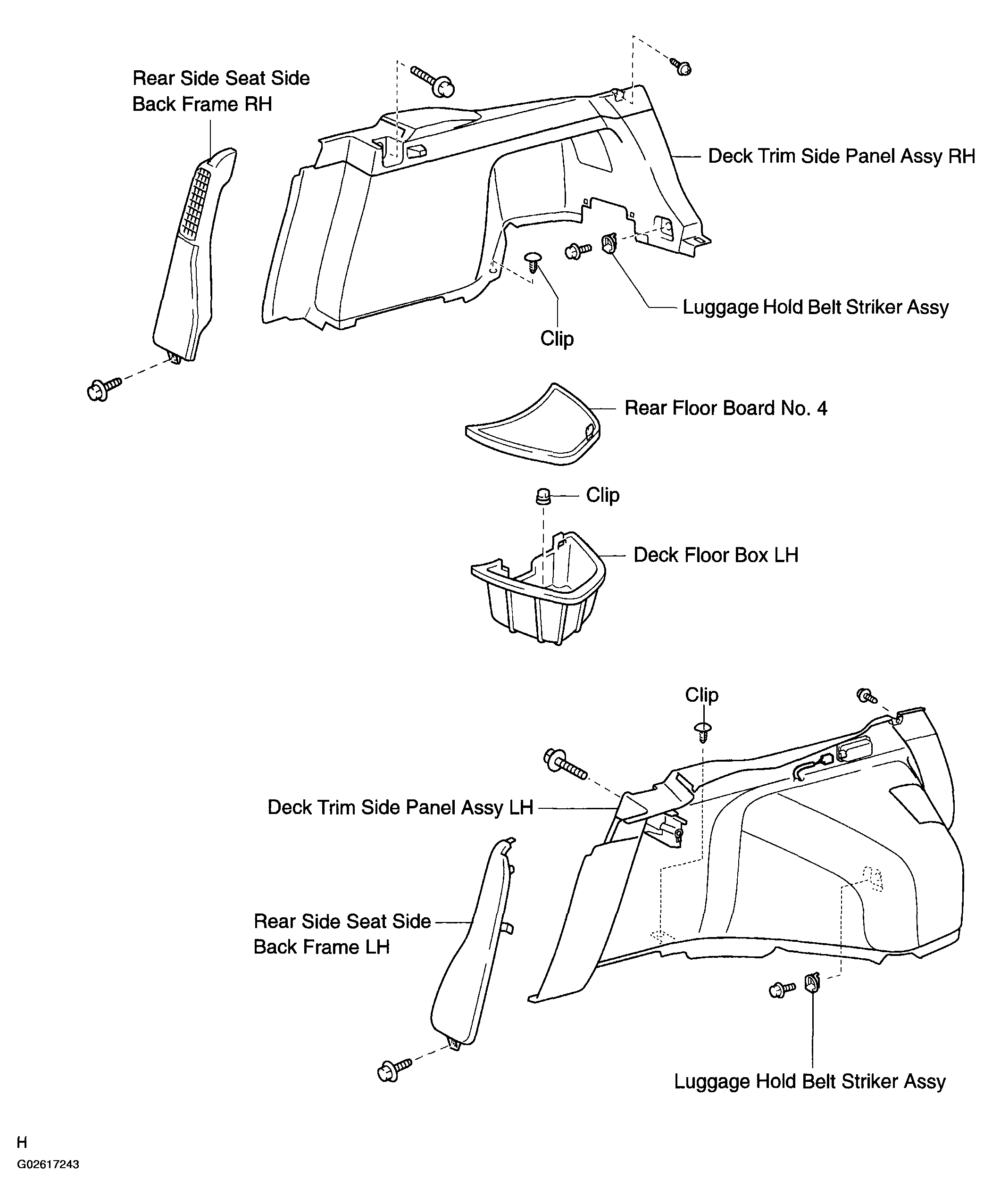

Fig 5: HV Battery Replacement Components With Torque Specifications (5 of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

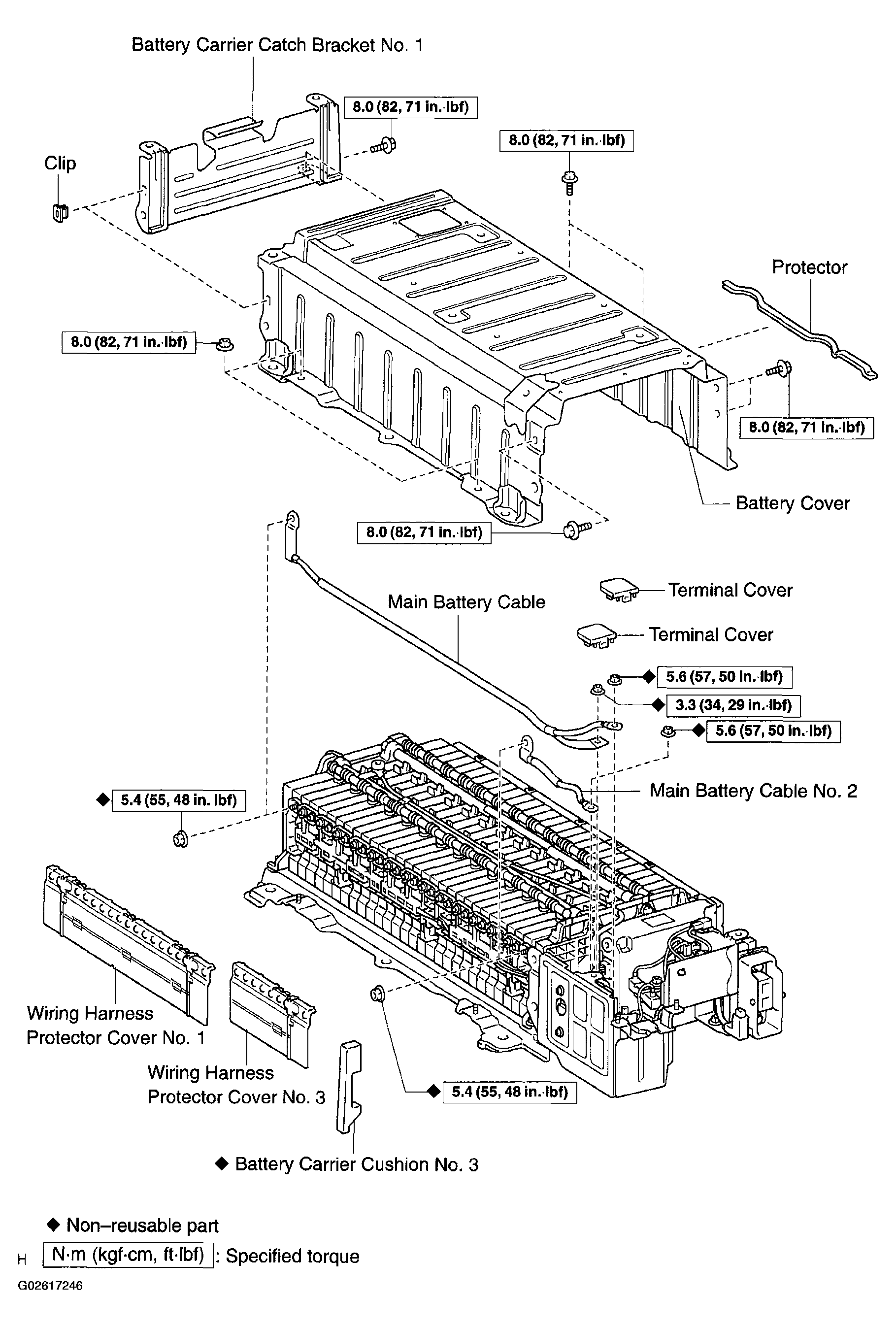

Fig 6: HV Battery Replacement Components With Torque Specifications (6 of 9)

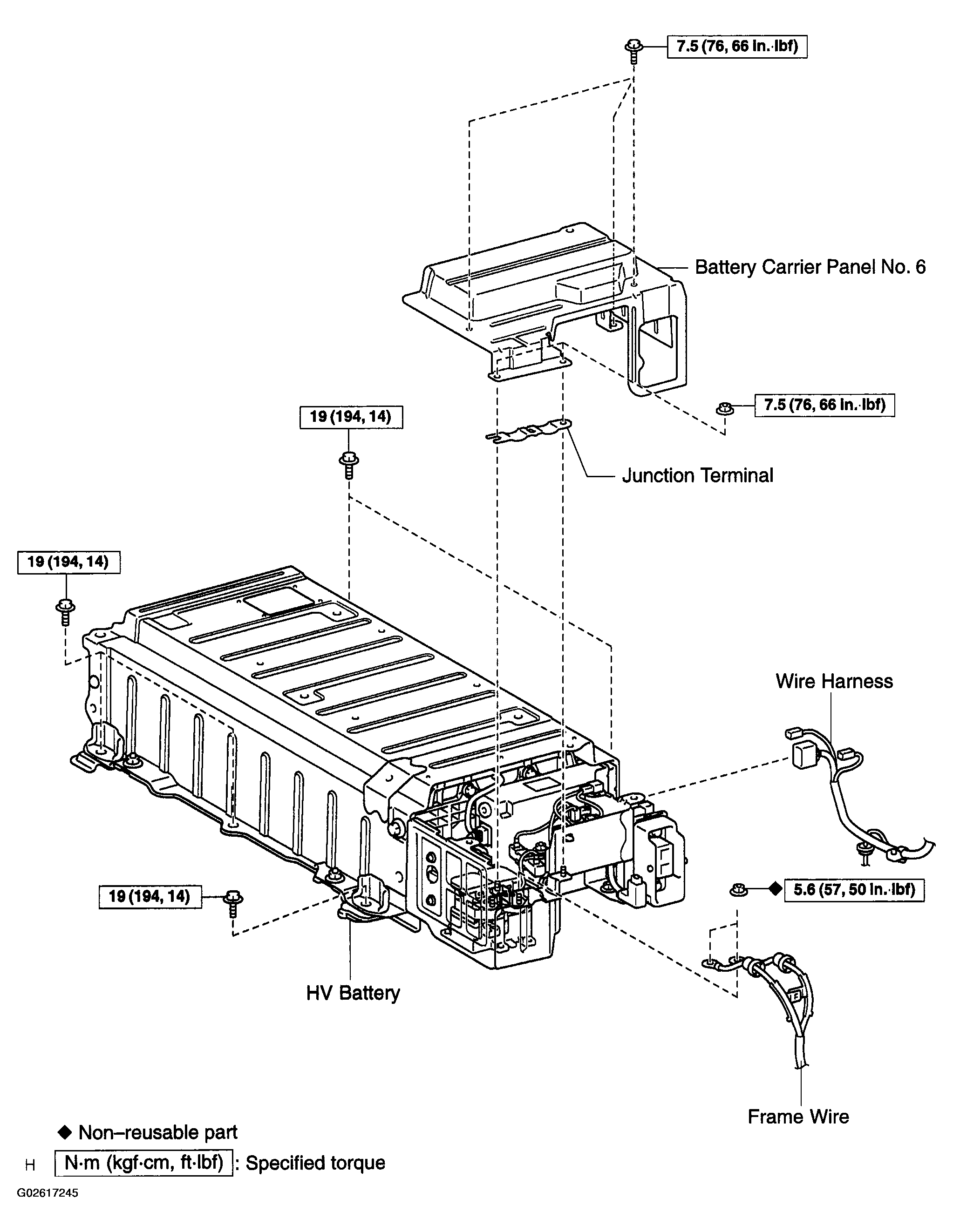

Fig 7: HV Battery Replacement Components With Torque Specifications (7 of 9)

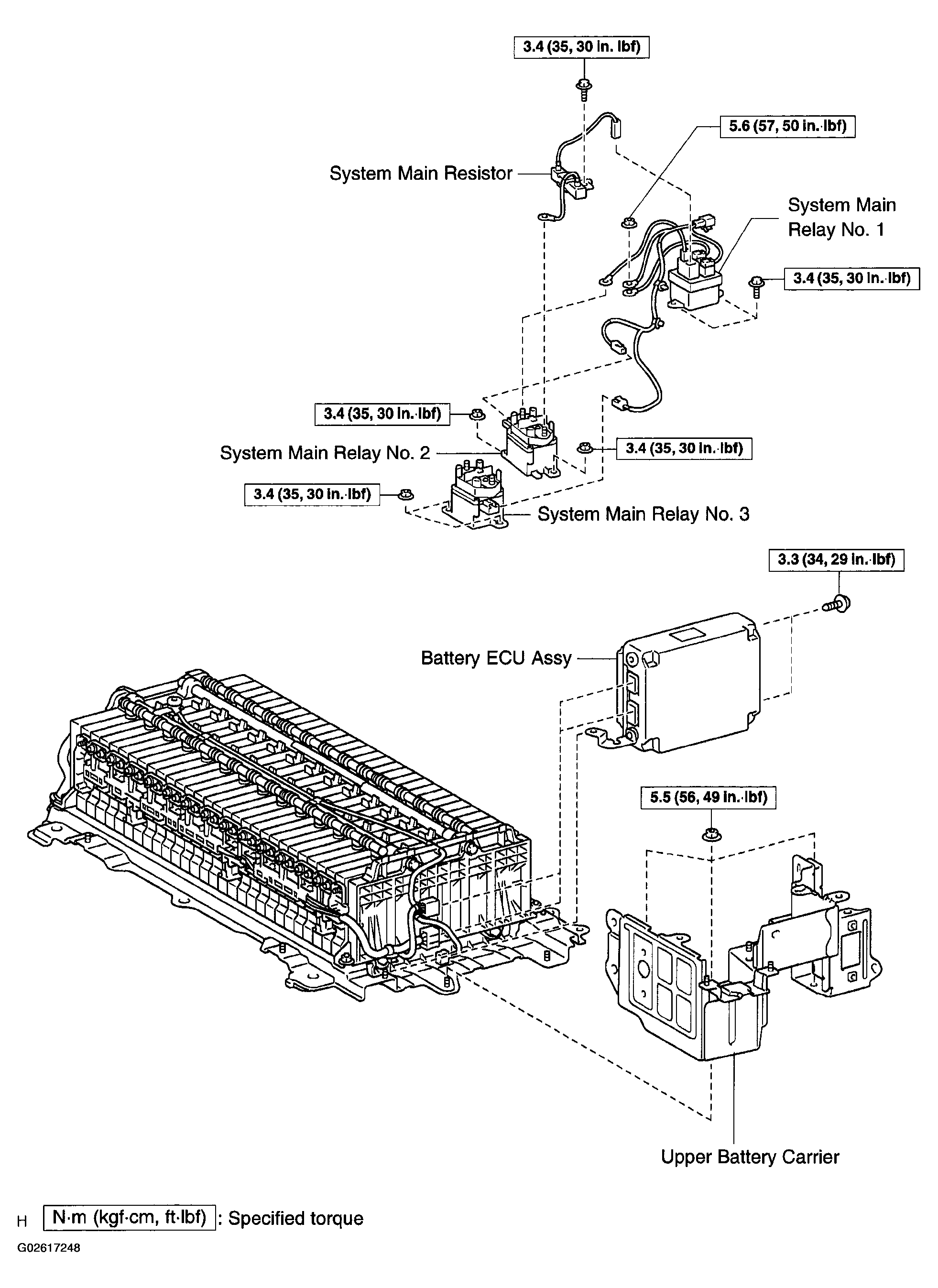

Fig 8: HV Battery Replacement Components With Torque Specifications (8 of 9)

Fig 9: HV Battery Replacement Components With Torque Specifications (9 of 9)
