Data List/Active Test

  1. DATA LIST
    1. Connect the hand-held tester to the DLC3.
    2. Turn the power switch on (IG).
    3. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

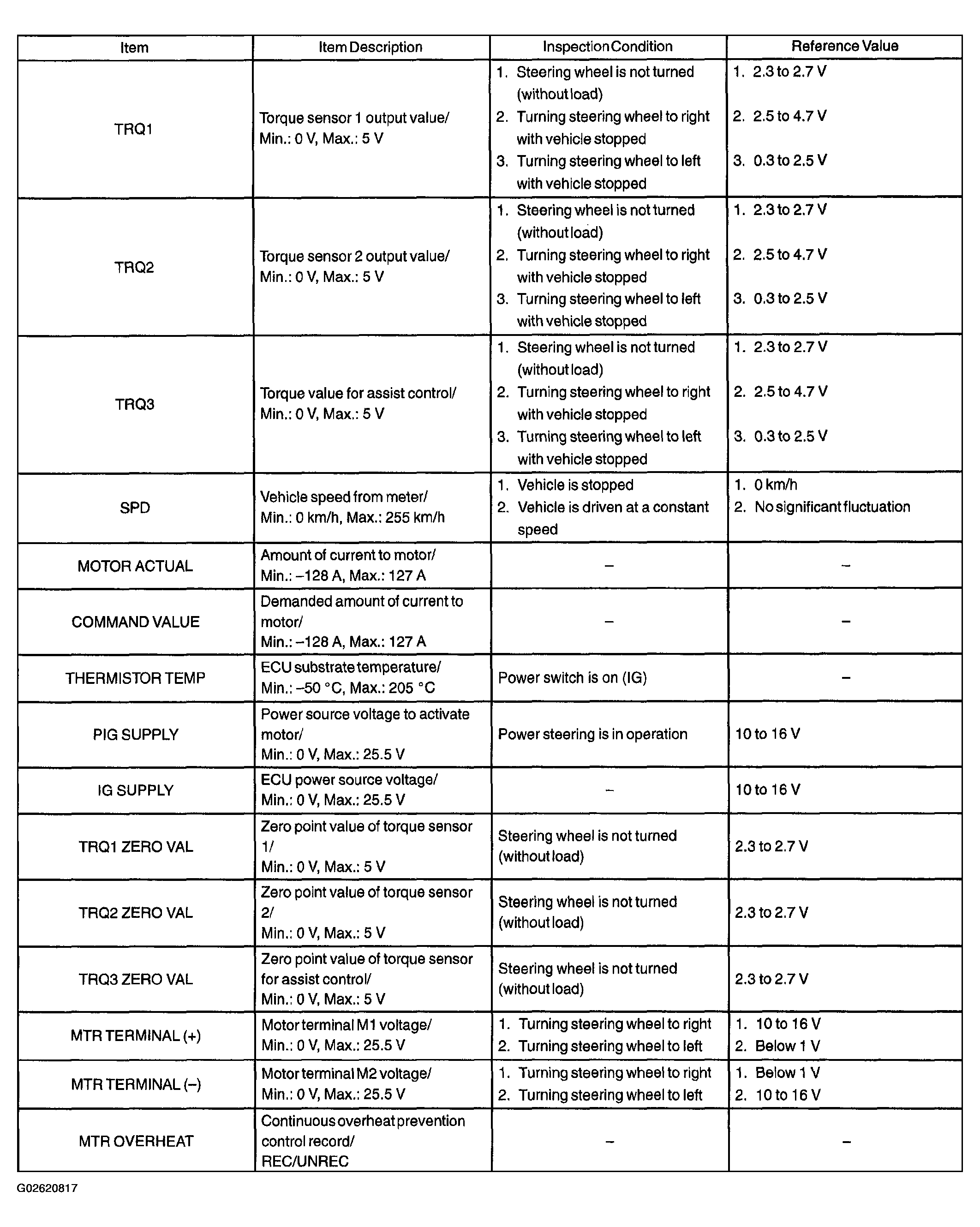

      Fig 1: Data List (1 Of 2)
      G02620817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

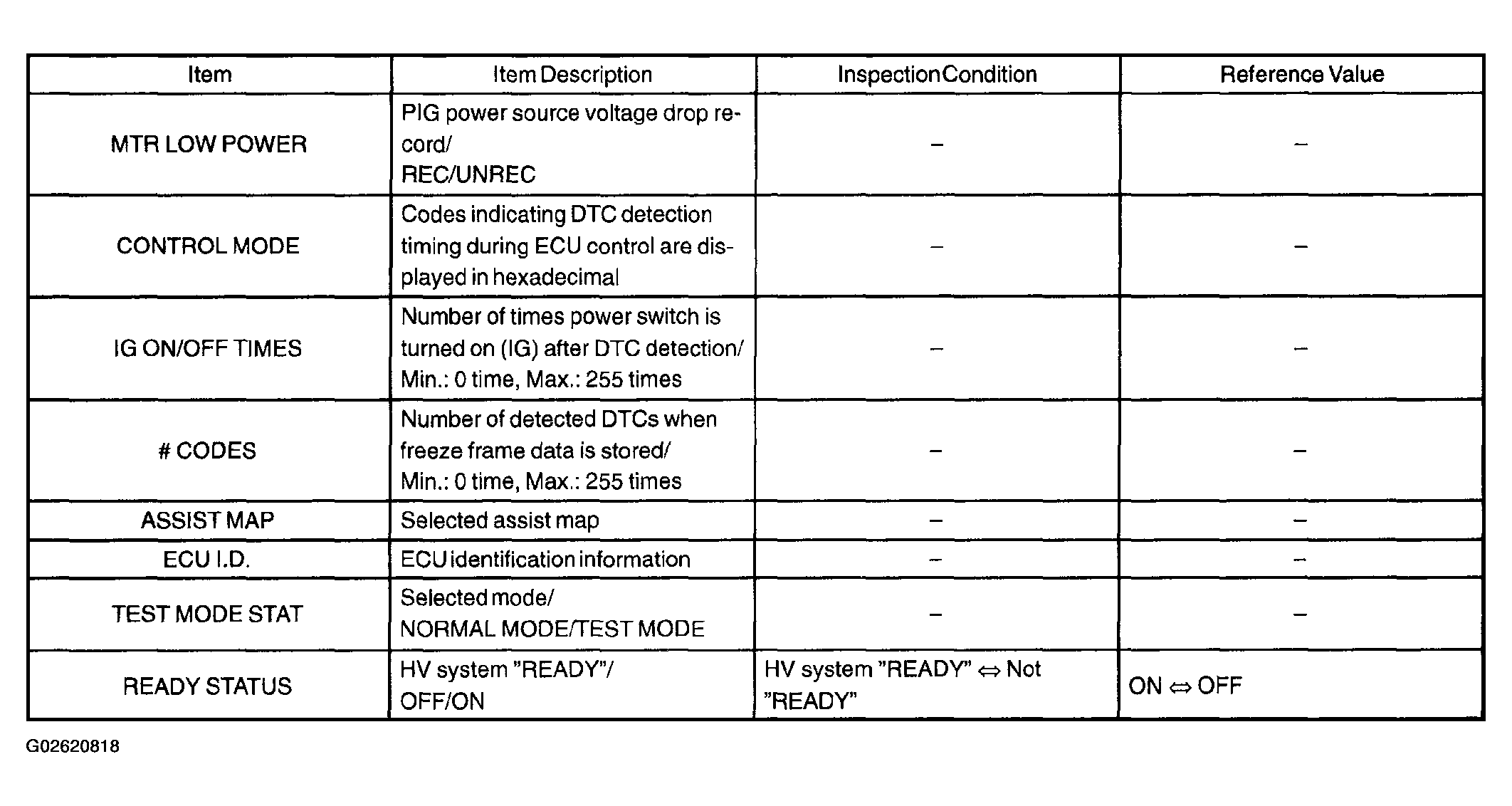

Fig 2: Data List (2 Of 2)
G02620818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
