Problem Symptoms Table

If the problem still occurs even after the normal system code was displayed during the DTC check, check the components for each problem symptom in the order given in the following table and proceed to the relevant troubleshooting page.

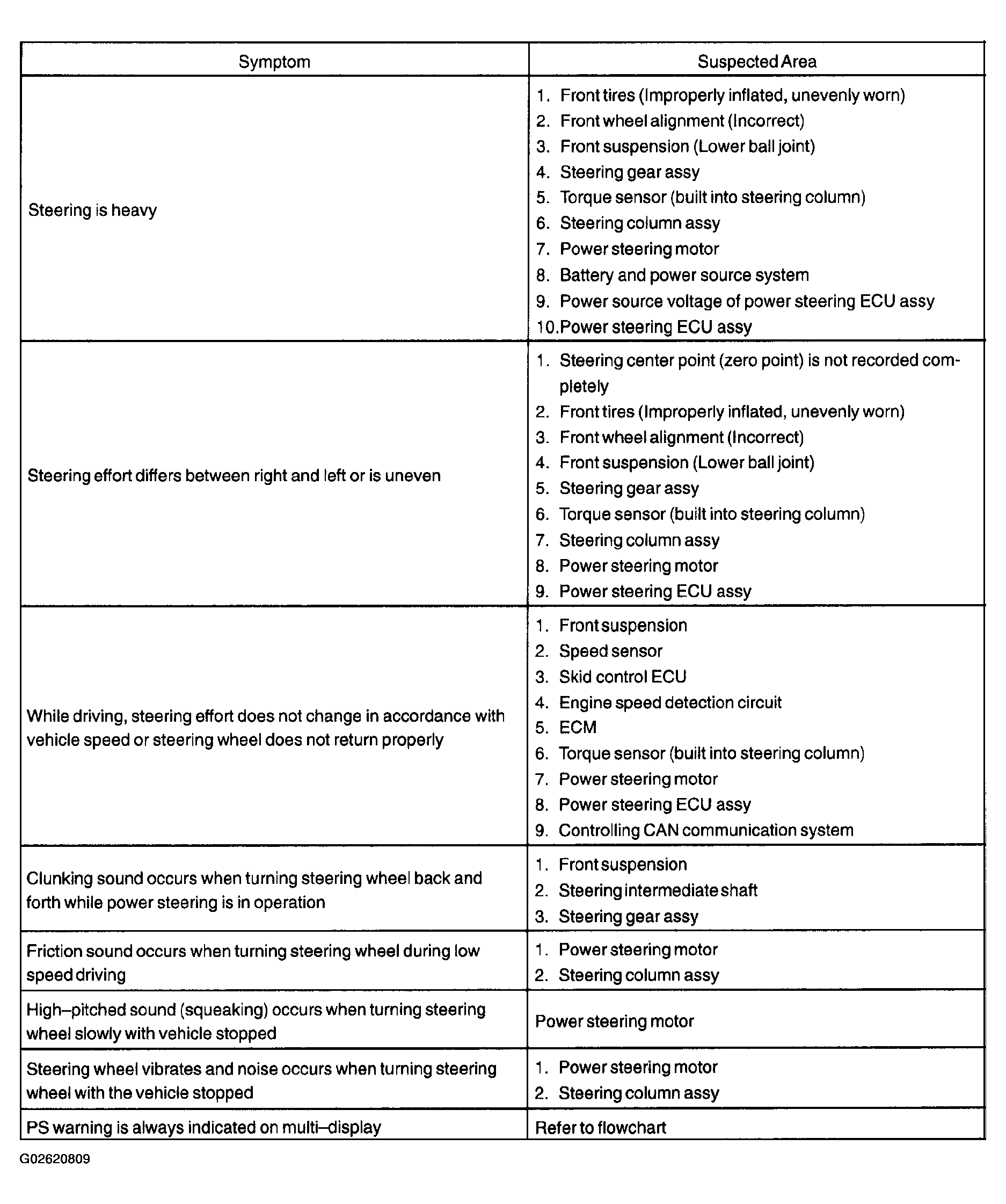

Fig 1: Problem Symptoms Chart
G02620809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
