Front Suspension: Components

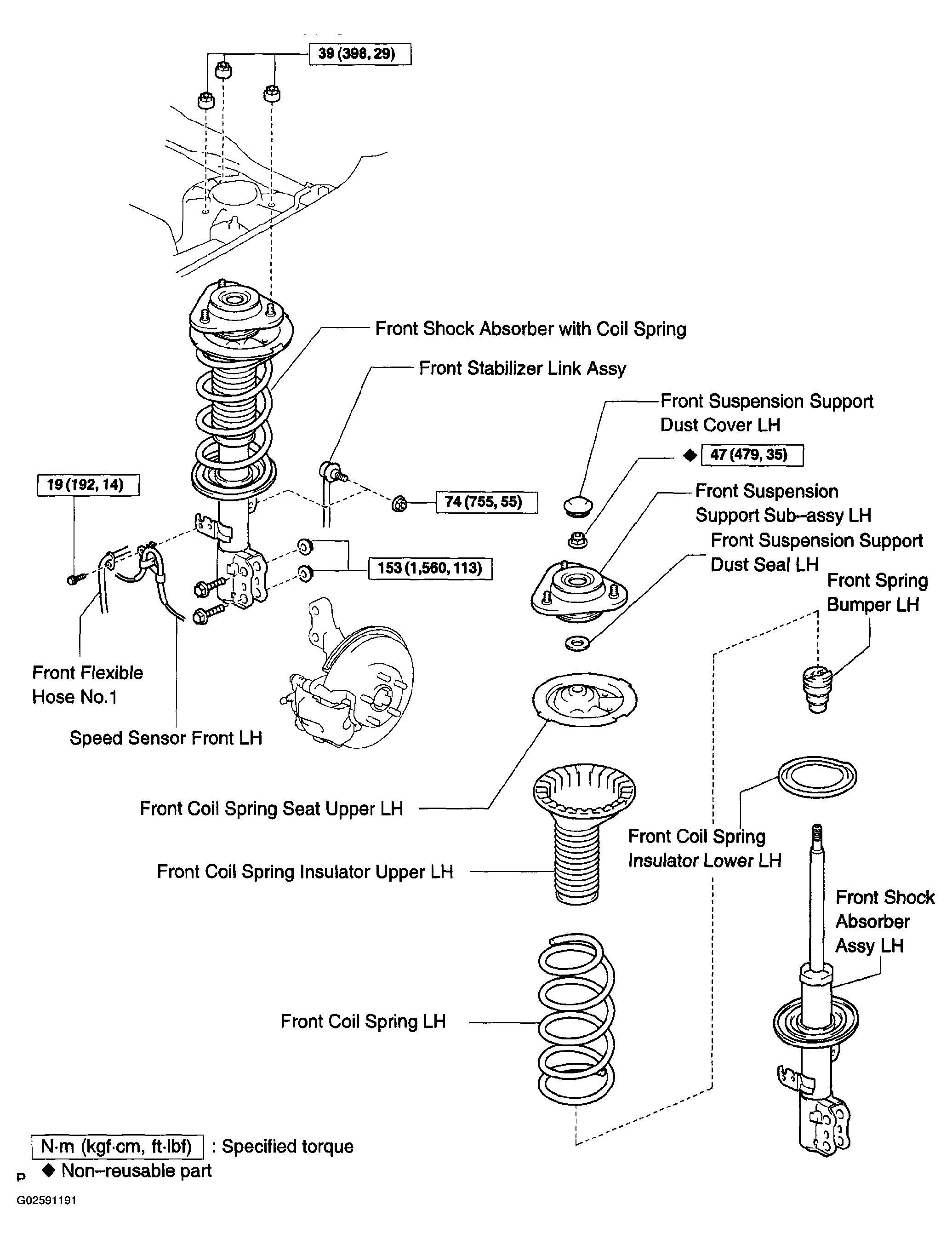

Fig 1: Front Suspension Replacement Components With Torque Specifications (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

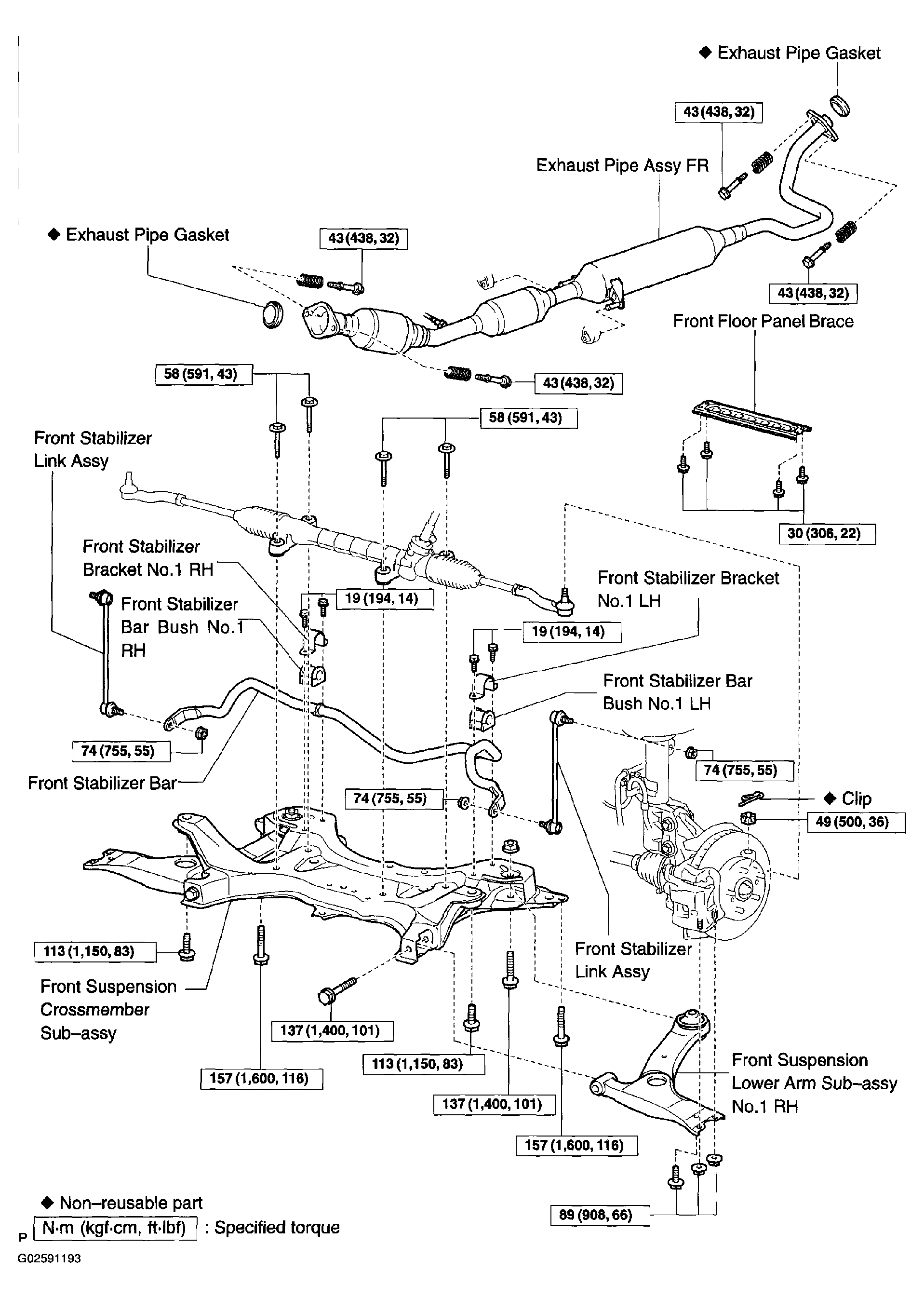

Fig 2: Front Suspension Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

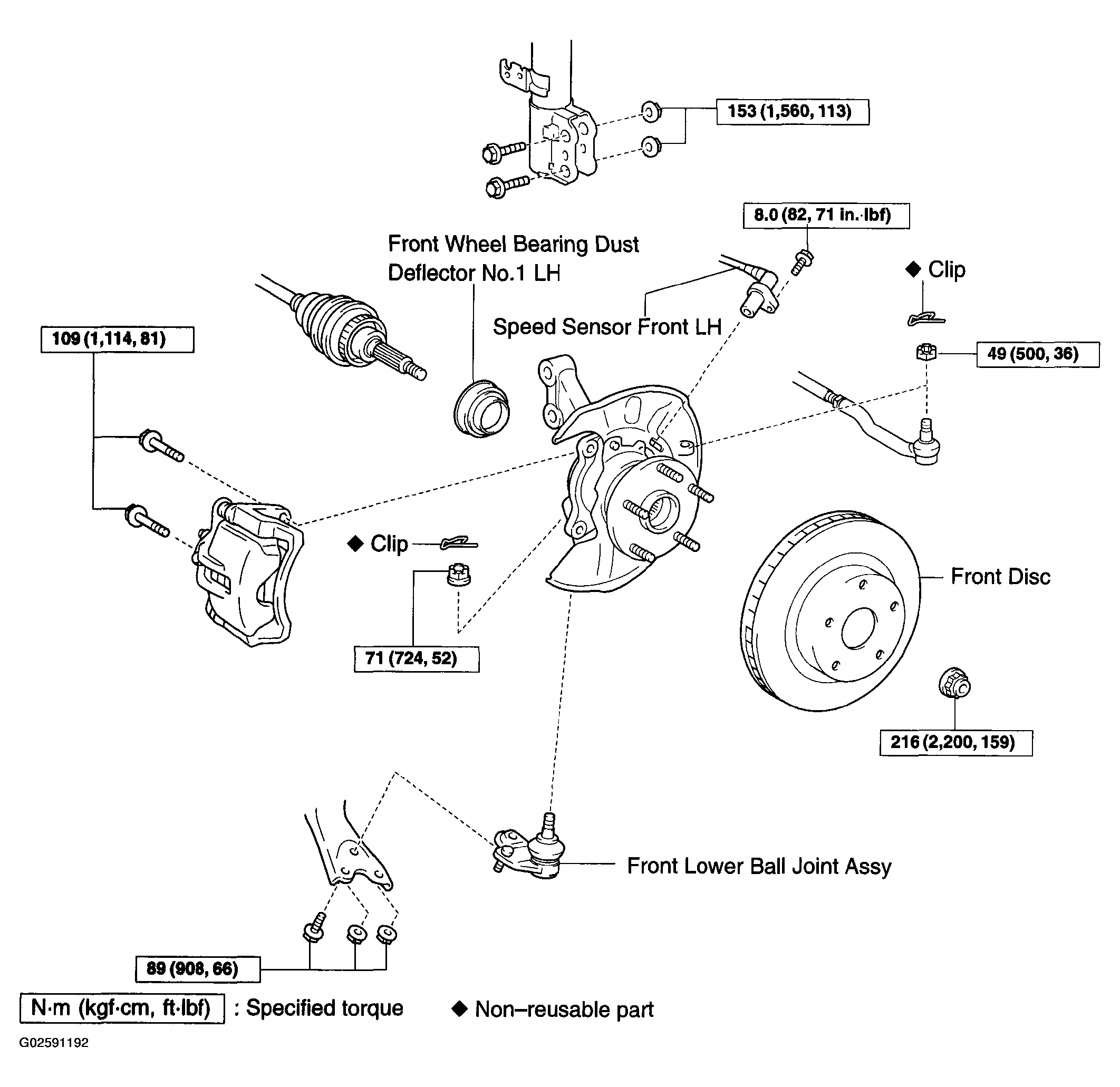

Fig 3: Front Suspension Replacement Components With Torque Specifications (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
