Input Shaft ASSY: Components

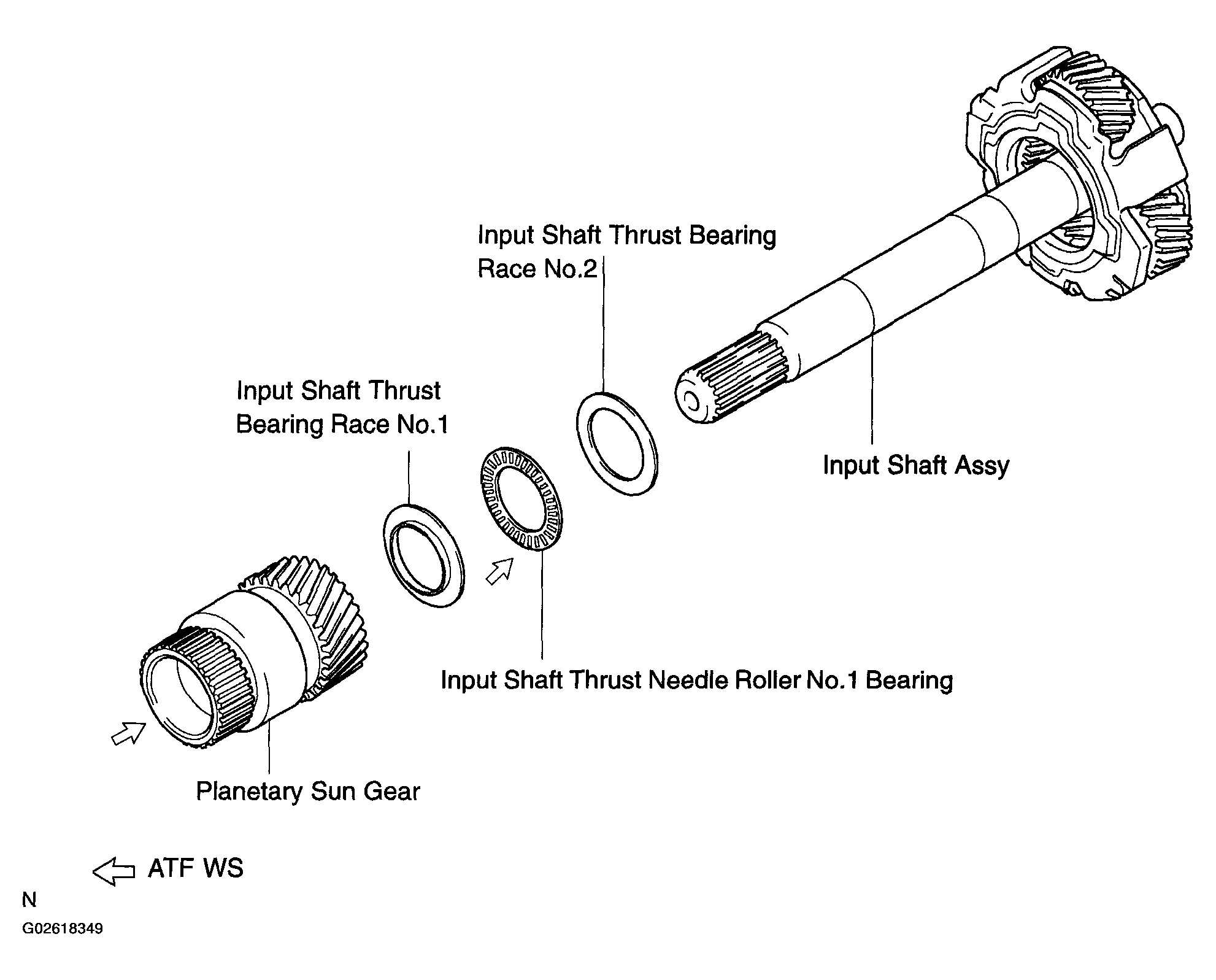

Fig 1: Identifying Input Shaft Assy Components
G02618349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
