Transmission Control System (Parking Lock Control) - Diagnostics
›
Shift Control System (Parking Lock Control)
›
P Position Switch Indicator Light Circuit
›
Wiring Diagram
P Position Switch Indicator Light Circuit: Wiring Diagram

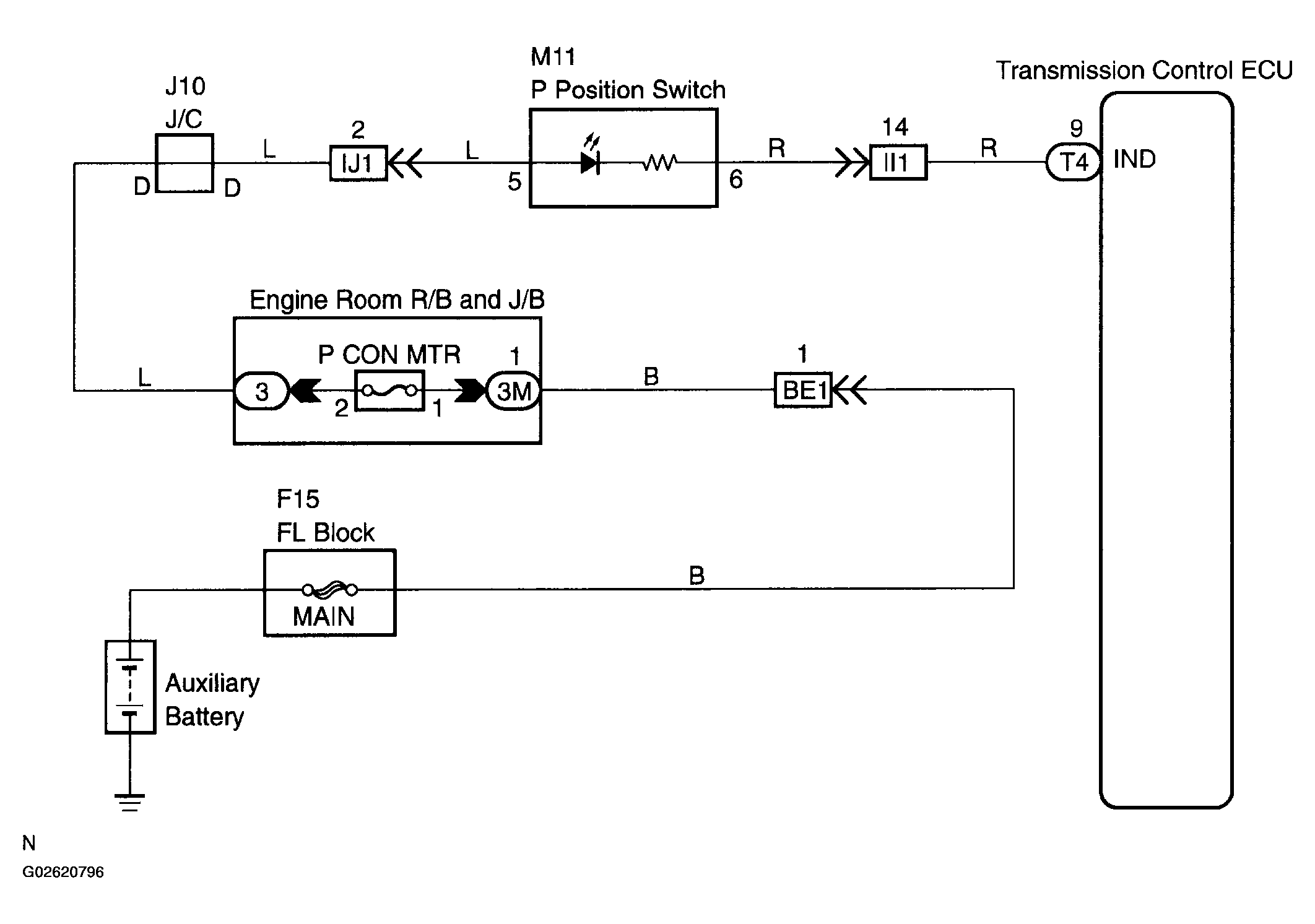

Fig 1: P Position Switch Indicator Light Circuit
