Engine Cooling System: Radiator: Components

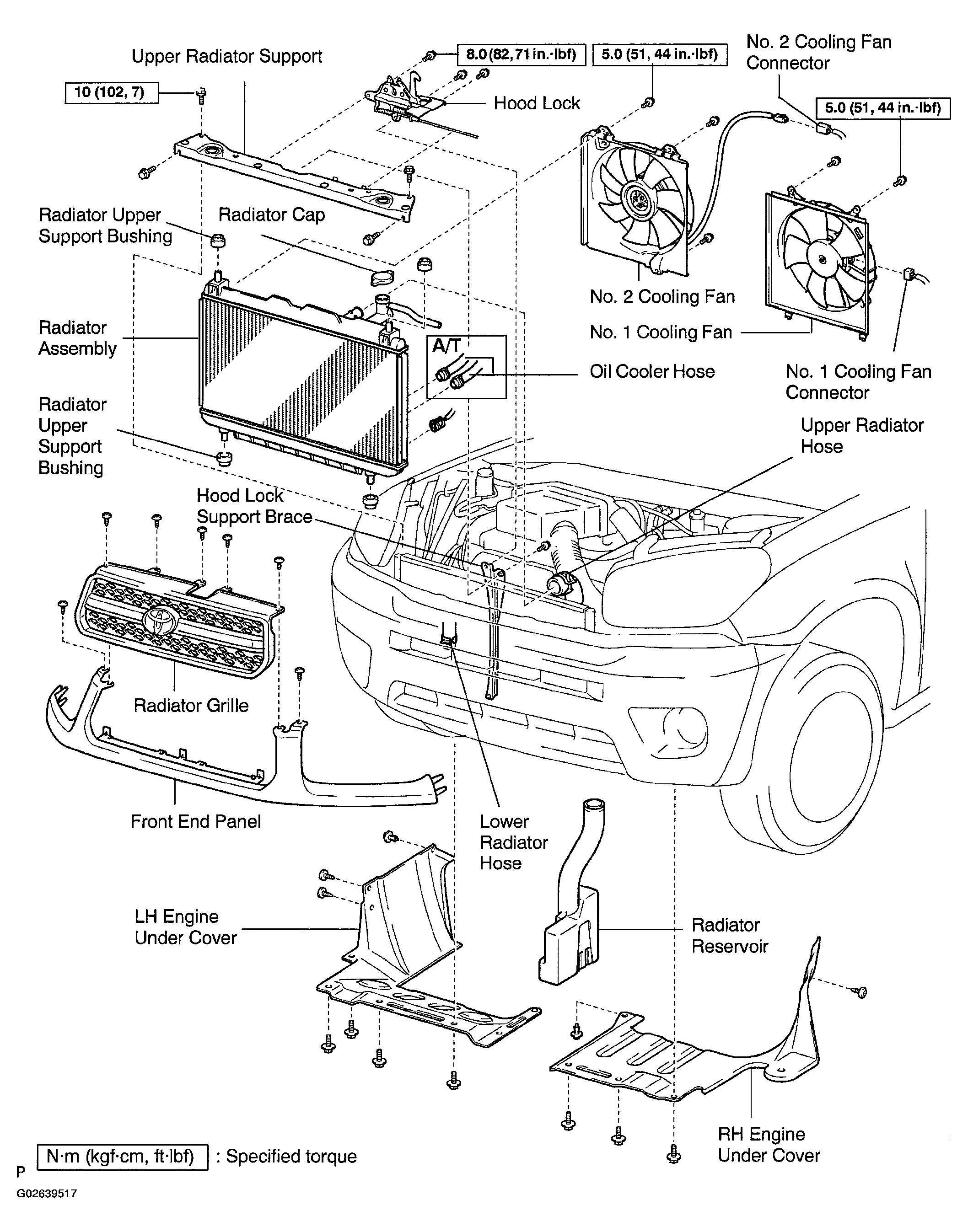

Fig 1: Exploded View Of Radiator Components & Torque Specifications (1 Of 2)
G02639517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

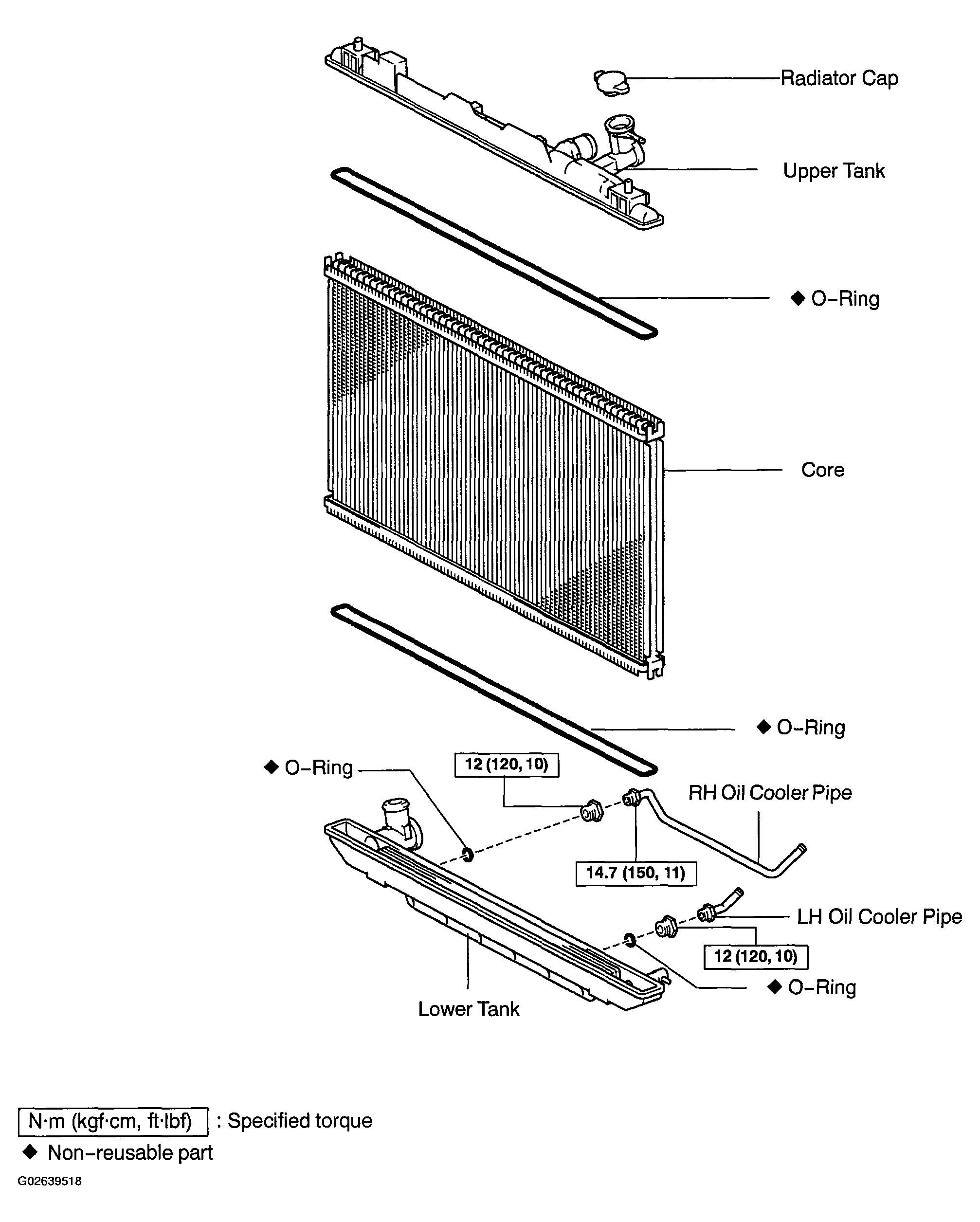

Fig 2: Exploded View Of Radiator Components & Torque Specifications (2 Of 2)
G02639518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
