Engine Cooling System: Radiator: Installation

  1. INSTALL UPPER AND LOWER RADIATOR SUPPORTS TO RADIATOR
  2. INSTALL RADIATOR
  3. CONNECT LOWER RADIATOR HOSE
  4. A/T: CONNECT 2 HOSES

    Connect the 2 oil cooler hoses to the radiator.

  5. INSTALL NO. 1 AND NO. 2 COOLING FANS (See  INSTALLATION  )
  6. INSTALL RADIATOR RESERVOIR
  7. INSTALL RH ENGINE UNDER COVER
  8. INSTALL UPPER RADIATOR SUPPORT

    Install the radiator upper support with the 5 bolts.

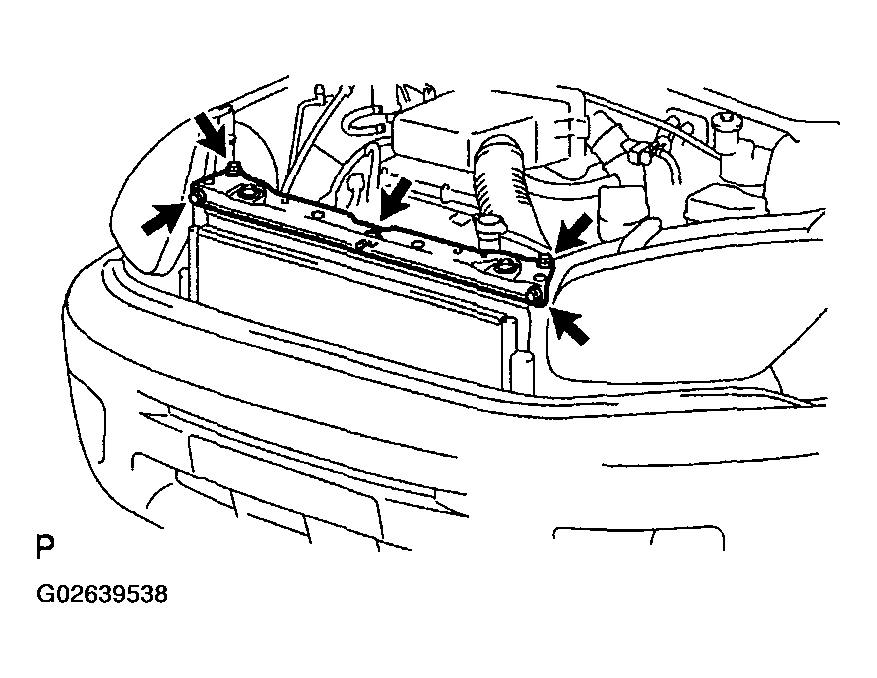

    Fig 1: Installing Upper Radiator Support
    G02639538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT UPPER RADIATOR HOSE
  10. CONNECT HOOD LOCK
    1. Install the hood lock with the 3 bolts.
    2. Install the wire from the clamps.

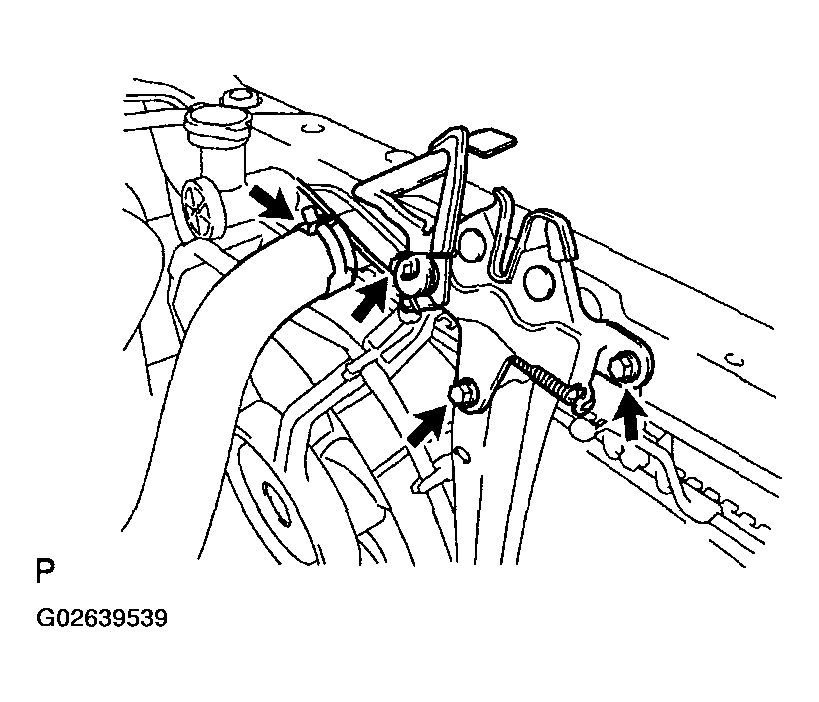

      Fig 2: Installing Hood Lock
      G02639539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT END PANEL

    Install the front end panel with the 4 screws.

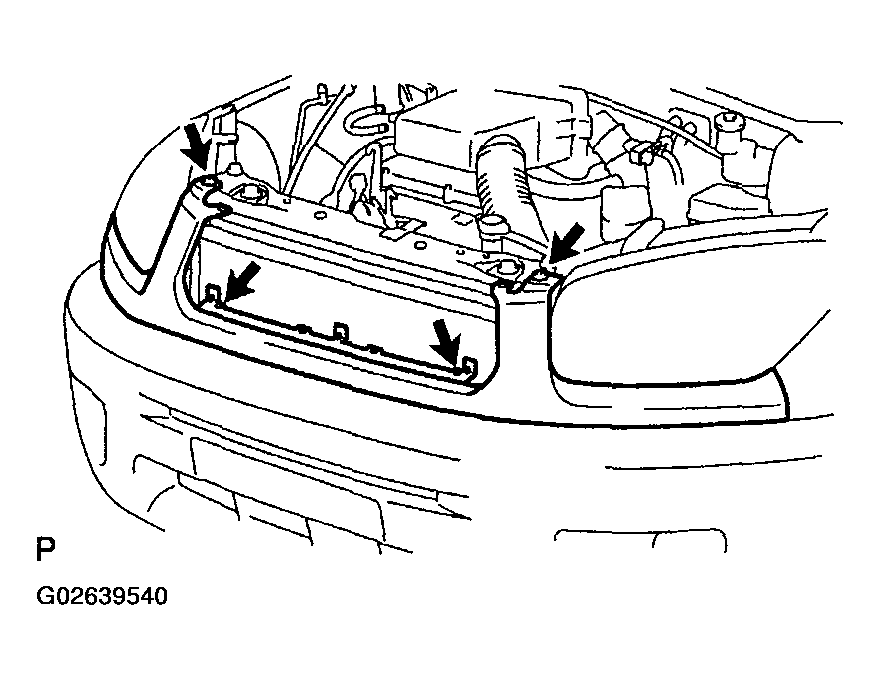

    Fig 3: Installing Front End Panel
    G02639540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL RADIATOR GRILLE

    Install the radiator grille with the 4 screws and 2 clips.

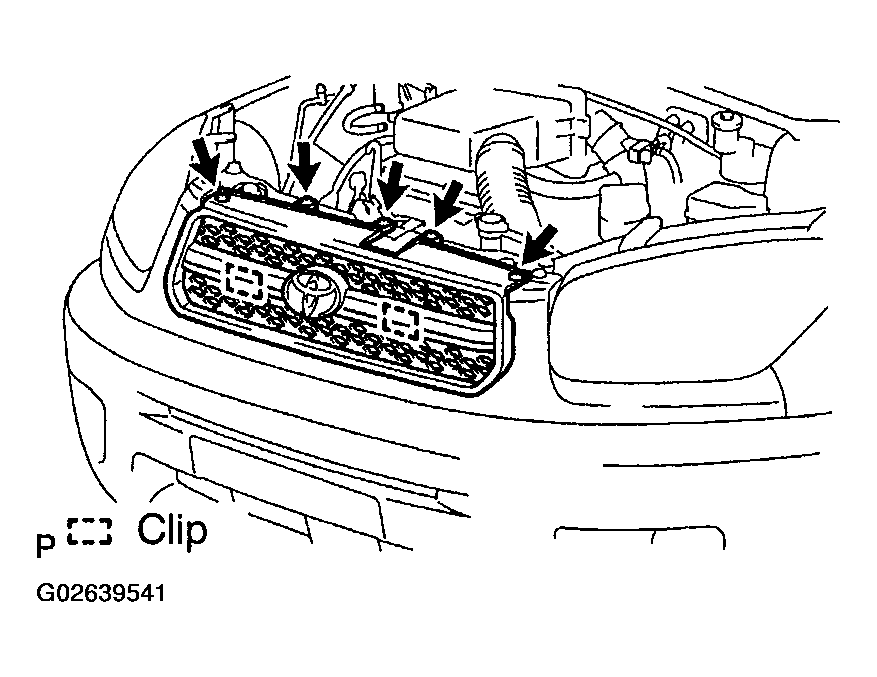

    Fig 4: Installing Radiator Grille
    G02639541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. FILL WITH ENGINE COOLANT
  14. START ENGINE AND CHECK FOR COOLANT LEAKS
