Parts Location

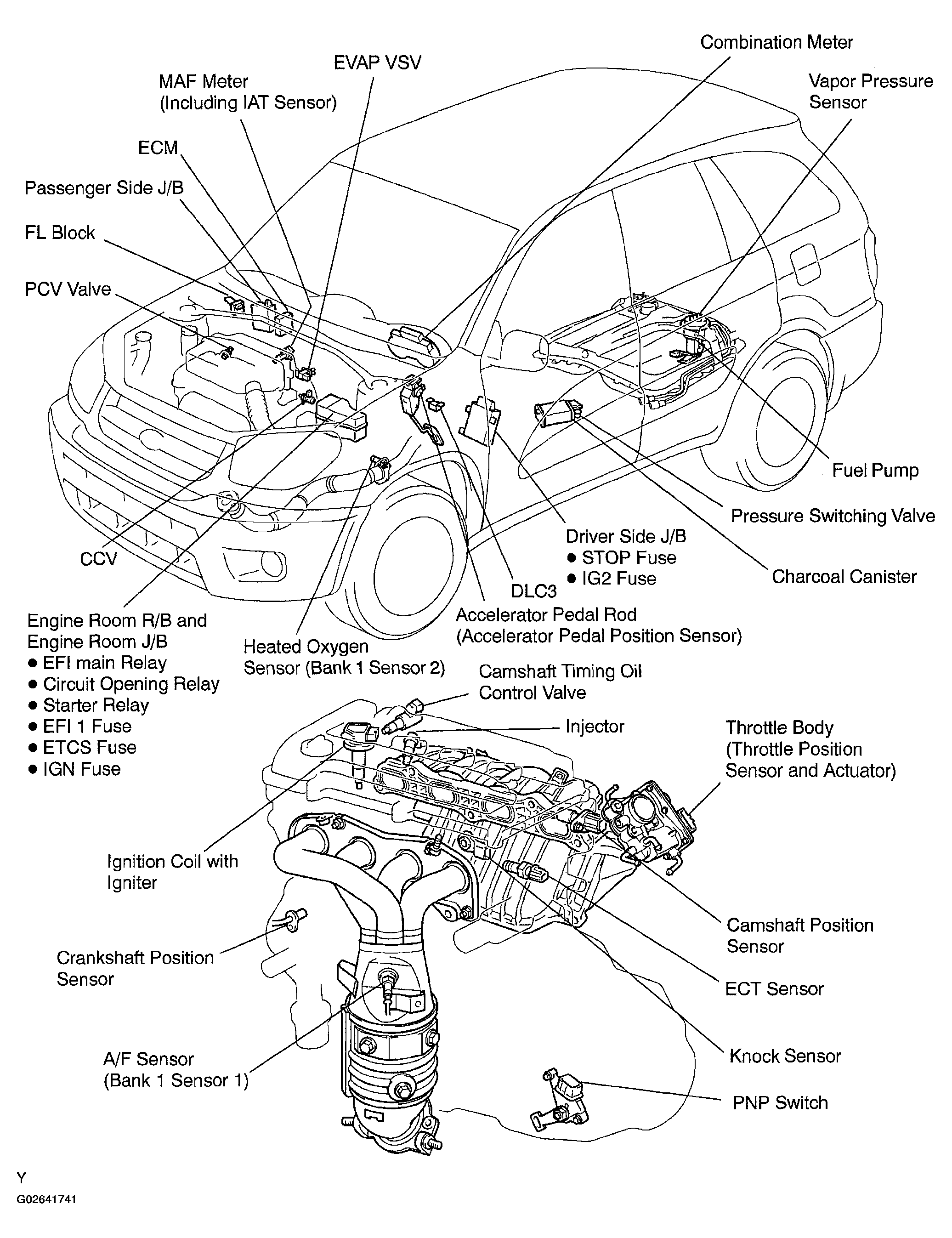

Fig 1: Identifying Location Of Engine Management Electrical Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
