Seat Belt PRETENSIONER: Disposal

HINT:

When scrapping vehicles equipped with a seat belt pretensioner or disposing of a front seat outer belt (with seat belt pretensioner) always first activate the seat belt pretensioner in accordance with the procedure described below. If any abnormality occurs with the seat belt pretensioner operation, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC. When disposing of a front seat outer belt (with seat belt pretensioner) activated in a collision, follow the same procedure given in step 1-(e) in "DISPOSAL".

CAUTION:

Never dispose of front seat outer belt which has an inactivated pretensioner.
The seat belt pretensioner produces a sizeable exploding sound when it activates, so perform the operation out-of-door and where it will not create a nuisance to nearby residents.
When activating the seat belt pretensioner, always use the specified SST. (SRS Airbag Deployment Tool) Perform the operation in a place away from electrical noise.

Fig 1: Identifying SRS Airbag Deployment Tool
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09082-00700, 09082-00770
When activating a front seat outer belt (with seat belt pretensioner), perform the operation at least 10 m (33 ft) away from the front seat outer belt.
The front seat outer belt is very hot when the seat belt pretensioner is activated, so leave it alone for at least 30 minutes after activation.
Use gloves and safety glasses when handling a front seat outer belt with the activated pretensioner.
Always wash your hands with water after completing the operation.
Do not apply water, etc. to a front seat outer belt with the activated pretensioner.

SEAT BELT PRETENSIONER ACTIVATION WHEN SCRAPPING VEHICLE
HINT:

Have a battery ready as the power source to activate the seat belt pretensioner.

Fig 2: Connecting SST To Battery
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Check the functioning of SST.
  CAUTION: When activating the seat belt pretensioner, always use the specified SST (SRS Airbag Deployment Tool).

  SST 09082-00700, 09082-00770

  Fig 3: Identifying SRS Airbag Deployment Tool
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the SST to the battery.
    Connect the red clip of the SST to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.

    HINT:

    Do not connect the yellow connector which will be connected with the seat belt pretensioner.

    Fig 4: Connecting SST To Battery
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Press the SST activation switch, and check the LED of the SST activation switch lights up.
  CAUTION: If the LED lights up when the activation switch is not being pressed, SST malfunction is probable, so definitely do not use the SST.
2. Install the SST.
  1. Remove the rear door scuff plate.
  2. Remove the front door scuff plate.
  3. Remove the front lower anchor.
  4. Remove the center pillar lower garnish.

    Fig 5: Pressing SST Activation Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

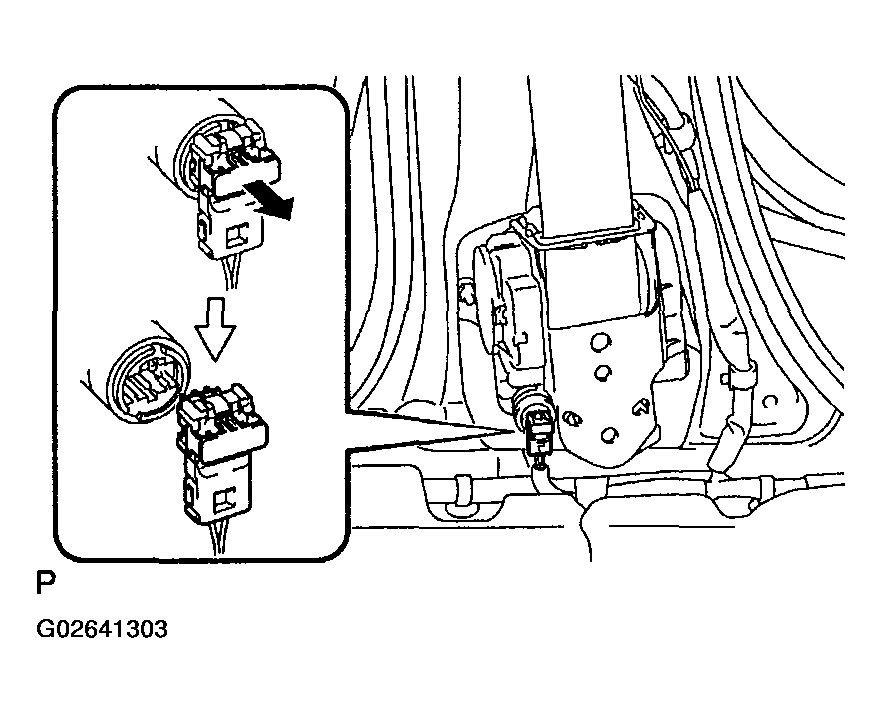

  5. Disconnect the pretensioner connector as shown.
  6. Buckle the front seat belt and check that there is no looseness and slack in the front seat inner belt and front seat outer belt.
    SST 09082-00700, 09082-00770

    Fig 6: Disconnecting Pretensioner Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Connect the 2 SST, then connect them to the seat belt pretensioner.
    SST 09082-00700, 09082-00770

    NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

    Fig 7: Connecting SST To Seat Belt Pretensioner
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Move the SST to at least 10 m (33 ft) away from the front of the vehicle.
  9. Close all the doors and windows of the vehicle.
  NOTE: Take care not to damage the SST wire harness.

  Fig 8: Identifying Safe Distance Between SST And Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Activate the seat belt pretensioner.
  1. Connect the SST red clip to the battery positive (+) terminal and the black clip to the negative (-) terminal.
  2. Check that no one is inside the vehicle or within 10 m (33 ft) area around the vehicle.
  3. Press the SST activation switch and activate the seat belt pretensioner.
  HINT:

  The seat belt pretensioner operates simultaneously as the LED of the SST activation switch lights up.
4. Dispose of front seat outer belt (with seat belt pretensioner).
CAUTION:
- The front seat outer belt is very hot when the seat belt pretensioner is activated, so leave it alone for at least 30 minutes after activation.
- Use gloves and safety glasses when handling a front seat outer belt with the activated seat belt pretensioner.
- Always wash your hands with water after completing the operation.
- Do not apply water, etc. to a front seat outer belt with the activated seat belt pretensioner.
HINT:

When scrapping a vehicle, activate the seat belt pretensioner and scrap the vehicle with the activated front seat outer belt still installed.
ACTIVATION WHEN DISPOSING OF FRONT SEAT OUTER BELT PRETENSIONER ONLY
NOTE:
- When disposing of the front seat outer belt (with seat belt pretensioner) only, never use the customer's vehicle to activates the seat belt pretensioner.
- Be sure to follow the procedure given below when activating the seat belt pretensioner.
HINT:

Have a battery ready as the power source when activating the seat belt pretensioner.
1. Remove the front seat outer belt (See REMOVAL ).
  HINT:

  Cut the belt near the seat belt retractor.
2. Check functioning of SST (See step a).
  SST 09082-00700, 09082-00770

  Fig 9: Checking Functioning Of SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the SST.
  1. Connect the 2 SST, then connect them to the seat belt pretensioner.
    SST 09082-00700, 09082-00770

    NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

    Fig 10: Connecting SST To Seat Belt Pretensioner
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Place the front seat outer belt on the ground and cover it with the disc wheel with tire.
    NOTE: Place the front seat outer belt as shown. See Fig 11.
  3. Move the SST at least 10 m (33 ft) away from the disc wheel.
  NOTE: Take care not to damage the SST wire harness.
4. Activate the seat belt pretensioner.
  1. Connect the SST red clip to the battery positive (+) terminal and black clip to the battery negative (-) terminal.
  2. Check that no one is within 10 m (33 ft) area around the disc wheel.
  3. Press the SST activation switch and activate the seat belt pretensioner.
  HINT:

  The seat belt pretensioner operates simultaneously as the LED of the SST activation switch lights up.

  Fig 11: Covering Front Seat Outer Belt With Tire/Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 12: Identifying Safe Distance Between SST And Tire/Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Dispose of the front seat outer belt (with seat belt pretensioner).
  CAUTION:
  - The front seat outer belt is very hot when the seat belt pretensioner is activated, so leave It alone for at least 30 minutes after activation.
  - Use gloves and safety glasses when handling a front seat outer belt with the activated seat belt pretensioner.
  - Always wash your hands with water after completing the operation.
  - Do not apply water, etc. to a front seat outer belt with the activated seat belt pretensioner.
  1. Remove the disc wheel and SST.
  2. Place the front seat outer belt in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts.

    Fig 13: Disposing Of Front Seat Outer Belt (With Seat Belt Pretensioner)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
