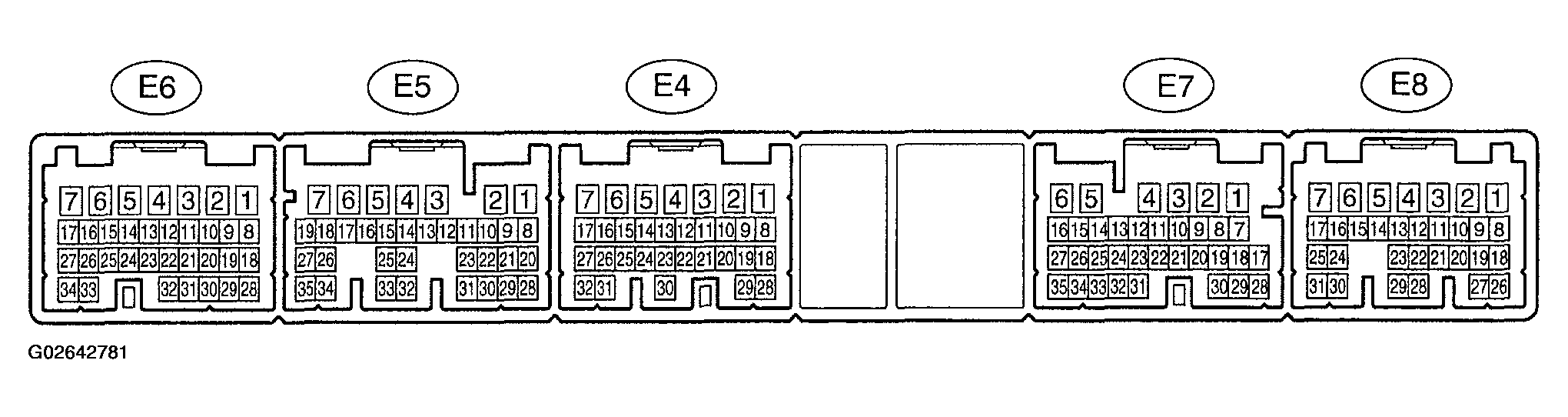

Terminals Of ECM
TERMINAL NUMBER AND SPECIFIED CONDITION
| Symbols (Terminal No.) | Wiring Color | Condition | Specified Condition |
|---|---|---|---|
| STP (E7-19) - E1 (E4-1) | G-W (W) - BR | Brake pedal is depressed (stop light switch ON) | 7.5 to 14 V |
| Brake pedal is released (stop light switch OFF) | Below 1 V | ||
| CCS (E7-24) - E1 (E4-1) | G-Y - BR | Ignition switch ON | 9.0 to 14 V |
| Ignition switch ON CANCEL switch held ON |
6.0 to 10.1 V | ||
| Ignition switch ON -/SET switch held ON |
4.0 to 7.1 V | ||
| Ignition switch ON +/RES switch held ON |
2.1 to 4.0 V | ||
| Ignition switch ON Main switch held ON |
Below 1 V | ||
| PI (E7-13) - E1 (E4-1) | G-R (W) - BR | Ignition switch ON Cruise control main switch ON |
0 to 3.0 V |
| Ignition switch ON Cruise control main switch OFF |
9 to 14 V | ||
| ST1- (E7-12) - E1 (E4-1) | L-B (SB) - BR | Brake pedal is depressed Brake pedal is released |
7.5 to 14 V |
| D (E7-10) - E1 (E4-1) | L-B (W)* - BR | Ignition switch ON A/T models: Shifting into D position M/T modes: Clutch pedal is released |
9 to 14 V |
| Ignition switch ON A/T models: Shifting into any positions except D position M/T modes: Clutch pedal is depressed |
0 to 1.5 V | ||
| *:M/T | |||
