Front Seat: Components

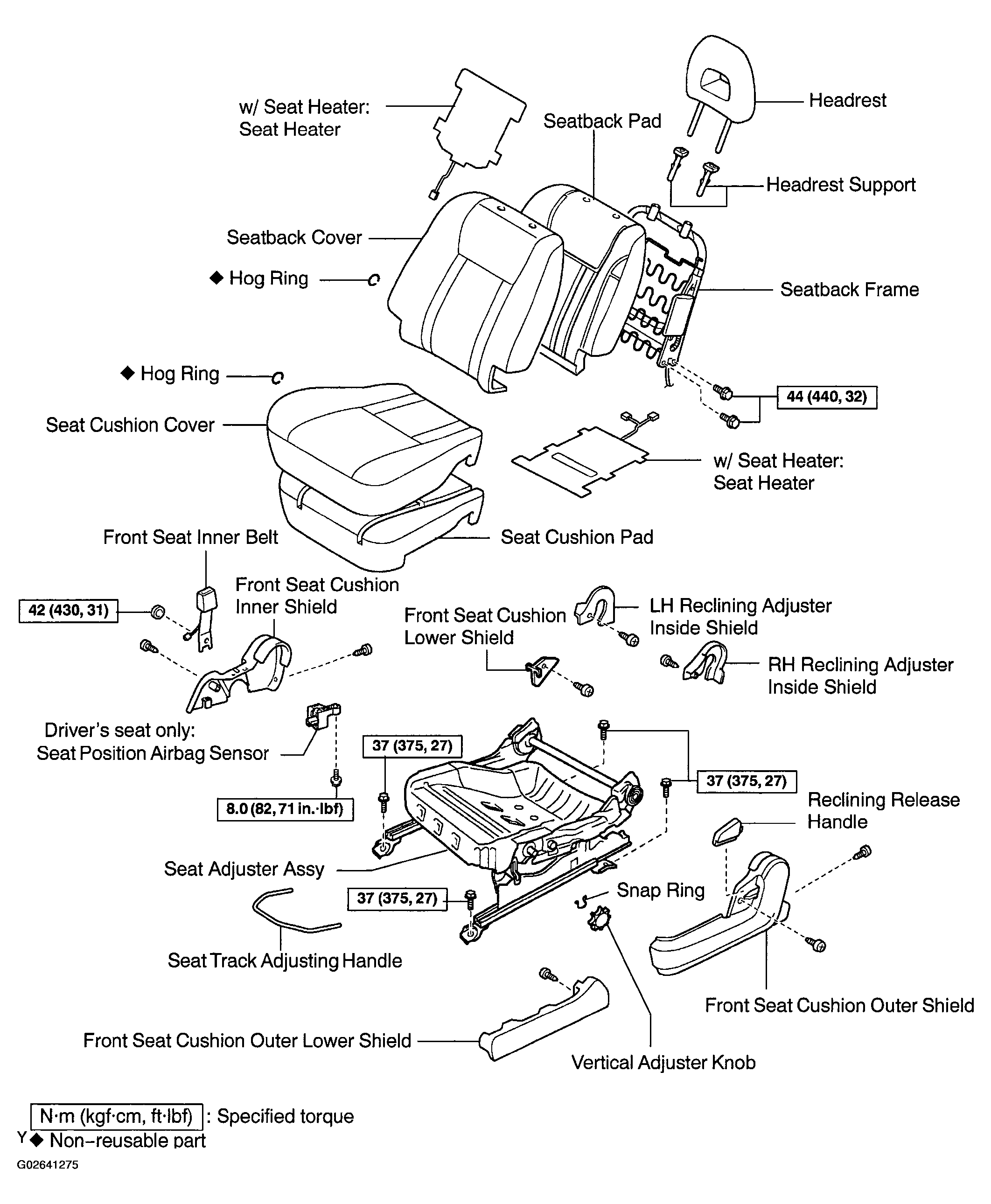

Fig 1: Front Seat Replacement Components With Torque Specifications
G02641275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
