Engine - Diagnostics
›
Mil Circuit Malfunction
›
Wiring Diagram
Mil Circuit Malfunction: Wiring Diagram

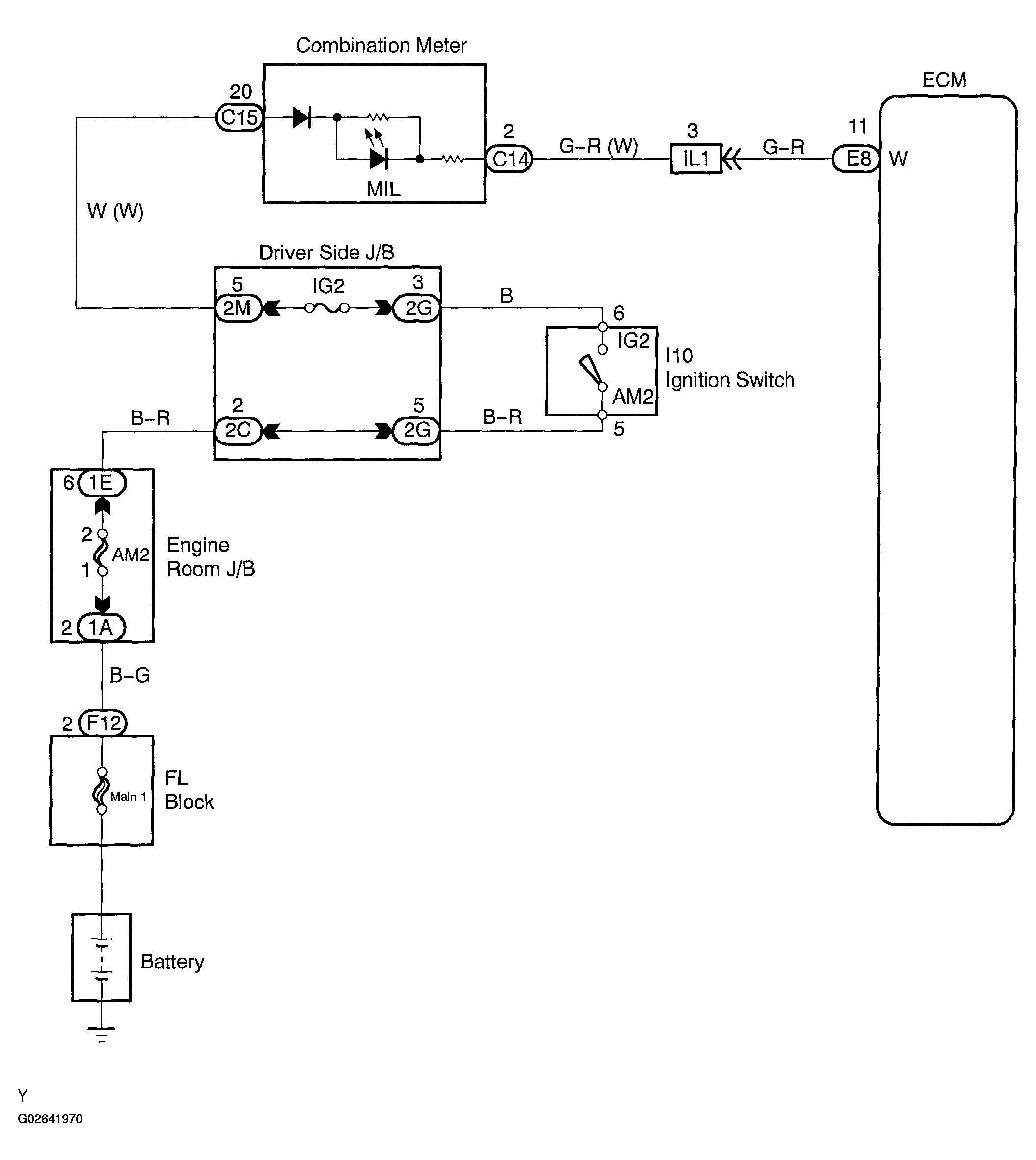

Fig 1: Wiring Diagram - Malfunction Indicator Light (MIL)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
