Front Axle Hub: Reassembly

1. Using SST and a press, install a new bearing to the steering knuckle.

   SST 09608-32010, 09950-70010 (09951-07150)

2. Using snap ring pliers, install a new snap ring.

Place the dust cover and using a Torx® socket (T30), install the 4 bolts.

Torque: 8.0 N.m (85 kgf.cm, 71 in.lbf)

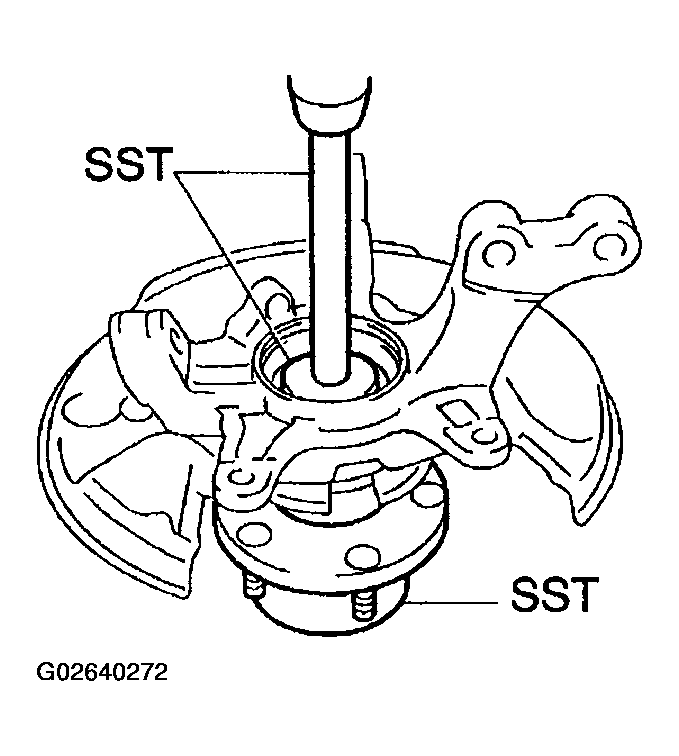

Fig 1: Installing Bearing To Steering Knuckle Using Special Tool

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST and a press, install the axle hub.

SST 09527-17011, 09950-60010 (09951-00370), 09950-70010 (09951-07150)

1. Install the lower ball joint with the nut.

   Torque: 133 N.m (1,360 kgf.cm, 98 ft.lbf)

2. Install a new cotter pin.

   If the holes for cotter pin are not aligned, tighten the nut further up to 60°.

   Fig 2: Installing Axle Hub Using Special Tool

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
