Manual Transaxle Assembly: Disassembly

  1. REMOVE CLUTCH RELEASE FORK AND BEARING

    HINT:

    At the time of reassembly, refer to the following item. Apply molybdenum disulphide lithium base grease (See INSTALLATION ).

  2. 4WD:

    REMOVE TRANSFER ASSEMBLY

    1. Remove the 2 bolts.

      Sealant:

      Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

      Torque: 78.4 N.m (800 kgf.cm, 58 ft.lbf)

    2. Remove the 6 nuts.

      Torque:

      78.4 N.m (800 kgf.cm, 58 ft.lbf) for 17 mm nut

      29.4 N.m (300 kgf.cm, 22 ft.lbf) for 14 mm nut

    3. Using a plastic hammer, remove the transfer assembly from the transaxle.

      HINT:

      At the time of reassembly, refer to the following item.

      • Shift into the 4th gear, and install the transfer assembly while turning the input shaft of the transaxle.
      • It is possible to apply FIPG either transaxle side or transfer side. In addition, be sure to apply it on the center of the seal.

        FIPG:

        Part No. 08826-00100, THREE BOND 1281 or equivalent

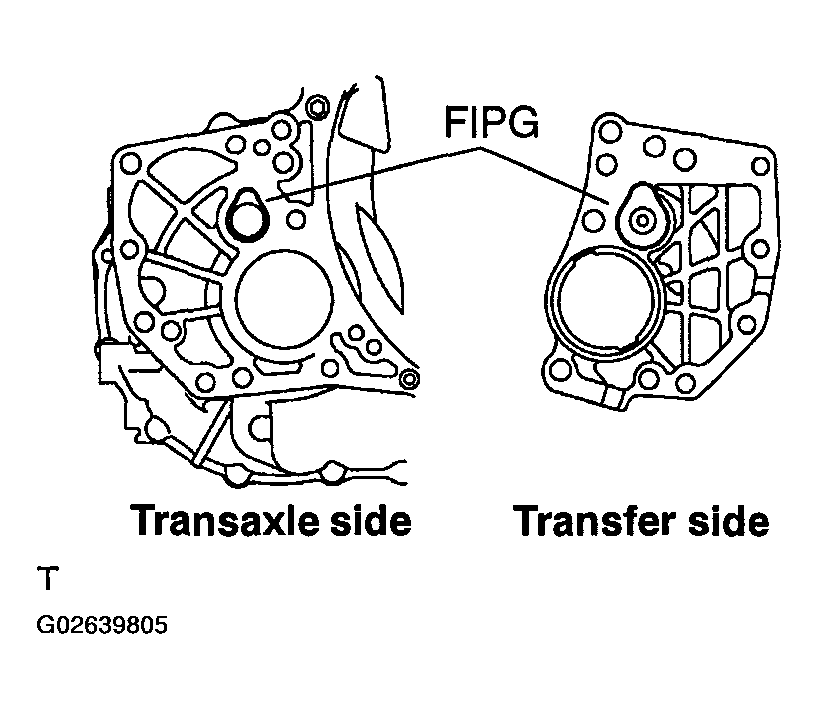

        Fig 1: Applying FIPG To Either Transaxle Side Or Transfer Side
        G02639805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. 4WD:

    REMOVE DIFFERENTIAL SIDE GEAR INTERMEDIATE SHAFT

  4. REMOVE FILLER PLUG AND DRAIN PLUG WITH 2 GASKETS

    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

  5. REMOVE BACK-UP LIGHT SWITCH WITH GASKET

    Torque: 40 N.m (410 kgf.cm, 30 ft.lbf)

  6. REMOVE BOLT AND VEHICLE SPEED SENSOR

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  7. REMOVE CONTROL CABLE BRACKET

    Remove the 3 bolts and control cable bracket.

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  8. REMOVE CLUTCH TUBE BRACKET

    Remove the bolt and tube bracket.

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  9. REMOVE SELECTING BELLCRANK ASSEMBLY

    Remove the 2 bolts and the selecting bellcrank assembly.

    Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

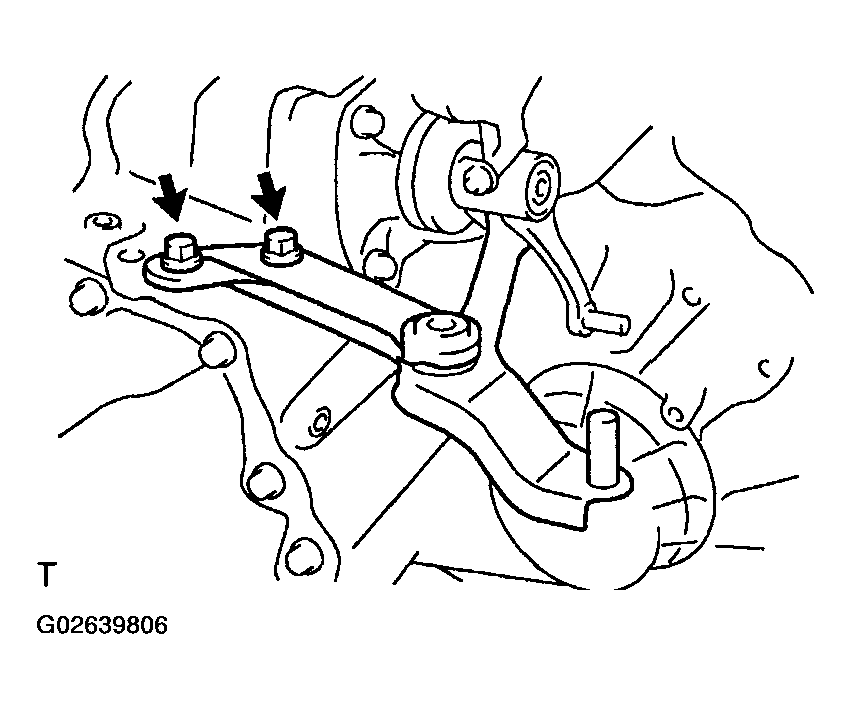

    Fig 2: Removing Selecting Bellcrank Assembly
    G02639806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CONTROL SHIFT LEVER AND DUST BOOT
    1. Remove the nut and wave washer.

      Torque: 6.4 N.m (65 kgf.cm, 57 in.lbf)

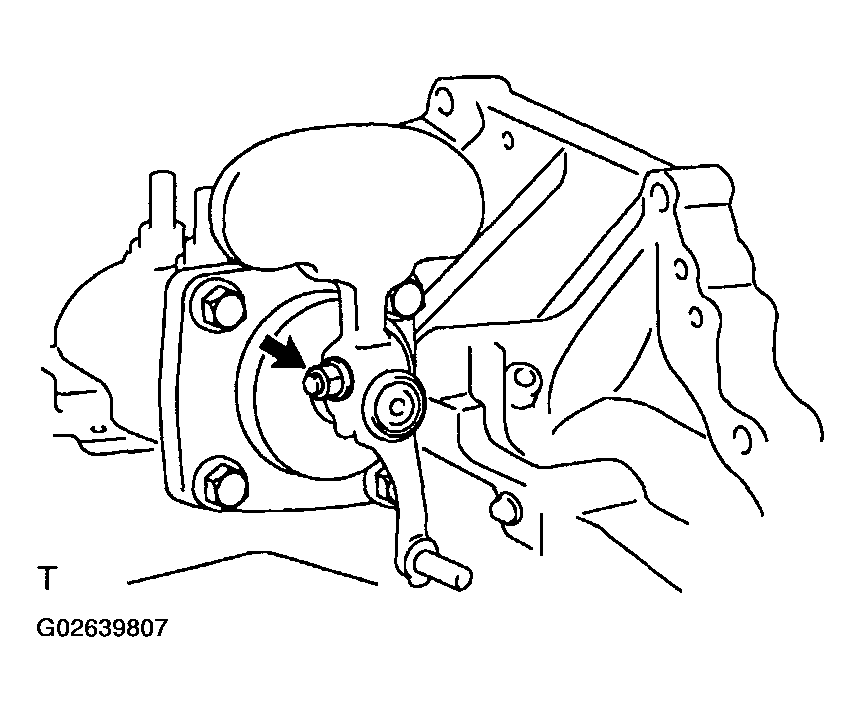

      Fig 3: Removing Control Shift Lever
      G02639807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch and a hammer, tap out the lever lock pin.
      NOTE: At the time of reassembly, refer to the following item.
      When fixing the lever lock pin, properly position the shaft groove.
    3. Remove the control shift lever and dust boot.
      NOTE: At the time of reassembly, refer to the following items.
      • Install the dust boot into a groove in the control shift lever.
      • Be sure to install the dust boot in the correct direction.

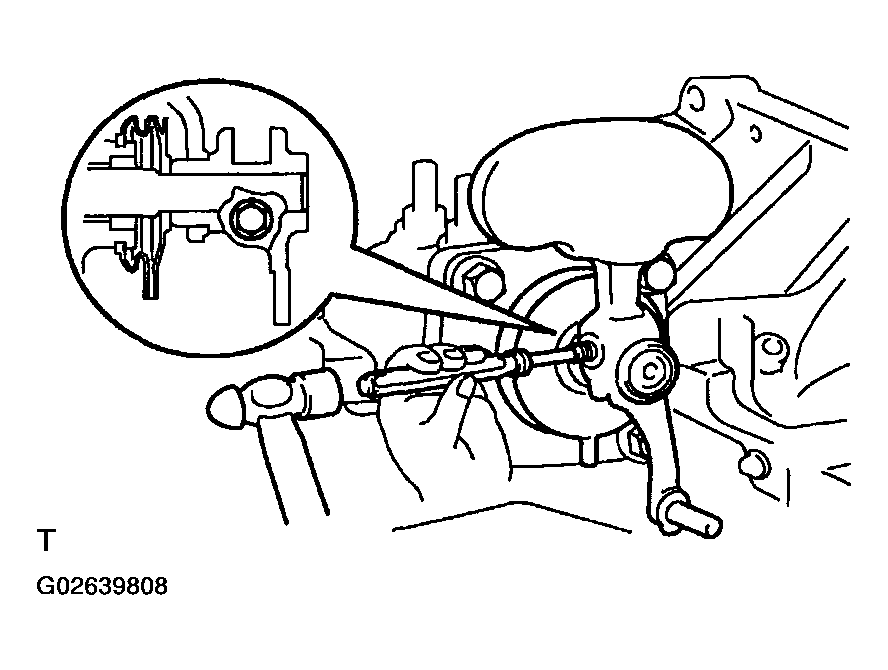

        Fig 4: Tapping Out Lever Lock Pin
        G02639808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LOCK BALL ASSEMBLY AND SHIFT AND SELECT LEVER SHAFT ASSEMBLY
    1. Remove the lock ball assembly.

      Sealant:

      Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

      Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

    2. Remove the 4 bolts, shift and select lever shaft assembly and gasket.

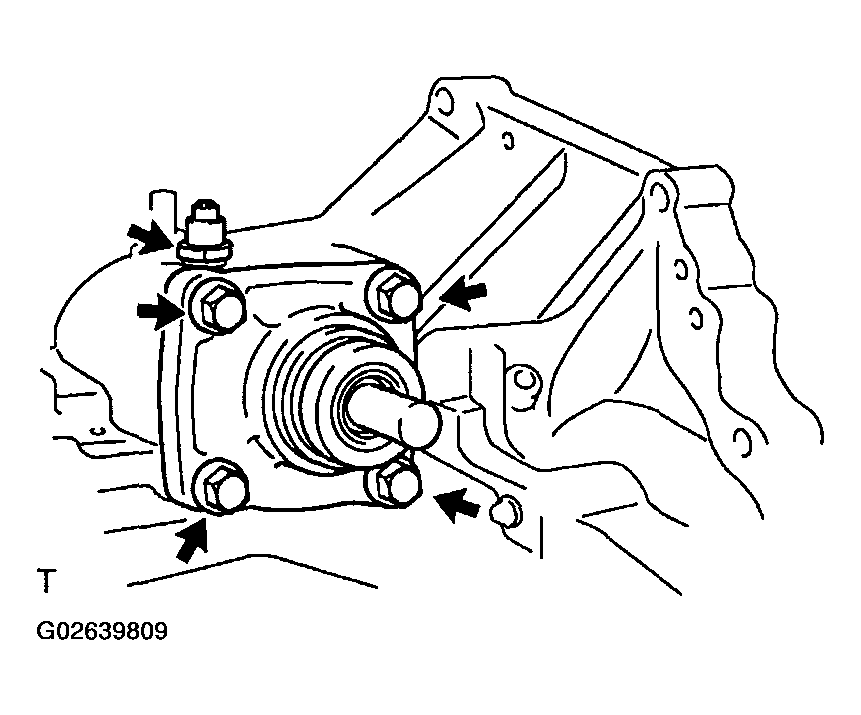

      Fig 5: Removing Shift & Select Lever Shaft Assembly
      G02639809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Sealant:

      Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

      Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

  12. REMOVE CONTROL SHAFT COVER

    Remove the control shaft cover from the shift and select lever shaft assembly.

    NOTE: At the time of reassembly, refer to the following item.
    Set the claws of the shift interlock plate into the shift head part of the gear shift fork shaft securely.
  13. REMOVE TRANSMISSION CASE COVER

    Remove the 10 bolts and transmission case cover.

    FIPG:

    Part No. 08826-00100, THREE BOND 1282B or equivalent

    Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

  14. REMOVE BREATHER PLUG WITH GASKET

    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

    Fig 6: Applying FIPG To Transmission Case Cover
    G02639810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE OUTPUT SHAFT LOCK NUT
    1. Unstake the lock nut.
    2. Engage the gear double meshing.
    3. Remove the lock nut.

      Torque: 123 N.m (1,250 kgf.cm, 90 ft.lbf)

    4. Disengage the gear double meshing.
  16. REMOVE NO. 3 HUB SLEEVE AND NO. 3 SHIFT FORK
    1. Remove the No. 3 shift fork set bolt.

      Torque: 24 N.m (240 kgf.cm, 17 ft.lbf)

    2. Remove the No. 3 hub sleeve and No. 3 shift fork.

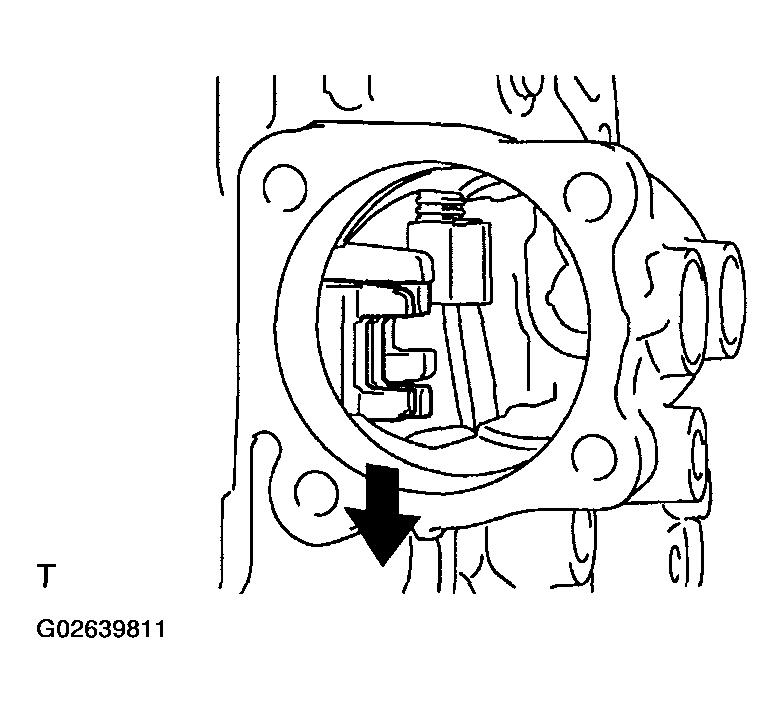

      Fig 7: Removing No. 3 Hub Sleeve & No. 3 Shift Fork
      G02639811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE 5TH DRIVEN GEAR

    Using SST, remove the 5th driven gear.

    SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03011, 09956-03030)

    Fig 8: Removing 5th Driven Gear
    G02639812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. MEASURE 5TH GEAR THRUST CLEARANCE AND RADIAL CLEARANCE
    1. Using a dial indicator, measure the thrust clearance.

      Maximum clearance: 0.65 mm (0.0256 in.)

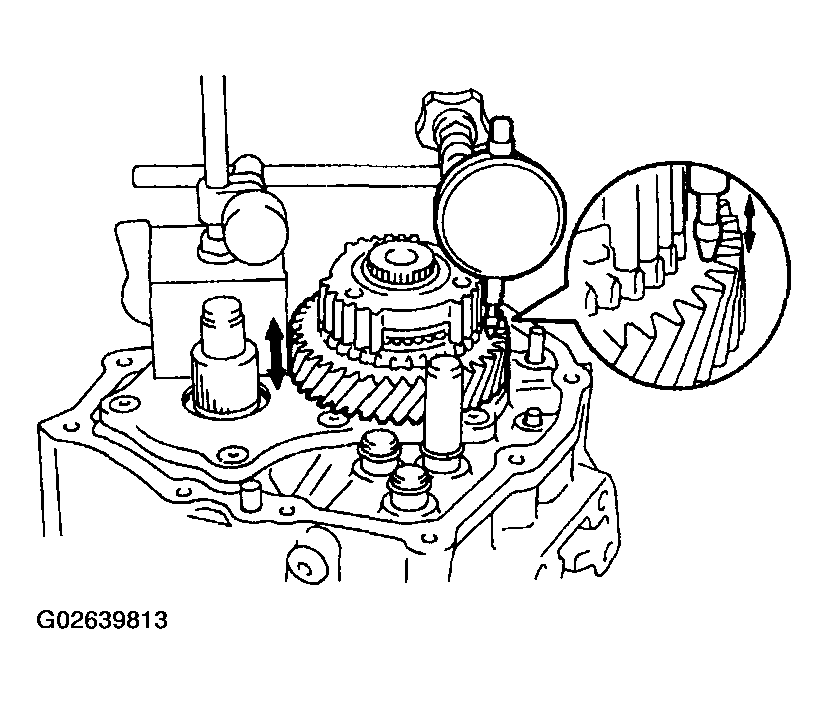

      Fig 9: Measuring 5th Gear Thrust Clearance
      G02639813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a dial indicator, measure the radial clearance.

      Maximum clearance: 0.050 mm (0.0020 in.)

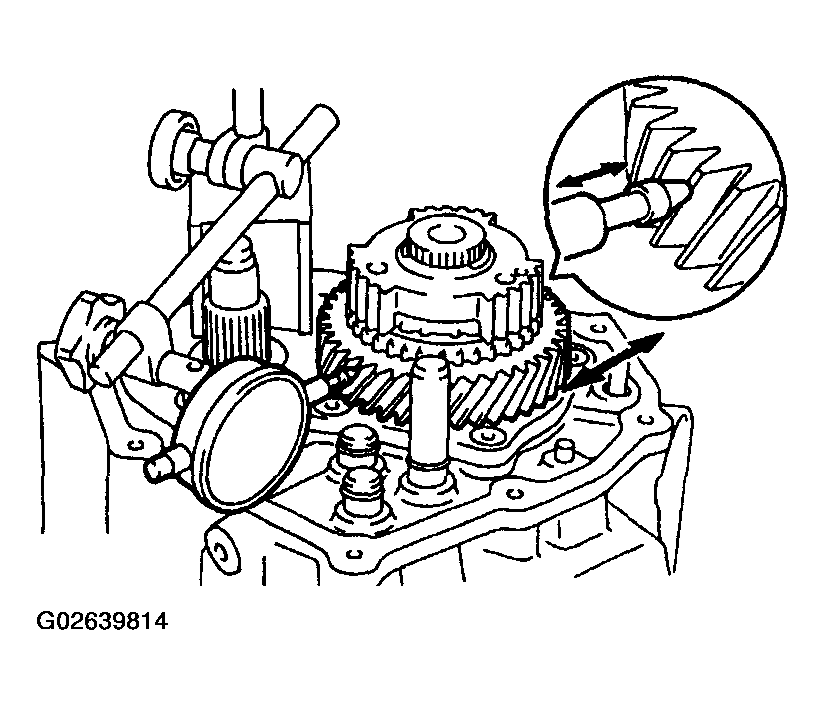

      Fig 10: Measuring Radial Clearance
      G02639814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 3 CLUTCH HUB AND 5TH GEAR
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

      HINT:

      At the time of the reassembly, refer to the following item.

      Select a snap ring that allows the minimum axial play.

      THICKNESS SPECIFICATION CHART

      Mark Thickness mm (in.) Mark Thickness mm (in.)
      a 1.75 (0.0689) f 2.00 (0.0787)
      b 1.80 (0.0709) g 2.05 (0.0807)
      c 1.85 (0.0729) h 2.10 (0.0827)
      d 1.90 (0.0748) j 2.15 (0.0847)
      e 1.95 (0.0768) - -

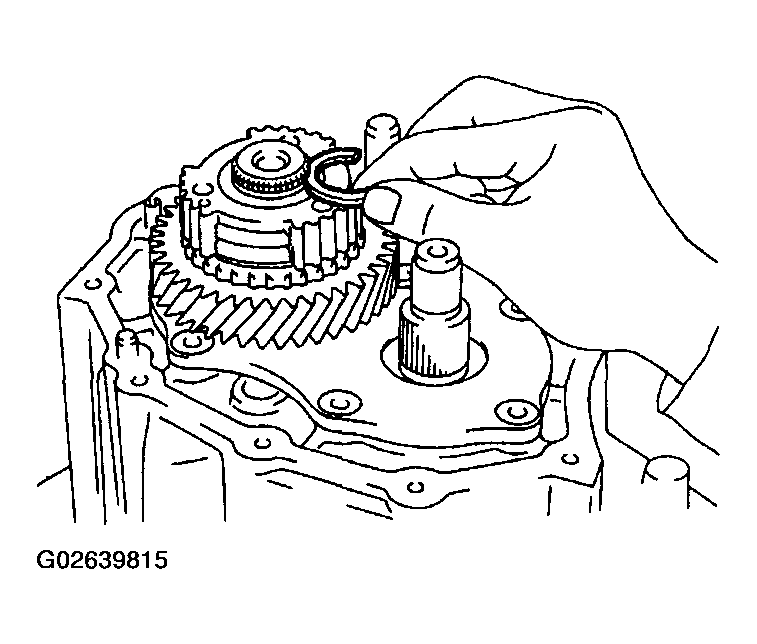

      Fig 11: Locating Snap Ring
      G02639815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the No. 3 clutch hub with the synchronizer ring and 5th gear.

      SST 09950-30012 (09951-03010, 09953-03010, 09954-03010)

      Fig 12: Removing Clutch Hub With Synchronizer Ring & 5th Gear
      G02639816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NEEDLE ROLLER BEARINGS
  21. REMOVE REAR BEARING RETAINER

    Using a Torx® socket wrench (T45), remove the 7 Torx® screws and rear bearing retainer.

    Sealant:

    Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  22. REMOVE SNAP RING
    1. Using a snap ring expander, remove the input shaft rear bearing snap ring.
    2. Using 2 screwdrivers and a hammer, remove the 2 snap rings.

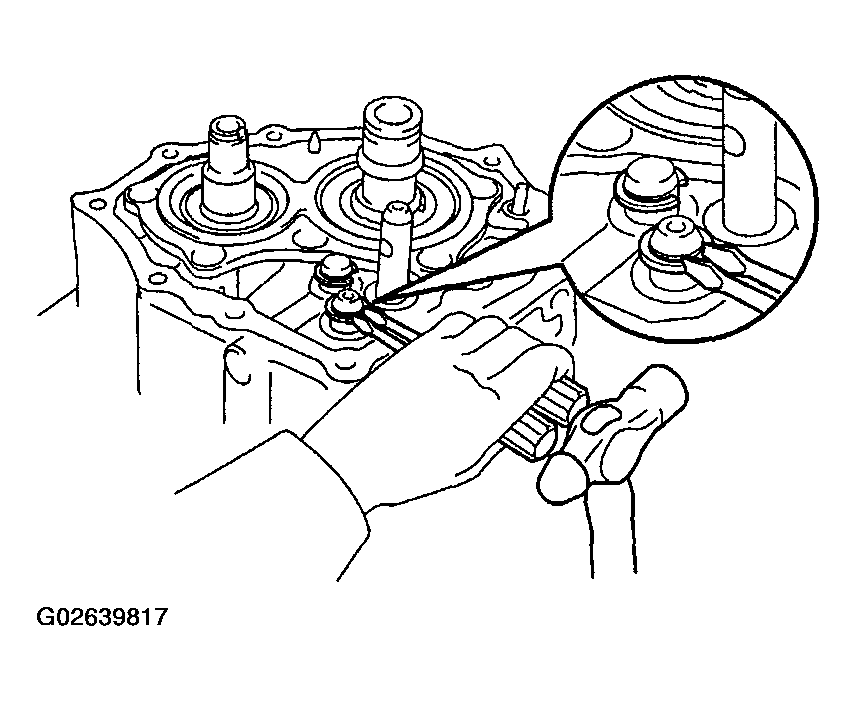

      Fig 13: Removing Snap Rings
      G02639817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE STRAIGHT SCREW PLUG

    Using a hexagon wrench (6 mm), remove the plug.

    Sealant:

    Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

    Torque: 25 N.m (250 kgf.cm, 18 ft.lbf)

    Fig 14: Removing Straight Screw Plug
    G02639818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REVERSE IDLER GEAR SHAFT LOCK BOLT AND WASHER

    Sealant:

    Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

    Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

    Fig 15: Removing Reverse Idler Gear Shaft Lock Bolt & Washer
    G02639819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE TRANSMISSION CASE
    1. Transaxle case side:

      Remove the 3 bolts.

    2. Transmission case side:

      Remove the 14 bolts and tap out the case with a plastic hammer.

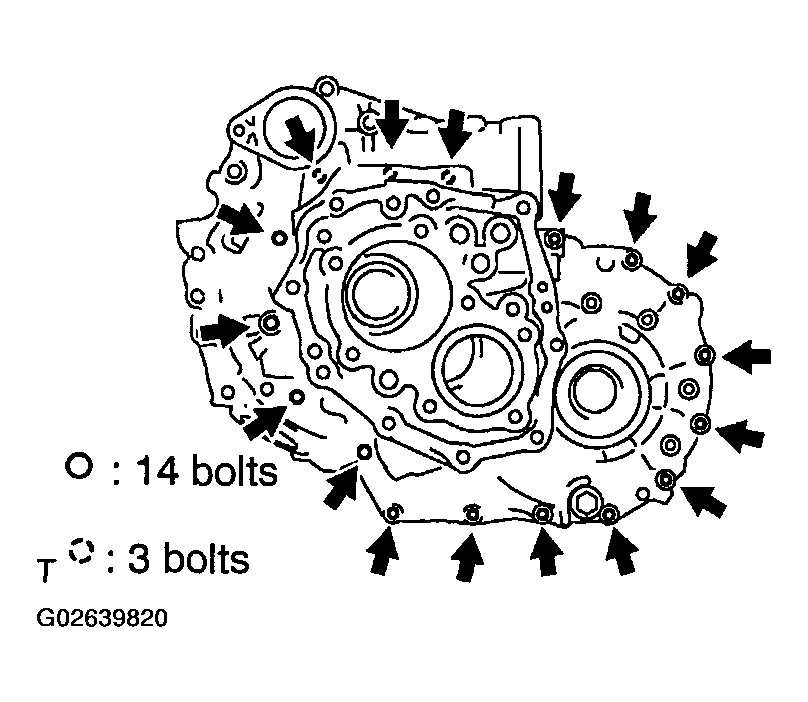

      Fig 16: Removing Bolts Of Transmission Case
      G02639820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      FIPG:

      Part No. 08826-00100, THREE BOND 1282B or equivalent

      Torque:

      29 N.m (300 kgf.cm, 21 ft.lbf) for transaxle case side 30 N.m (306 kgf.cm, 22 ft.lbf) for transmission case side

      Fig 17: Applying FIPG To Transmission Case
      G02639821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE SHIM

    HINT:

    At the time of reassembly, refer to the following item. Install the previously selected shim by adjusting output shaft preload (See REASSEMBLY ).

    Fig 18: Removing Shim
    G02639822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE OUTPUT SHAFT REAR BEARING OUTER RACE

    Using SST and a hammer, remove the output shaft rear bearing outer race.

    SST 09316-60011 (09316-00011)

    Fig 19: Removing Output Shaft Rear Bearing Outer Race
    G02639823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REVERSE SHIFT ARM BRACKET ASSEMBLY

    Remove the 2 bolts and pull off the reverse shift arm and bracket.

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  29. REMOVE REVERSE IDLER GEAR AND SHAFT

    Pull out the shaft, remove the reverse idler gear and thrust washer.

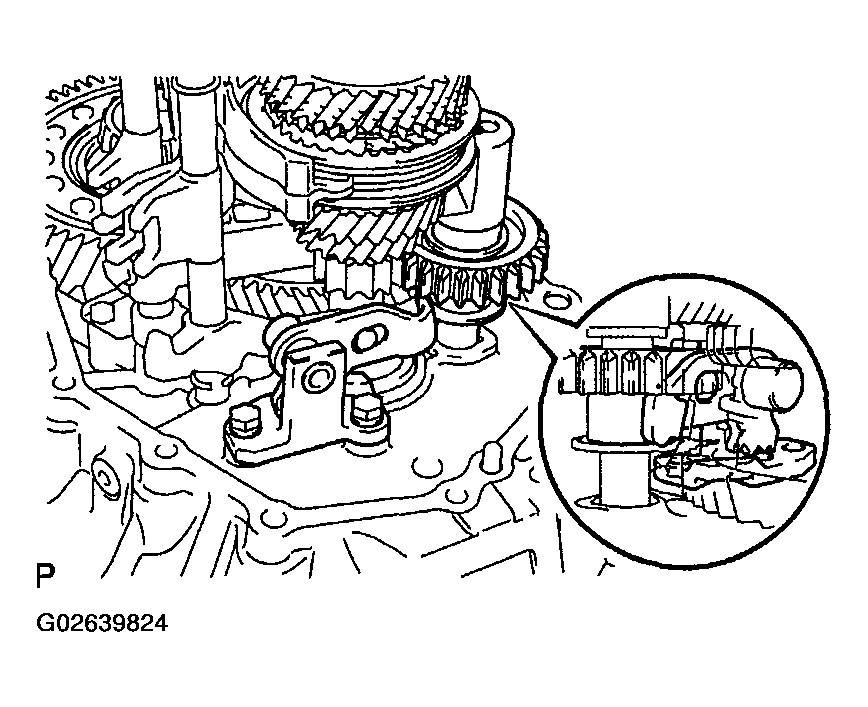

    Fig 20: Removing Reverse Idler Gear & Thrust Washer
    G02639824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    At the time of reassembly, refer to the following item. Align the matchmarks, as shown, see Fig 21.

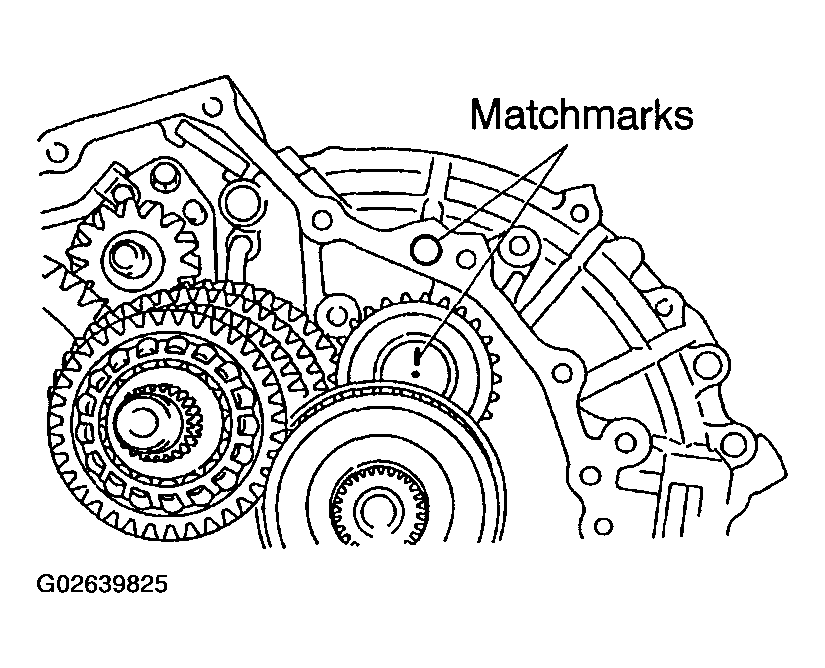

    Fig 21: Locating Matchmarks
    G02639825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE STRAIGHT SCREW PLUGS

    Using a hexagon wrench (6 mm), remove the 2 plugs.

    Sealant:

    Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

    Torque: 25 N.m (250 kgf.cm, 18 ft.lbf)

    Fig 22: Removing Straight Screw Plugs
    G02639826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE 3 SHIFT FORK SET BOLTS

    Torque: 24 N.m (240 kgf.cm, 17 ft.lbf)

  32. REMOVE NO. 1 SHIFT FORK SHAFT

    Pull up the No. 3 shift fork shaft, remove the No. 1 shift fork shaft.

    HINT:

    At the time of reassembly, refer to the following item. When it is difficult to push the fork shaft through the reverse shift fork, pull up the No. 3 shift fork shaft.

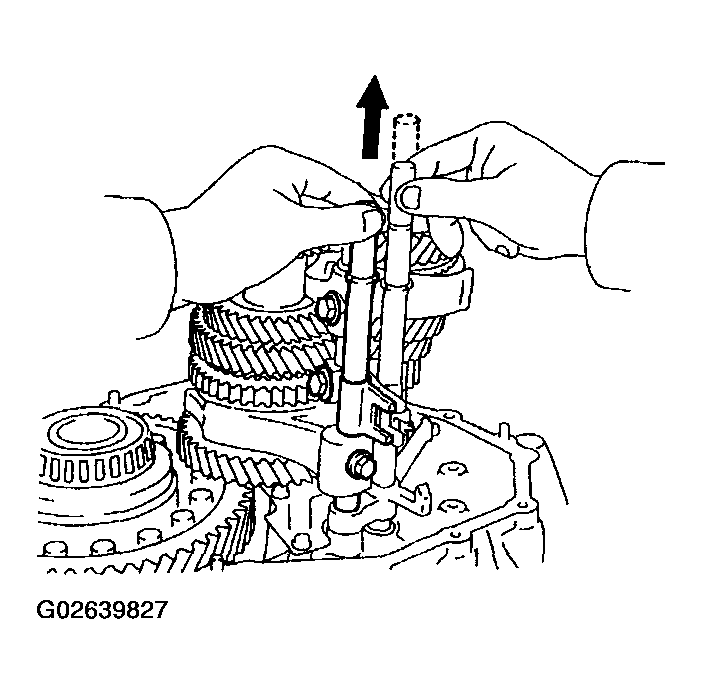

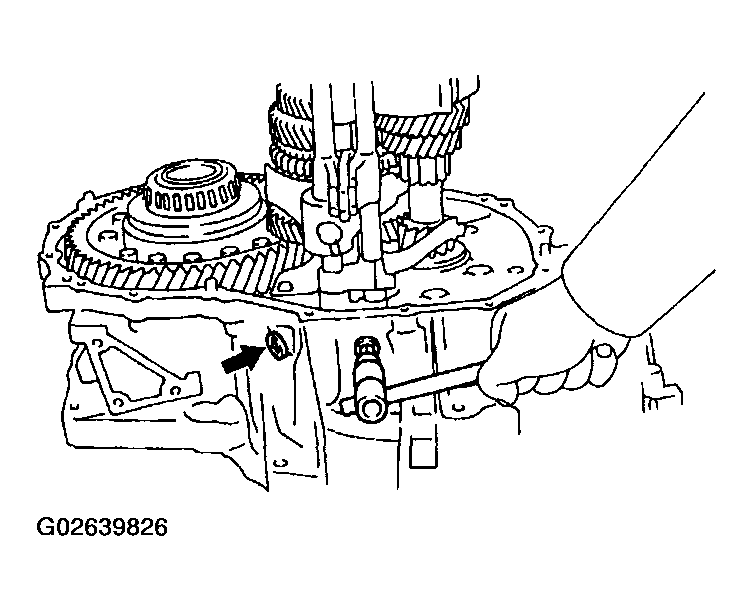

    Fig 23: Pulling Up No. 3 Shift Fork Shaft
    G02639827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

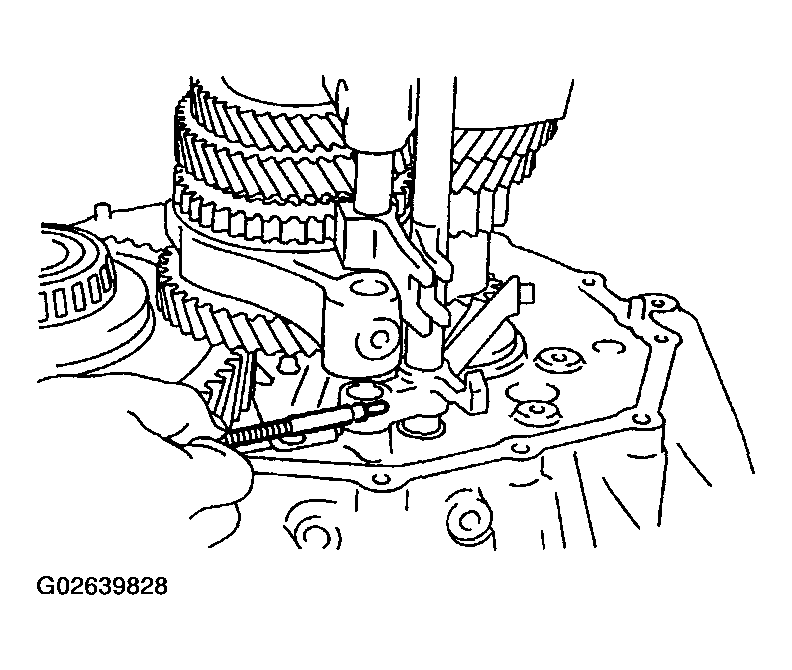

  33. REMOVE INTERLOCK ROLLER

    Using a magnetic finger, remove the interlock roller from the reverse shift fork.

    Fig 24: Removing Interlock Roller From Reverse Shift Fork
    G02639828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 2 SHIFT FORK SHAFT, SHIFT HEAD AND NO. 1 SHIFT FORK
    1. Pull out the No. 2 shift fork shaft.
    2. Remove the shift head and No. 1 shift fork.

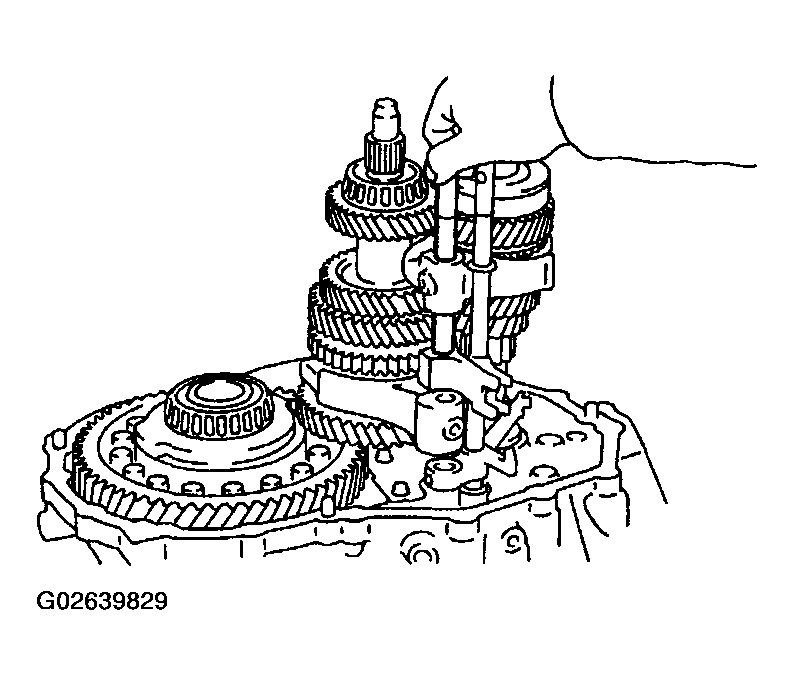

      Fig 25: Removing No. 2 Shift Fork Shaft, Shift Head & No. 1 Shift Fork
      G02639829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 3 SHIFT FORK SHAFT WITH REVERSE SHIFT FORK AND NO. 2 SHIFT FORK
    1. Pull out the No. 3 shift fork shaft with the reverse shift fork.
    2. Remove the No. 2 shift fork.
  36. REMOVE SNAP RING
    1. Using 2 screwdrivers and a hammer, remove the snap ring and reverse shift fork from the No. 3 shift fork shaft.
    2. Using 2 screwdrivers and a hammer, remove the snap rings from the No. 1, No. 2 and No. 3 shift fork shafts.

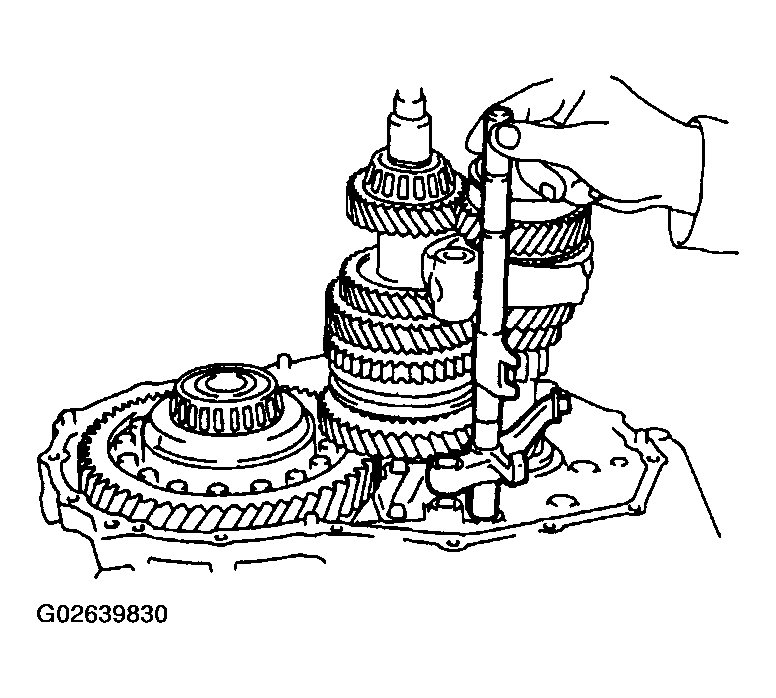

      Fig 26: Removing Snap Rings
      G02639830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE INPUT AND OUTPUT SHAFTS ASSEMBLY
    1. Leaning the output shaft to the differential side, remove the input shaft assembly.
    2. Lift up the differential case assembly, remove the output shaft assembly.
  38. REMOVE DIFFERENTIAL CASE ASSEMBLY
  39. REMOVE MAGNET FROM TRANSAXLE CASE
  40. REMOVE 2 BOLTS, NO. 1 AND NO. 2 OIL RECEIVER PIPES

    Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

  41. REMOVE STRAIGHT SCREW PLUG FROM TRANSAXLE CASE

    Sealant:

    Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

    Torque: 25 N.m (250 kgf.cm, 18 ft.lbf)

  42. REMOVE NO. 5 SYNCHRONIZER RING WITH KEY SPRING FROM NO. 3 CLUTCH HUB
    1. Remove the No. 5 synchronizer ring with the key spring from the No. 3 clutch hub.
    2. Using a screwdriver, remove the snap ring.

      HINT:

      Wrap vinyl tape on the screwdriver to prevent damaging the synchronizer ring.

    3. Remove the synchronizer rings.
      Fig 27: Removing Snap Ring From Synchronizer
      G02639831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
