Shift Lever And Control Cable: Components

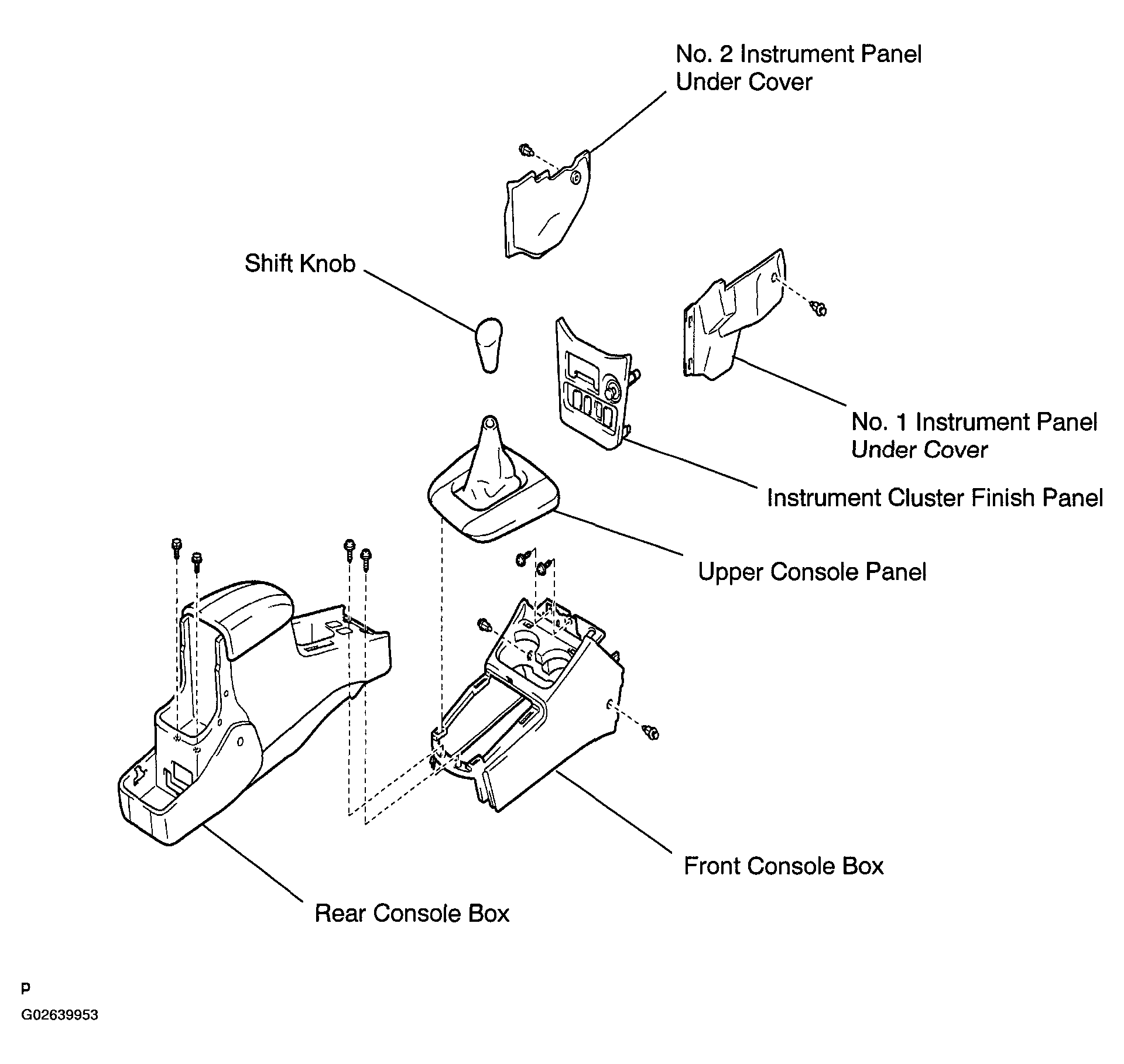

Fig 1: Exploded View Of Shift Lever & Console Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

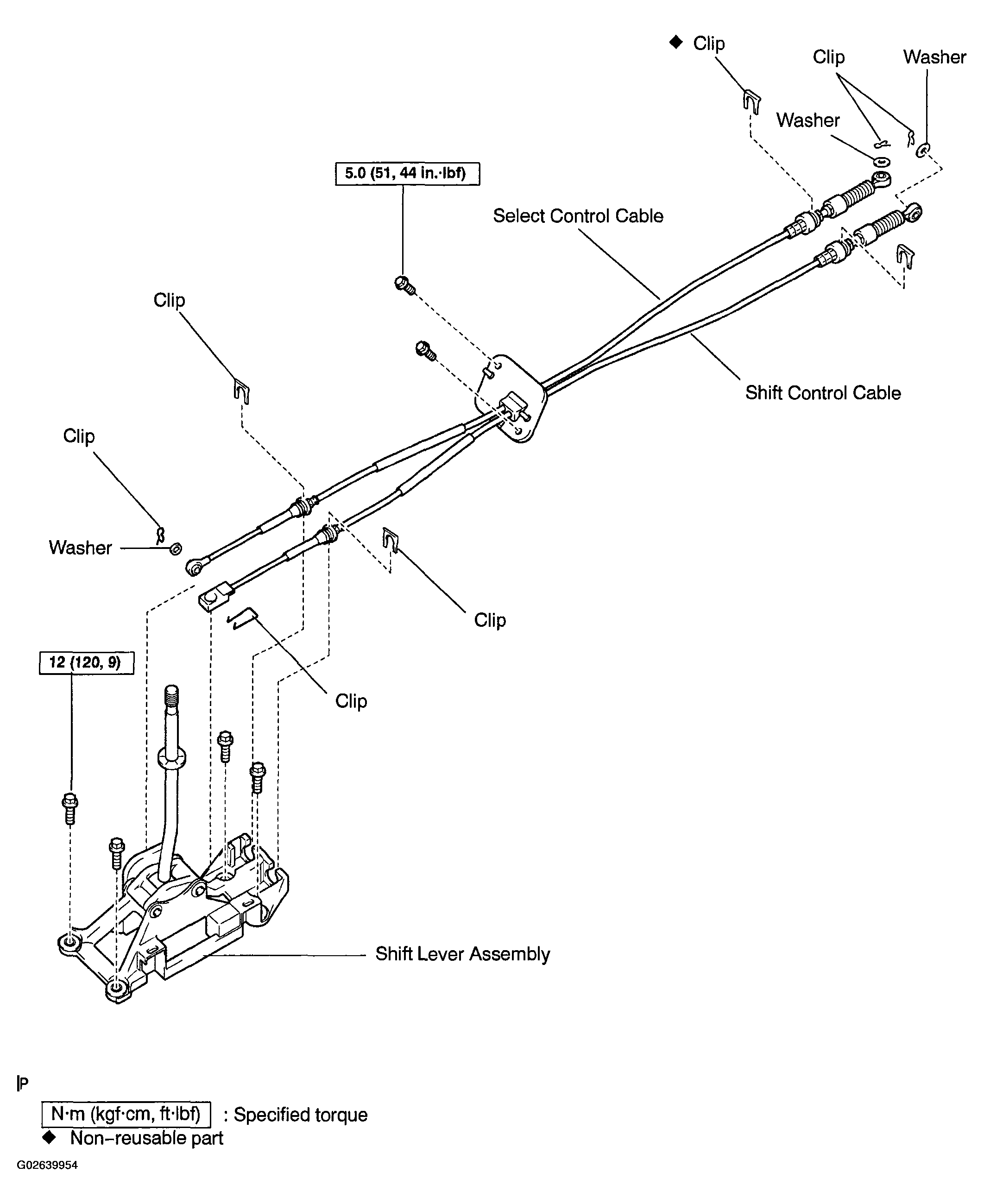

Fig 2: Exploded View Of Shift Lever & Control Cable & Torque Specifications
