Transfer (4WD): Components

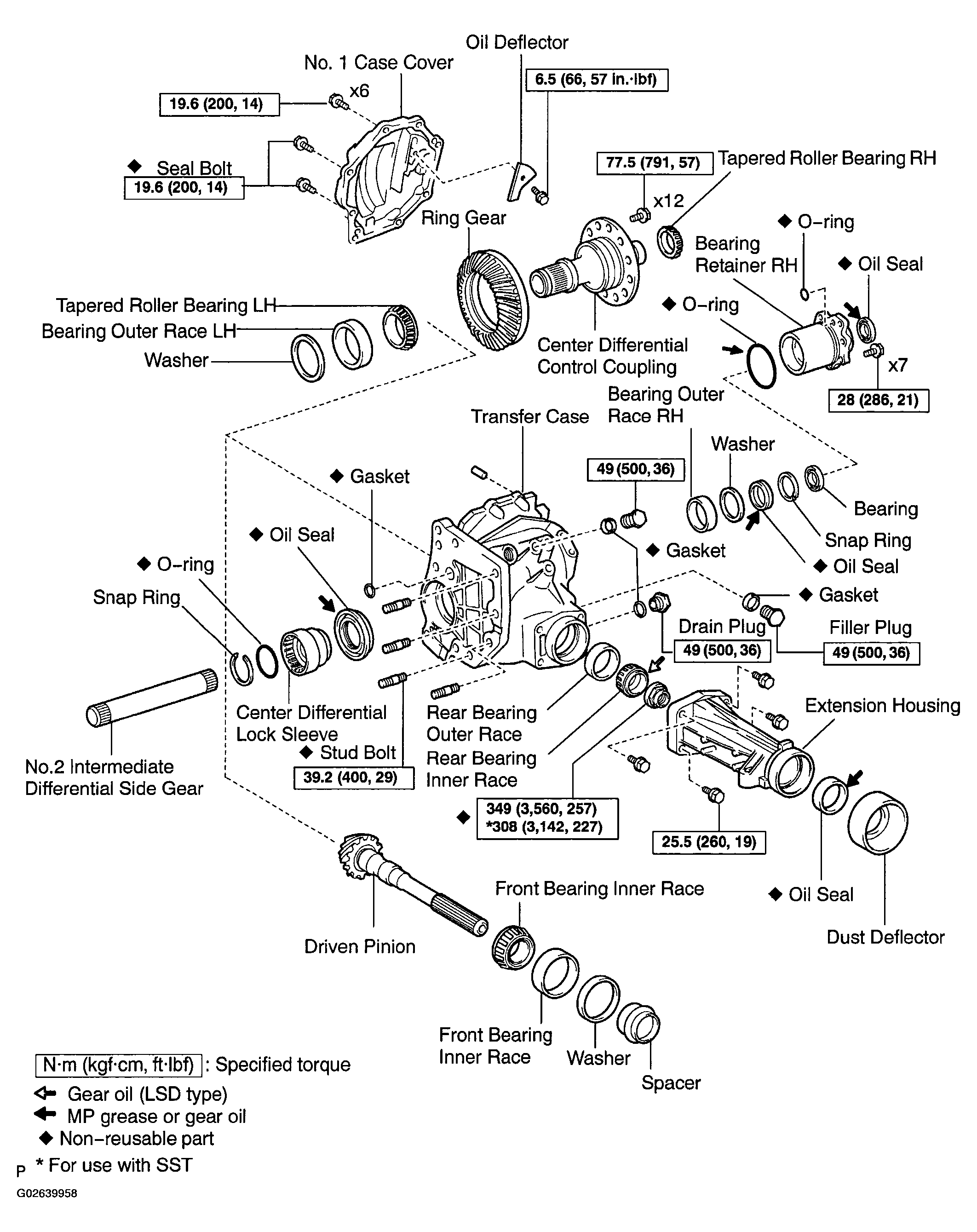

Fig 1: Exploded View Of Transfer & Torque Specifications (4WD)
G02639958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
