Combination Meter: Location

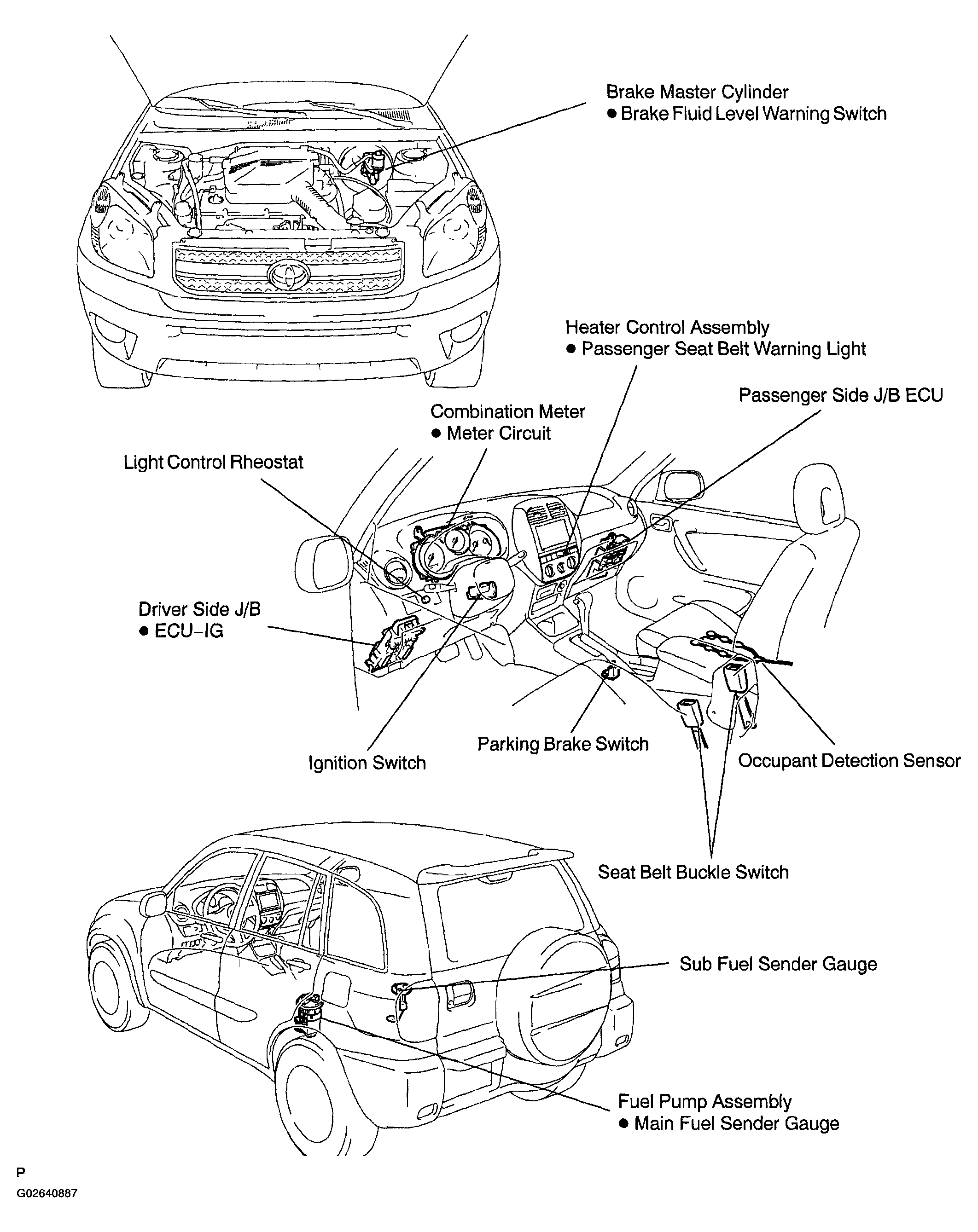

Fig 1: Identifying Component Location Of Combination Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

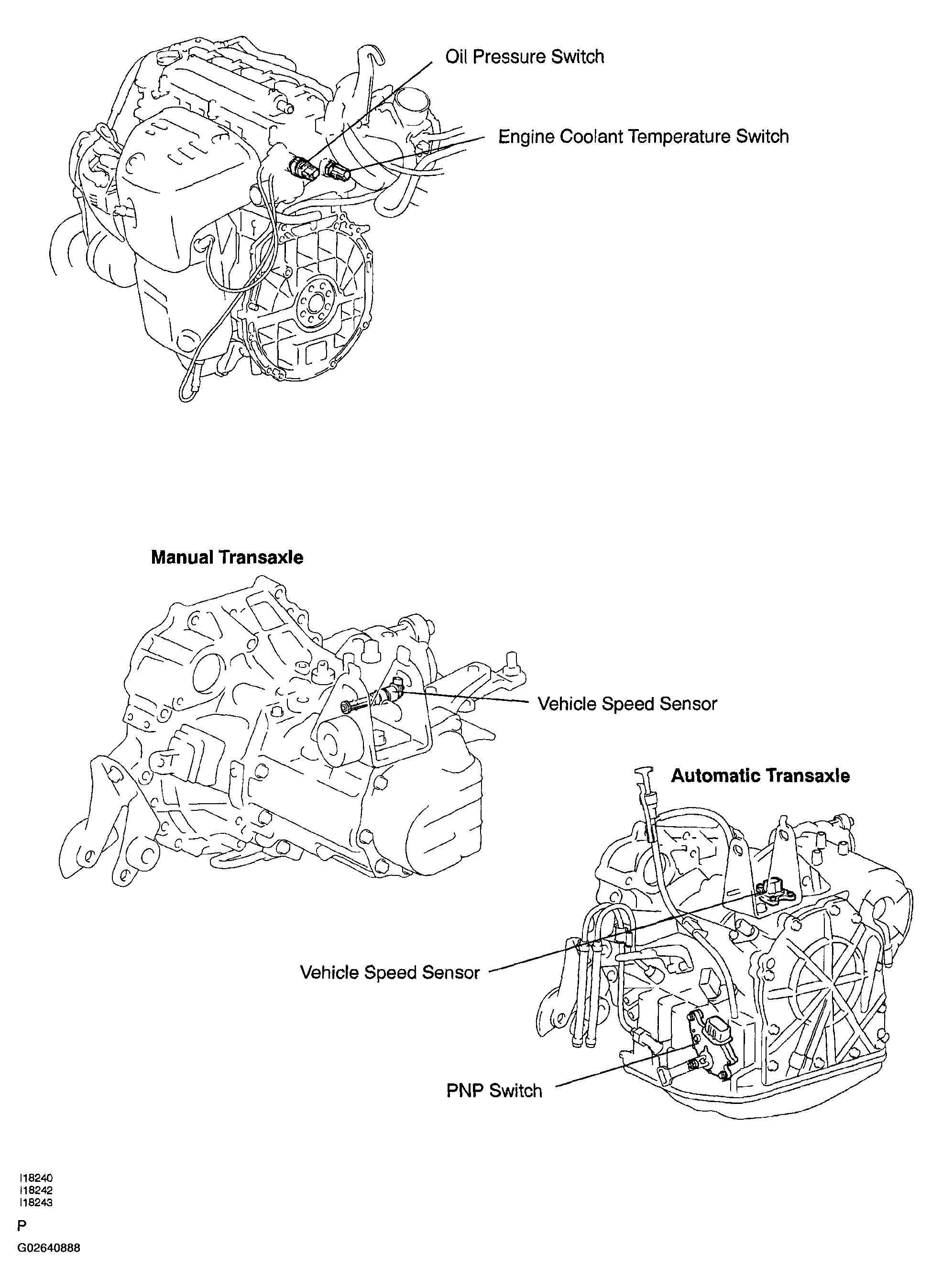

Fig 2: Identifying Engine Compartment Sensors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
