Secondary Air Injection System: Components

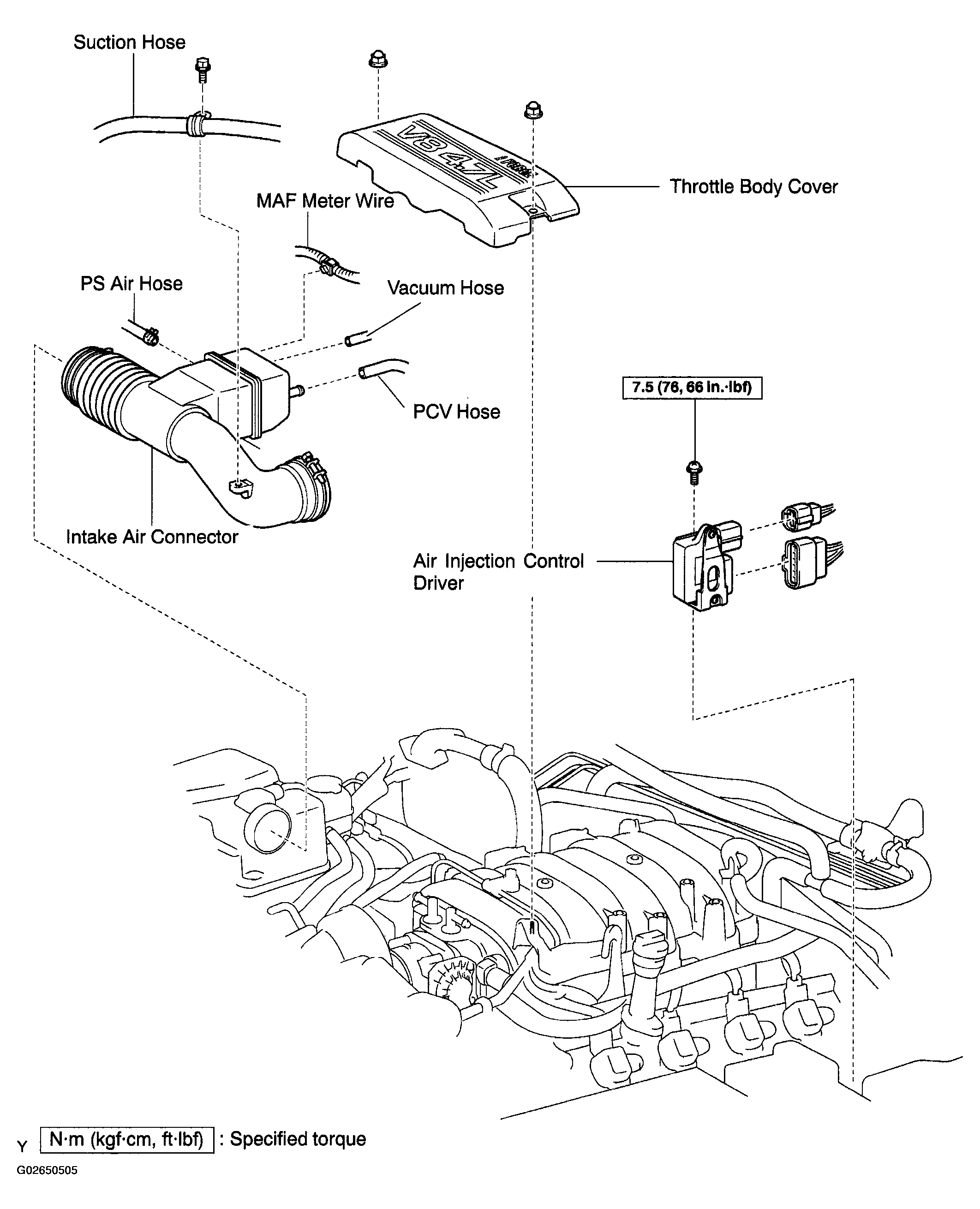

Fig 1: Identifying Secondary Air Injection System Components (1 Of 3)
G02650505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

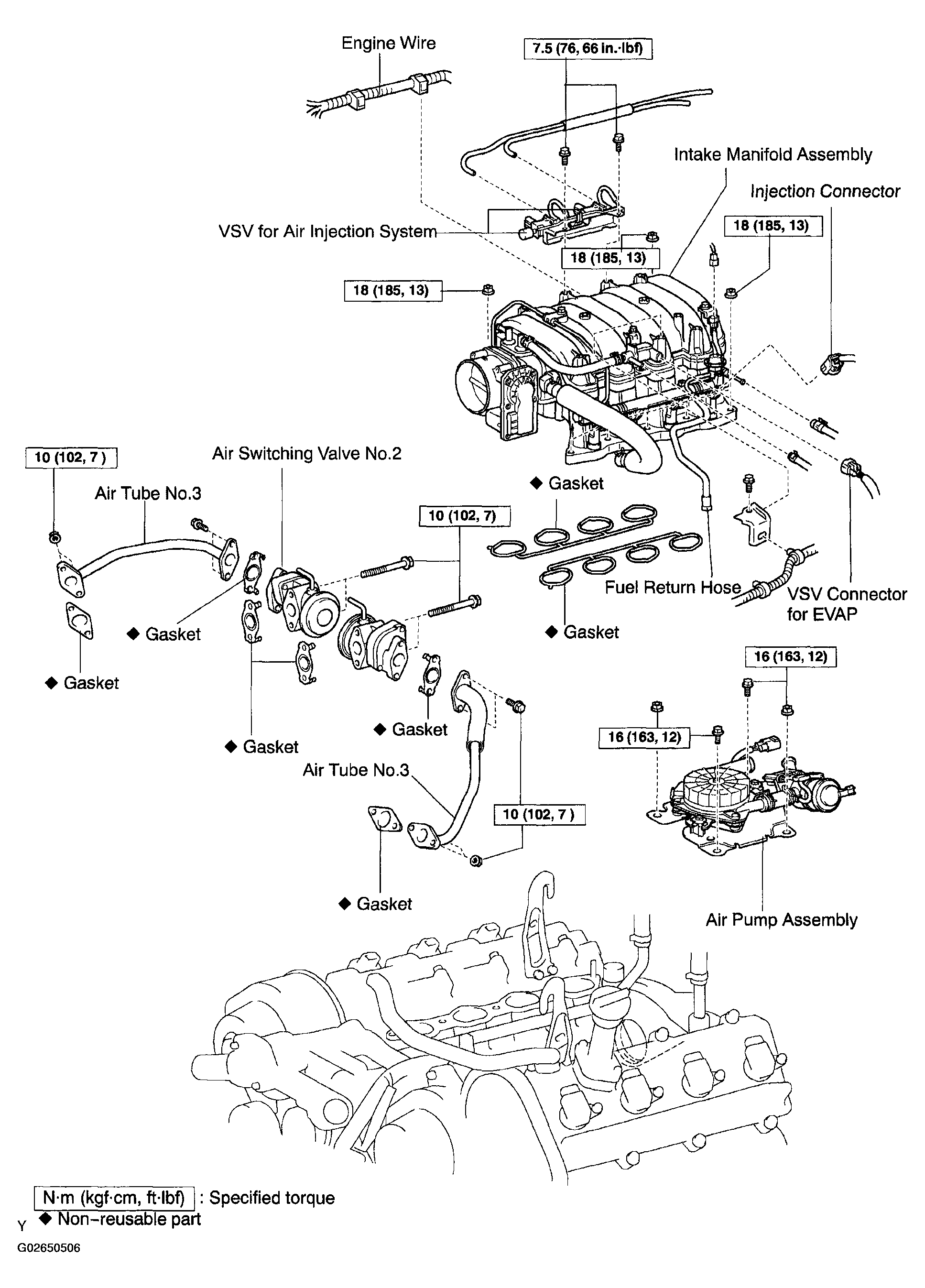

Fig 2: Identifying Secondary Air Injection System Components (2 Of 3)
G02650506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

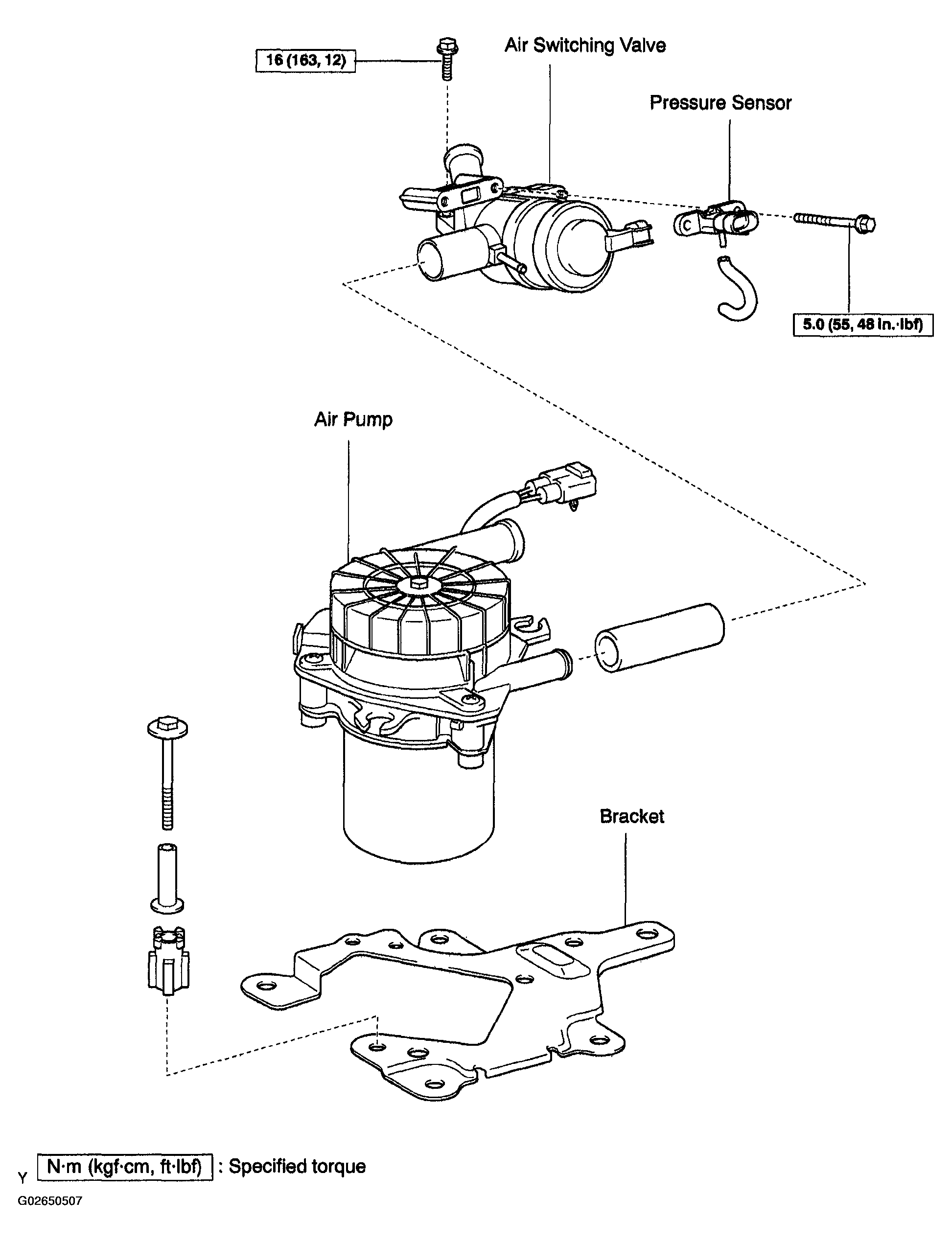

Fig 3: Identifying Secondary Air Injection System Components (3 Of 3)
G02650507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
