Back Door Power Window Control System
›
Location
Back Door Power Window Control System: Location

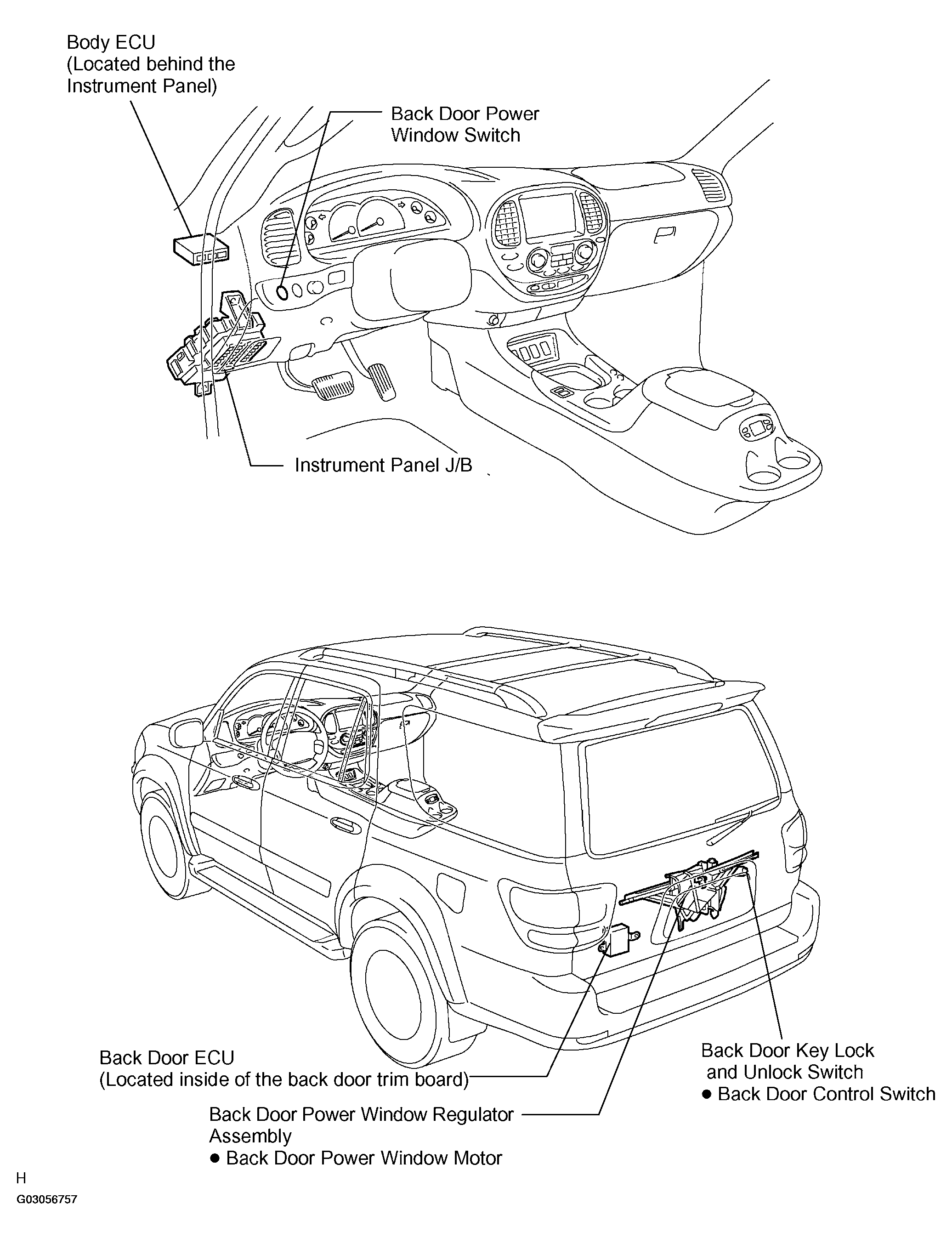

Fig 1: Identifying Back Door Power Window Control System Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
