Air-Fuel Ratio (A/F) Sensor
›
Components
Air-Fuel Ratio (A/F) Sensor: Components

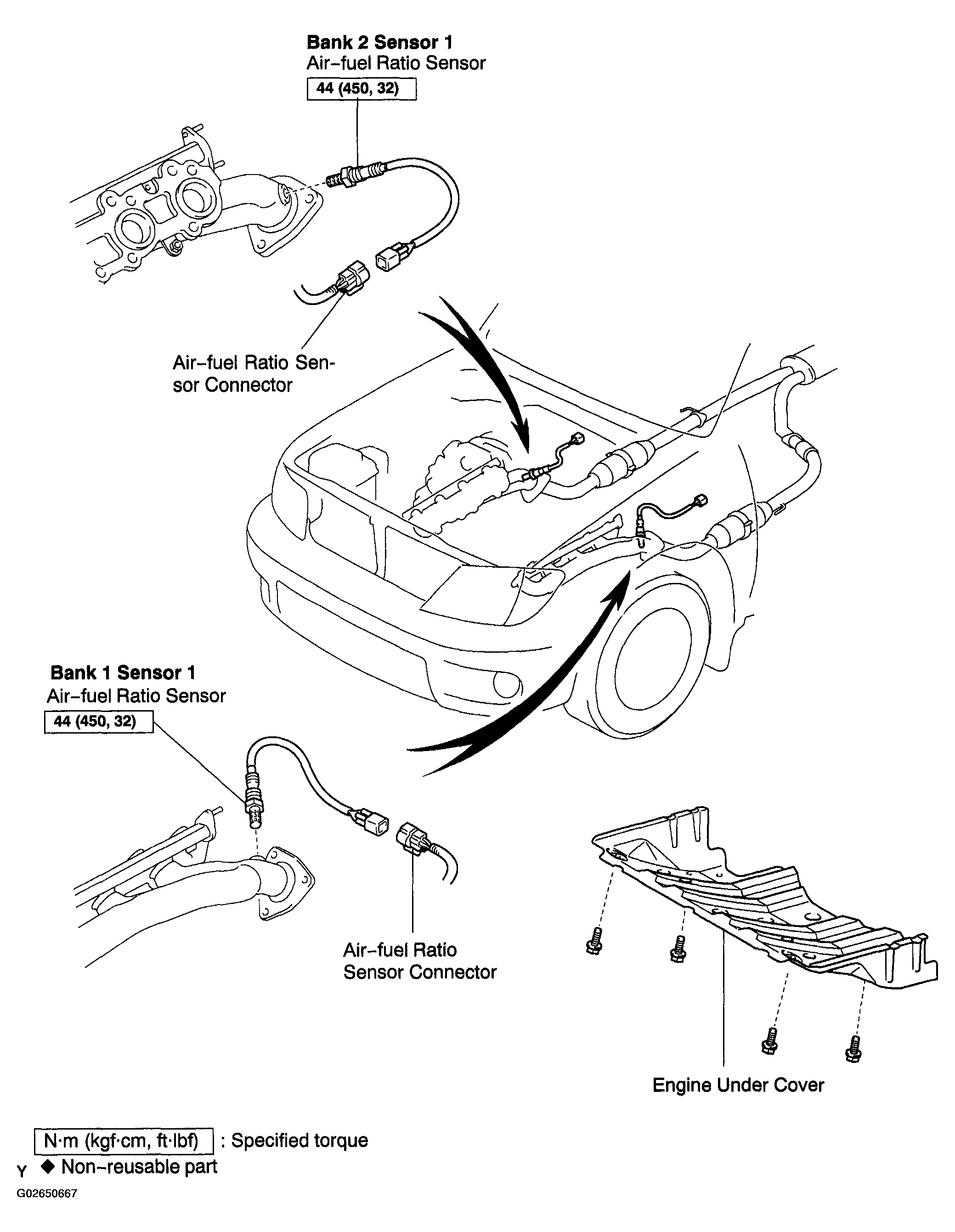

Fig 1: Identifying Air-Fuel Ratio (A/F) Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
