Fuel Pressure Regulator
›
Components
Fuel Pressure Regulator: Components

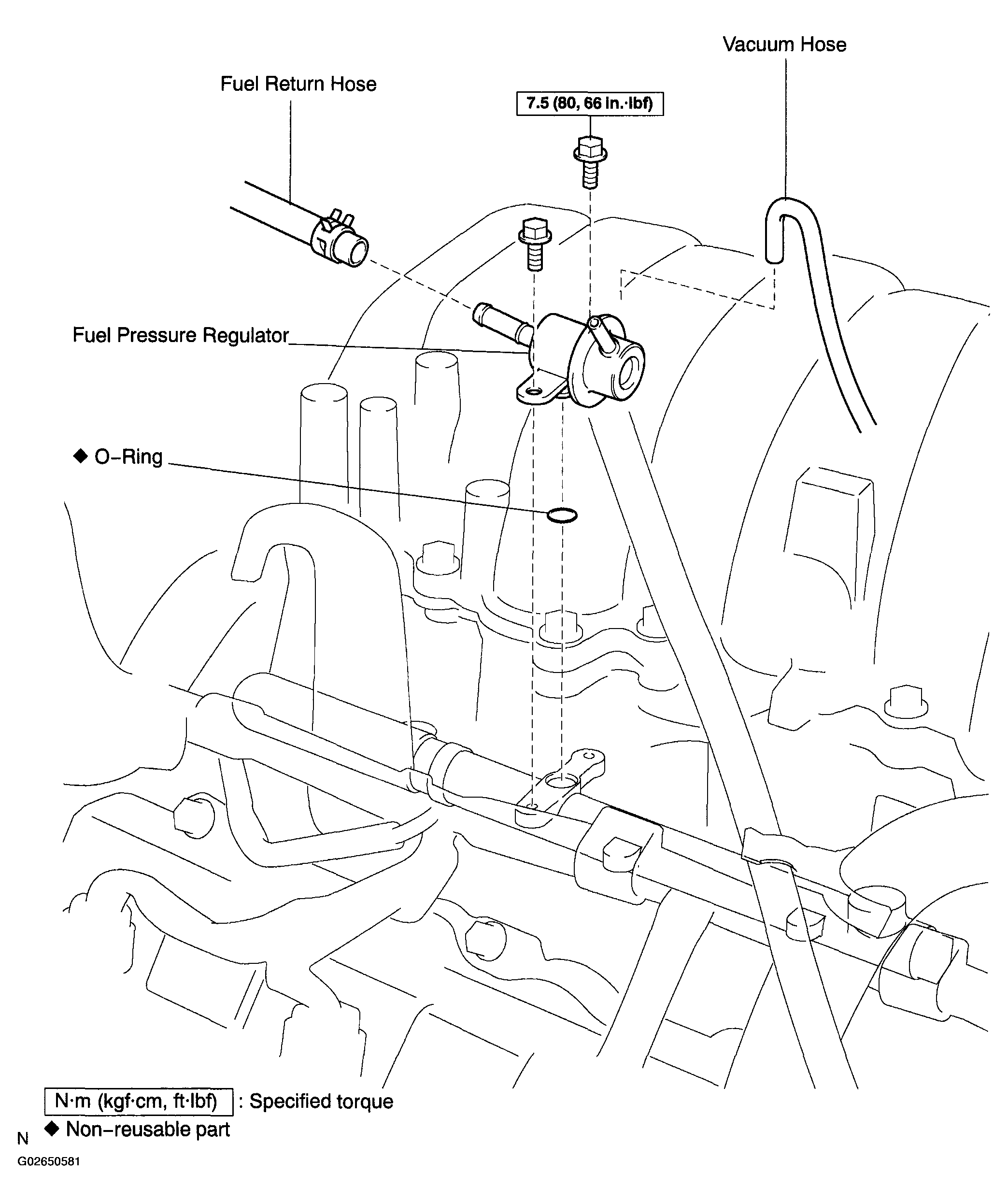

Fig 1: Identifying Fuel Pressure Regulator Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
