Camshaft Position Sensor: Removal

  1. DRAIN ENGINE COOLANT
  2. REMOVE DRIVE BELT (See  REMOVAL  )
  3. REMOVE LH NO. 3 TIMING BELT COVER (See  REMOVAL  )
  4. REMOVE CAMSHAFT POSITION SENSOR

    Remove the bolt, stud bolt and camshaft position sensor.

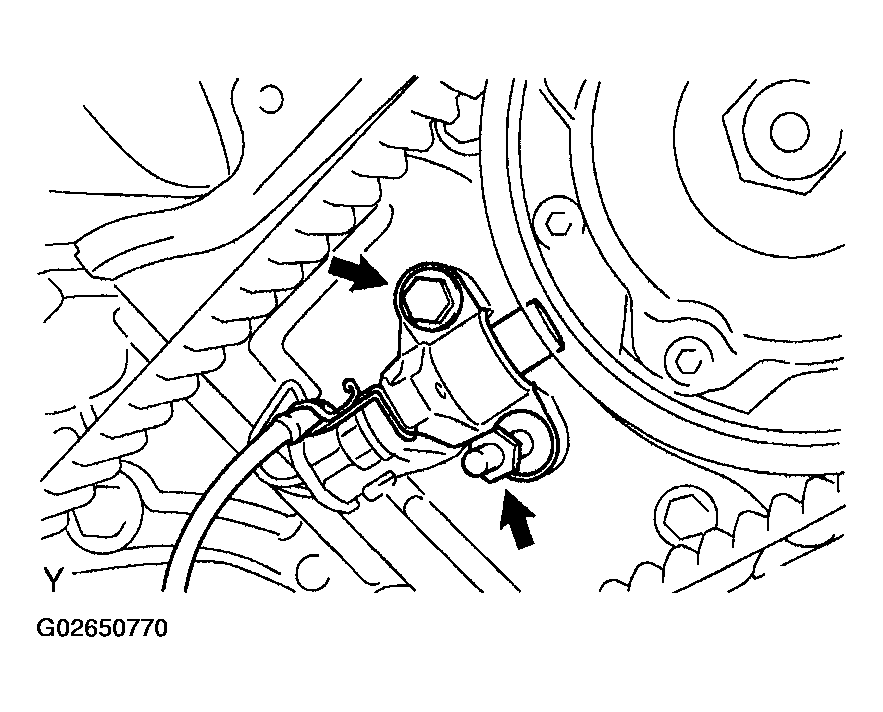

    Fig 1: Removing Camshaft Position Sensor
    G02650770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
