IACV Control Circuit: Wiring Diagram

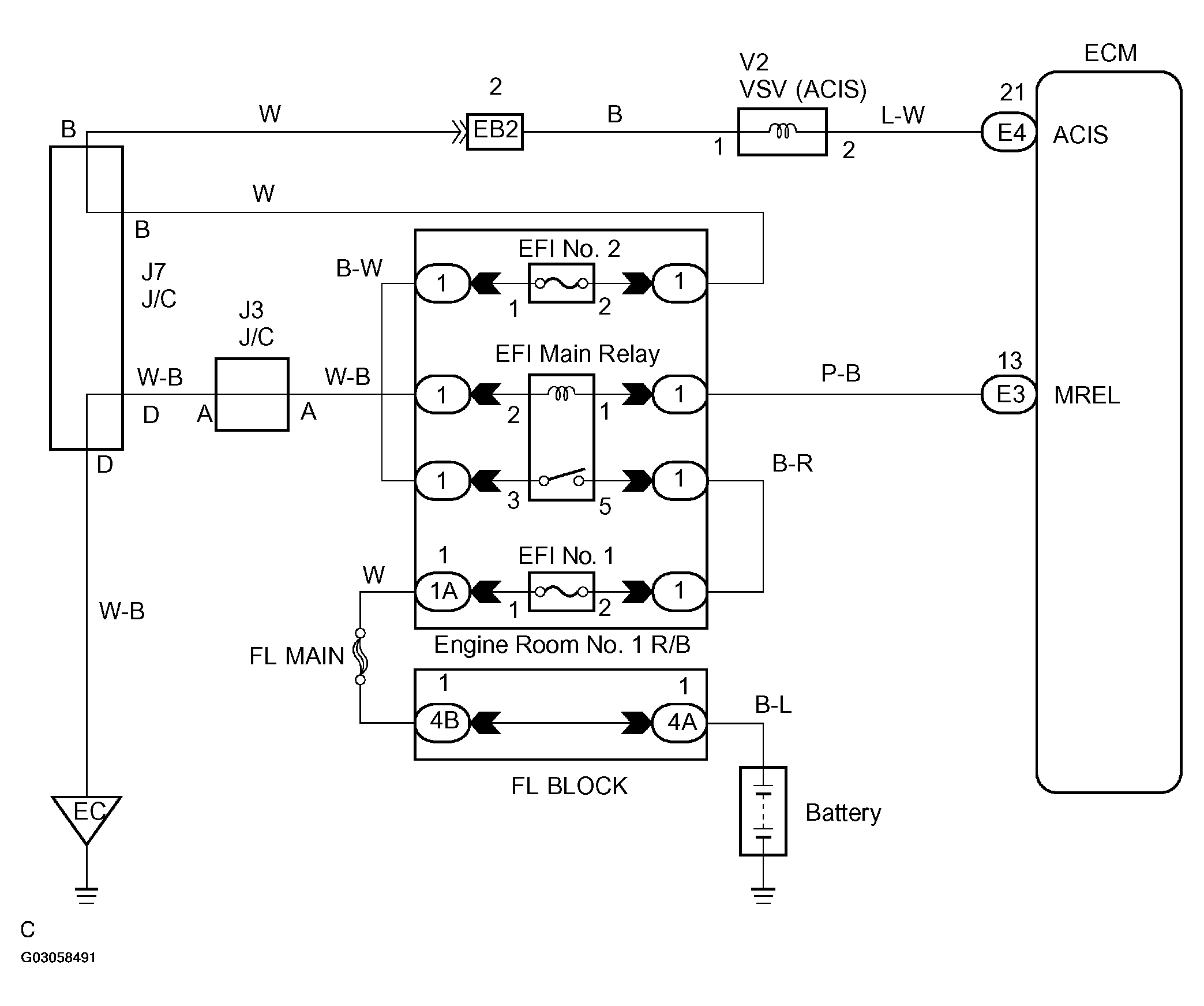

Fig 1: IACV Control Wiring Diagram

G03058491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
