Engine - Diagnostics: Location

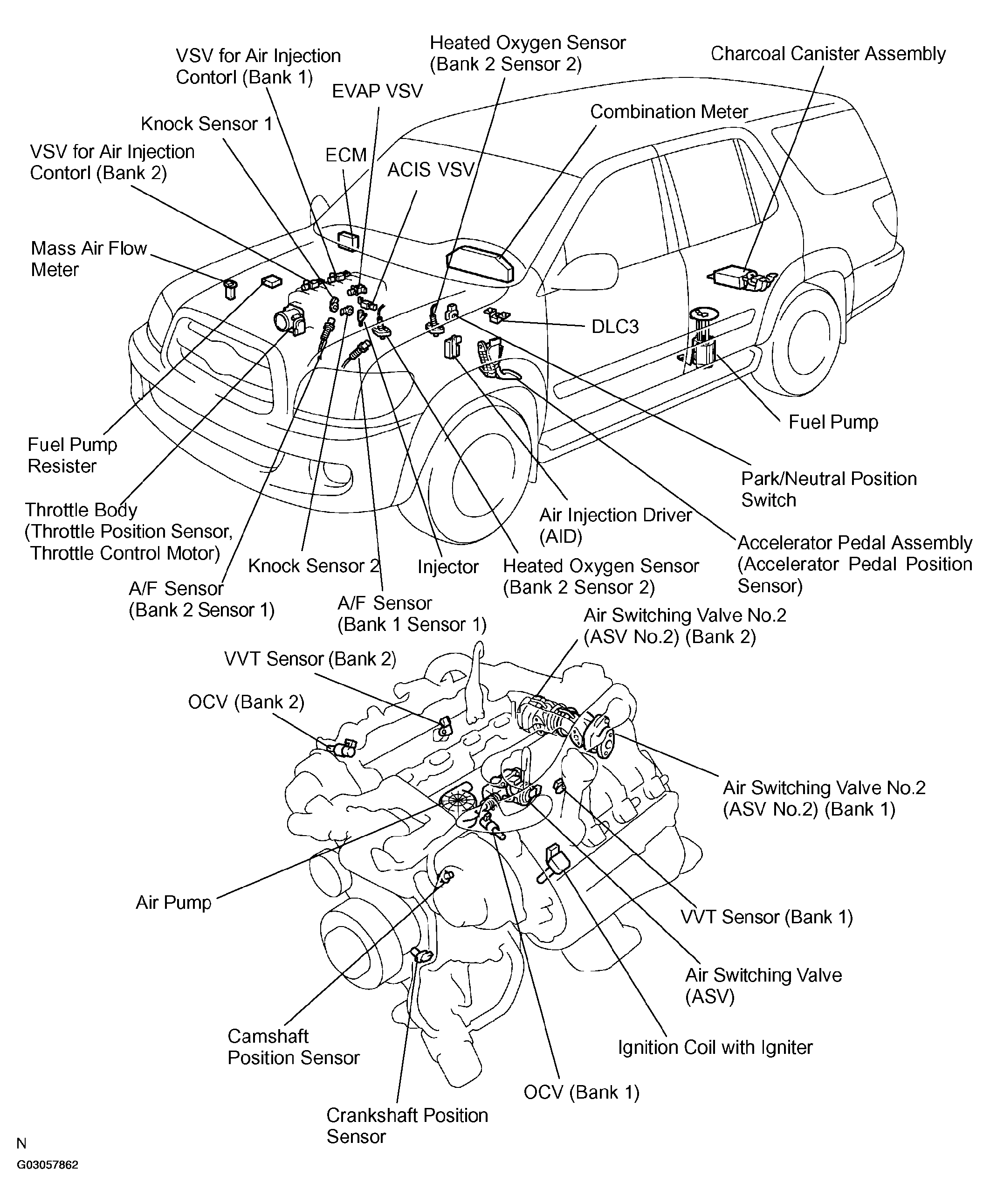

Fig 1: Identifying Engine Components Location
G03057862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
