Waveform 4

1. VVT sensor bank 1
2. VVT sensor bank 2
3. Crankshaft position sensor
   Fig 1: Sensor Bank Description Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as the engine RPM increases.

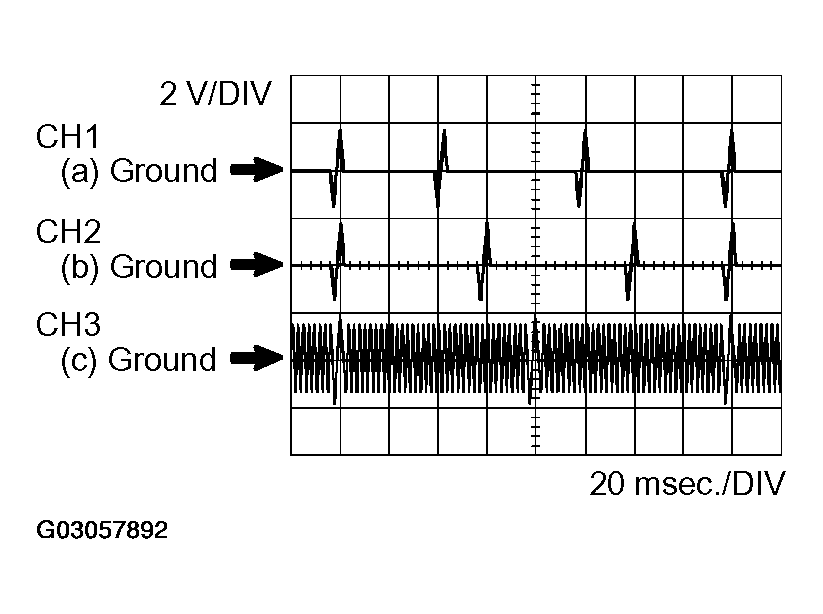

Fig 2: VVT Sensor Bank - Waveform

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
