Power Window Control System (W/Jam Protection) - Diagnostics
›
Manual Up/Down Function Does Not Operate At Rear RH
›
Wiring Diagram
Manual Up/Down Function Does Not Operate At Rear RH: Wiring Diagram

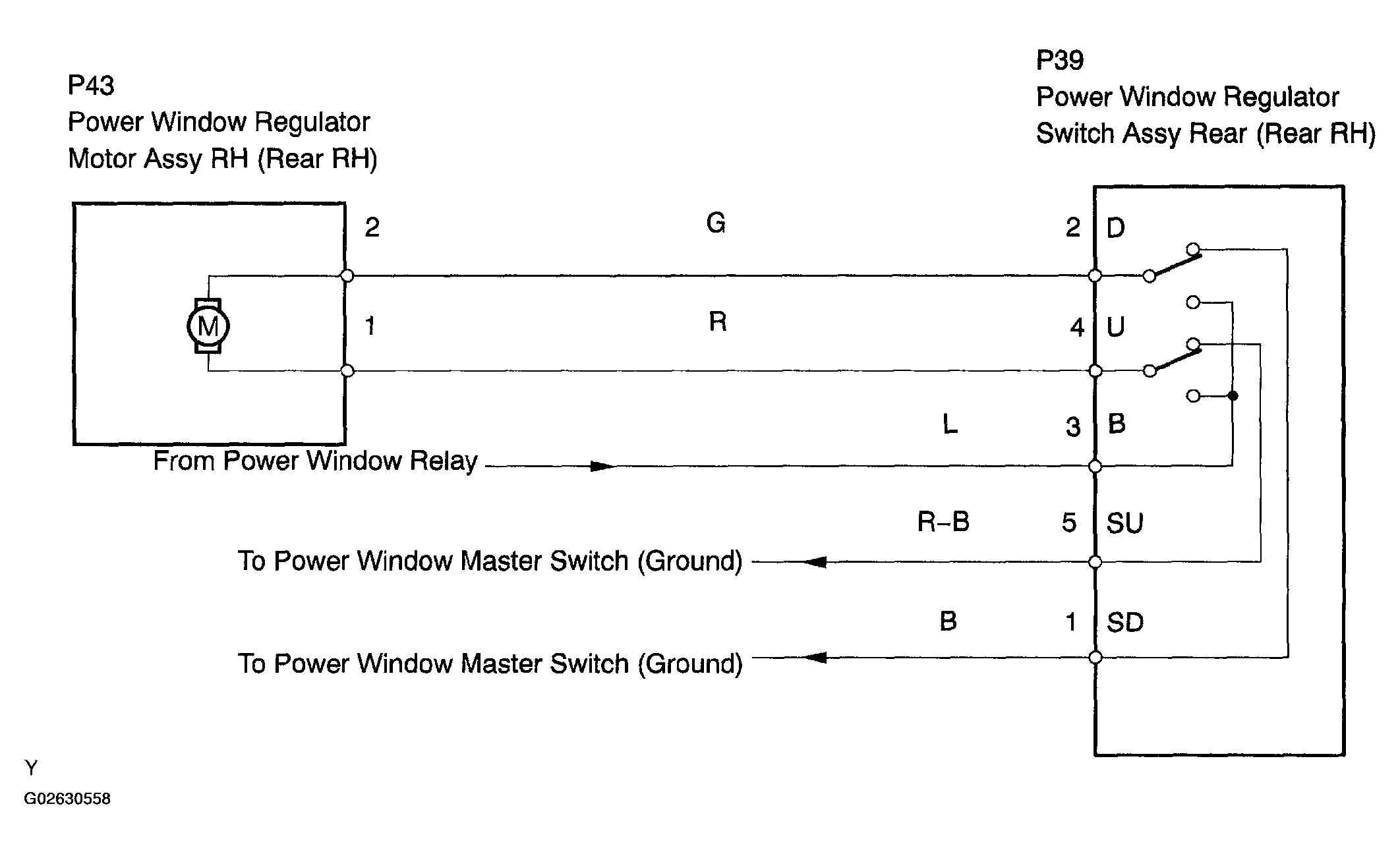

Fig 1: Wiring Diagram - Manual Up/Down Function Does Not Operate At Rear RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
