Power Window Control System (W/Jam Protection) - Diagnostics
›
Power Windows Do Not Operate At All
›
Wiring Diagram
Power Windows Do Not Operate At All: Wiring Diagram

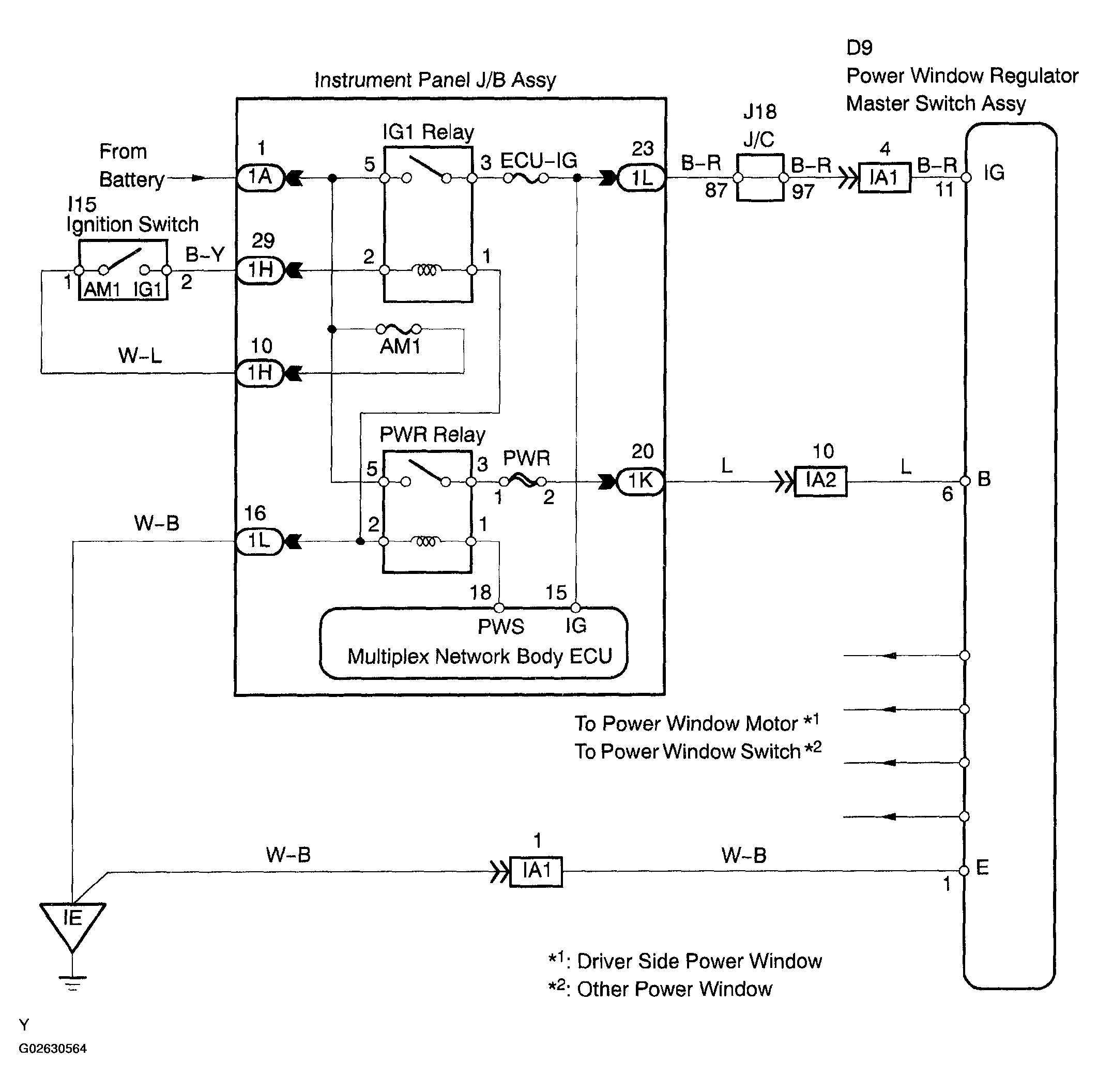

Fig 1: Wiring Diagram - Power Windows Do Not Operate At All
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
