ACIS Control Circuit: Wiring Diagram

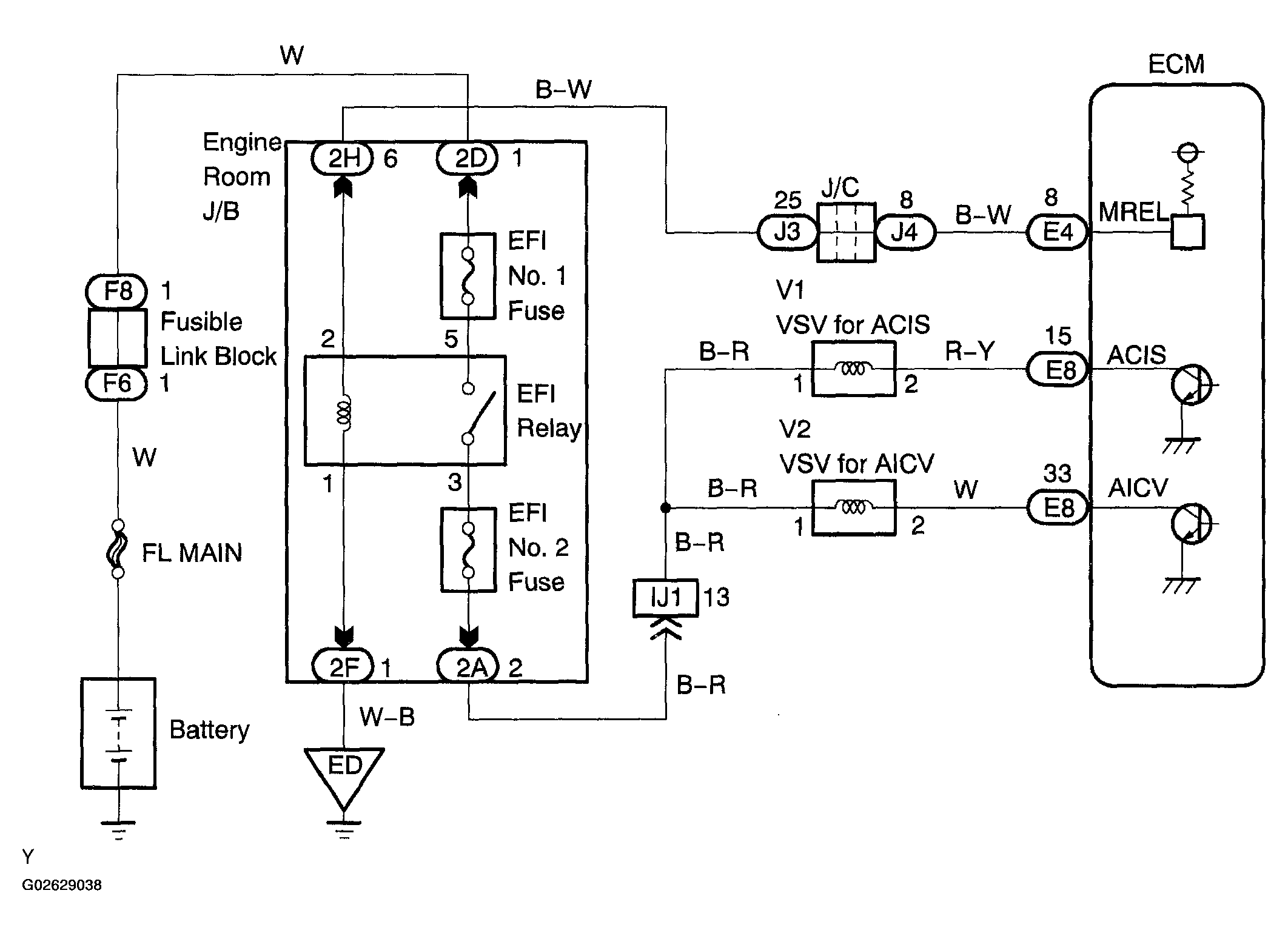

Fig 1: Wiring Diagram - ACIS Control System
G02629038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
