EVAP Inspection Procedure
›
Monitor Description
›
LEV II EVAP Monitor Sequence
LEV II EVAP Monitor Sequence

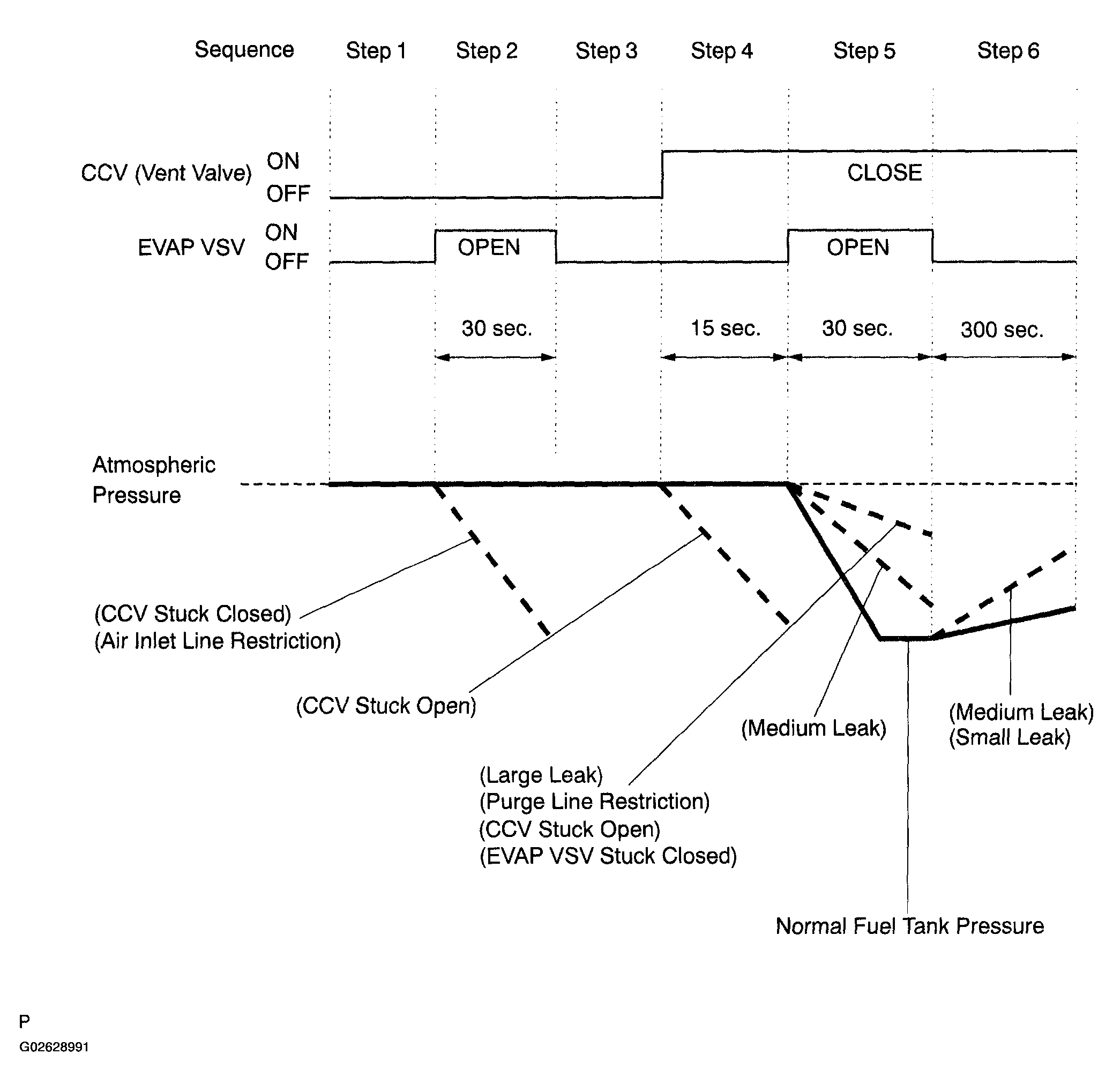

Fig 1: LEV II EVAP Monitor Sequence Blinking Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
